Semi-automatic Lithium-ion Battery Pack Assembly Line For UAV/Drone Battery
Semi-automatic Lithium-ion Battery Pack Assembly Line For UAV/Drone Battery
Specifications
Brand Name :
ACEY
Model Number :
ACEY-CAL-UAV
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2000~80000/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Assembly Line Type :
Semi-automatic
Battery Type :
Cylindrical Lithium Battery(18650/21700/26650/32650/32700)
Application :
Drones / Power Tools / UPS / AGV / AMR/ etc
Production Capacity :
Customization
Description
Semi-automatic Lithium-ion Battery Pack Assembly Line For UAV/Drone Battery
This semi-automatic assembly line is specifically engineered for high-performance UAV (Unmanned Aerial Vehicle)/Drone battery packs. Given the unique requirements of drone batteries—high discharge rates, lightweight construction, and extreme reliability—our production line integrates precision cell capacity grading, sorting, and advanced welding technologies to ensure every pack meets rigorous flight safety standards.
Assembly Process Flow
Cell capacity grading → Insulation paper pasting → Cell voltage & IR sorting → CCD testing → Battery pack spot welding → BMS testing → Battery pack comprehensive testing → Shrink film packaging → Inkjet code printing → Battery pack aging testing
Main Process Sections
  • Cell Testing & Sorting: High-precision OCV (Open Circuit Voltage) and IR (Internal Resistance) testing to ensure cell consistency, which is critical for drone flight stability.
  • Automatic Insulation Paper Pasting: Protects the positive terminal of cylindrical cells to prevent short circuits during high-vibration flight.
  • CCD Polarity Inspection: Visual recognition system to prevent manual misplacement of cells before welding.
  • Precision Spot Welding: Equipped with high-frequency DC or Transistor welding power sources for consistent, low-resistance connections.
  • BMS Testing & Integration: Verifies the protection board's functions (overcharge, over-discharge, overcurrent).
  • Battery Pack Comprehensive Testing: Final verification of voltage, resistance, and discharge performance.
Key Applications
  • Agricultural Spraying Drones
  • FPV Racing & Photography Drones
  • Industrial Inspection UAVs
  • Delivery & Logistics Drones
Key Features & Advantages
  • Modular & Flexible Design: Standalone machines allow customizable configurations to meet diverse process requirements.
  • Easy Operation & Maintenance: Simple machine structure enables quick troubleshooting, low maintenance costs, and short operator training cycles.
  • Flexible Production: Easy to switch between different pack configurations (6S, 12S, 14S) and cell types (18650, 21700, or Pouch cells).
  • Data Traceability: Support for MES system integration to track every cell's data for quality control.
  • Lower Initial Investment: Compared to fully automated lines, the semi-automatic solution requires lower capital expenditure, ideal for small-to-medium batch production.
  • Scalable & Upgradable: Supports phased capacity expansion and future upgrades to full automation, reducing initial investment risks.
Main Product Specifications
Product Name Description

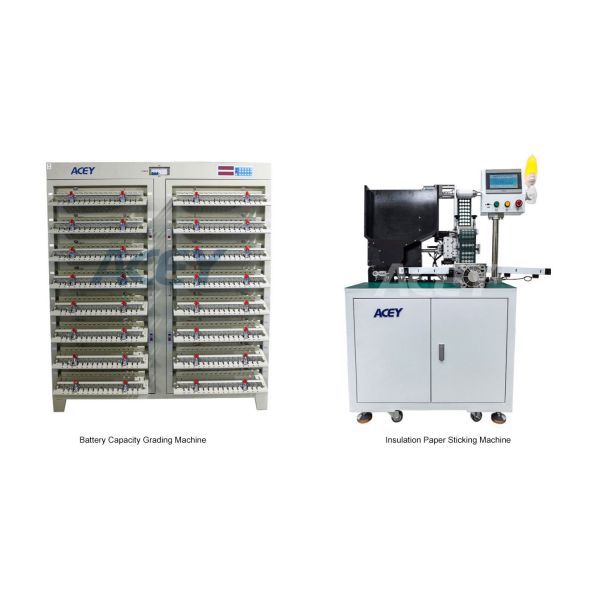

Battery Capacity Grading Machine 5V 3A/5A/6A optional, 256/512 Channels optional, Energy-feedback/Liner optional
Insulation Paper Sticking Machine Sticker Materials: Barley paper or PVC, Replaceable Mould for 18650/21700/26650/32700

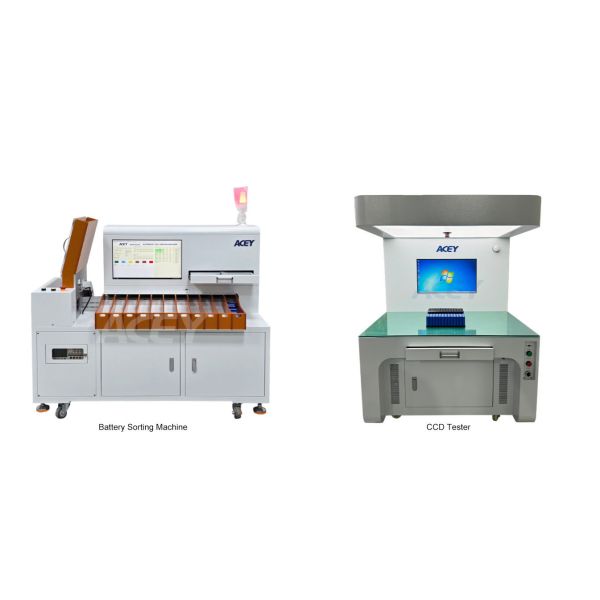

Battery Sorting Machine 5-22 Channels Optional, Barcode Scanner Optional, Suitable for 18650/21700/26650/32650/32700
CCD Visual Inspection Machine Cylindrical battery positive and negative detection, Conveyor Belt Optional

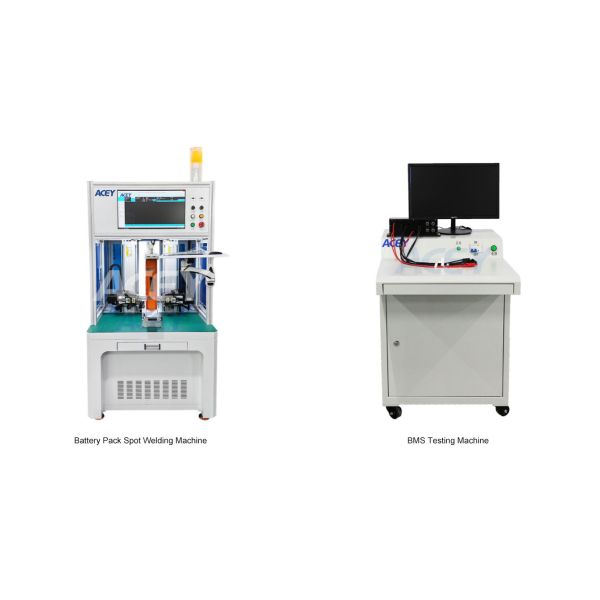

Manual Battery Pack Spot Welding Machine Pneumatic AC Spot Welding Machine (Single Welding Point or Double Welding Point), AC Pedal Manual Spot Welding Machine
Automatic Battery Pack Spot Welding Machine Single-sided Spot Welding Machine, Double-sided Spot Welding Machine
BMS Tester 1-52 series Optional, 50A~500A

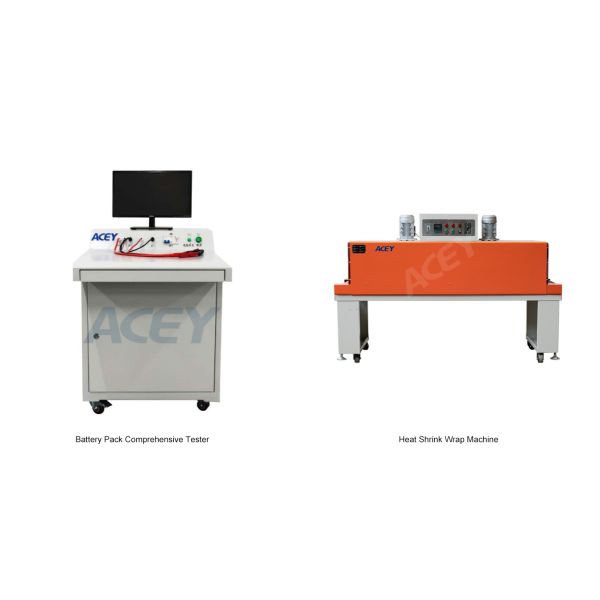

Battery Pack Comprehensive Tester Voltage: 10V~300V, Current: 60A~600A
Heat Shrink Wrap Machine Shrink Film: PP/PE/POF/PVC, 250*120MM/350*150MM/400*200MM/450*300MM/ETC

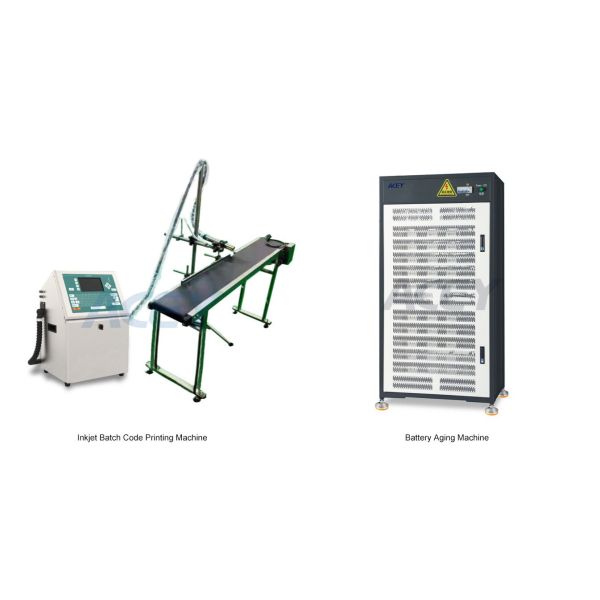

Inkjet Batch Code Printing Machine Drop on Demand / Continue ink jet printer
Battery Aging Machine Voltage: 8~300V, Current: 0~400A. High Voltage Series: 500V~1500V, Current: 100A~1000A
Product Display
Semi-automatic Lithium-ion Battery Pack Assembly Line For UAV/Drone Battery
Semi-automatic Lithium-ion Battery Pack Assembly Line For UAV/Drone Battery
Semi-automatic Lithium-ion Battery Pack Assembly Line For UAV/Drone Battery
Semi-automatic Lithium-ion Battery Pack Assembly Line For UAV/Drone Battery
Semi-automatic Lithium-ion Battery Pack Assembly Line For UAV/Drone Battery
