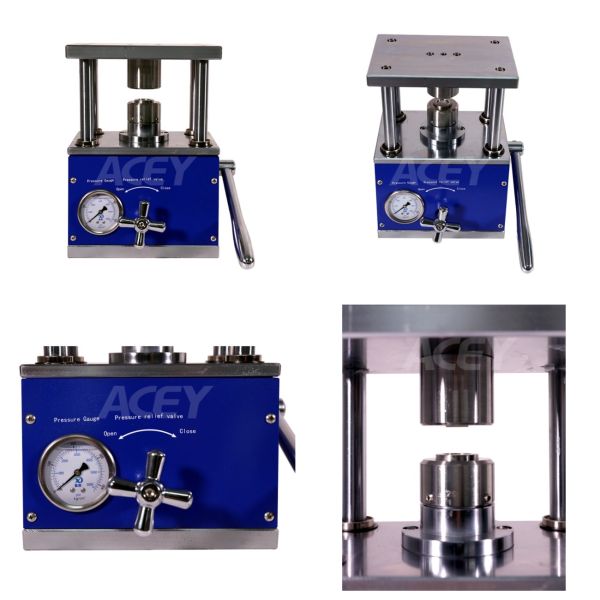

Cr2032 Cr2025 Cr2016 Button Battery Manual Sealing Crimping Machine For Coin Cell

Description

The coin cell crimping machine is designed for producing samples used in battery material R&D and for sealing button cells and capacitors in laboratory settings. It can also support small‑batch trial production in manufacturing environments. Operating in an electric mode, it provides effortless handling. With interchangeable molds, the equipment can perform various operations such as dry powder compaction, wet powder forming, compression molding, and riveting. A dedicated mold set is available for CR20‑series coin cells including CR2032, CR2025, CR2016, and similar models.

Features

1. The lower mold is limited by a high-precision positioning ring to control the height of the battery packaging, so as to avoid excessive and unstable packaging pressure, which may cause damage to the sealing cup.

2. The inner ring of the upper mold sealing cup is equipped with a screw spring centering mechanism to ensure that in case the battery is stuck and cannot be removed during sealing, the button battery can be forced out by twisting the top screw.

3. Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper pressure limit can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.

4. Built-in pressure gauge can observe and accurately control the size of the sealing pressure.

5. Using hydraulic drive, the pressure can reach 8T, the battery seal has no vibration and no leakage.

6. Specially designed hydraulic structure, labor-saving operation.

7. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.

8. Small size, easy to operate, can be placed in a glove box for operation.

9. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.

Specification

Product details
