Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Specifications
Brand Name :
ACEY
Model Number :
ACEY-EVM-1L
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 2480~2584/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Rated power :
0.75KW, 220V;
Stirring speed :
0-1400 rpm
Effective volume :
equipped with a 1L tank
Overall size :
705mm×605mm×305mm (height×length×width)
Weight :
90KG
Vacuum :
-98KPa (without vacuum pump)
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
The ACEY-EVM-1L vacuum mixer is a compact laboratory unit designed for efficient vacuum mixing and dispersion. It features programmable control over speed, time, and rotational direction, allowing for customized process parameters. Equipped with a stainless steel mixing tank and an integrated water cooling system, it ensures optimal performance and temperature stability during operation.
Key Features
  • 1L double-layer stainless steel container made of high-quality 304 stainless steel, precision polished for high accuracy
  • Gearbox frequency conversion adjustment for selecting different speeds and torque based on process requirements and material viscosity
  • Double-dispersion blade design for thorough material mixing with up/down and circular motion
  • Automatic stop function while maintaining vacuum state
  • Industry-leading soft sealing technology maintains -0.098Mpa vacuum for over 24 hours
  • Precision guide post support with cylinder-driven automatic barrel opening and closing
Technical Specifications
Rated Power 0.75KW, 220V
Stirring Speed 0-1400 rpm, speed regulation by frequency converter
Vacuum Level -98KPa (without vacuum pump)
Effective Volume Equipped with 1L tank
Barrel Opening/Closing Cylinder-driven upper cover mechanism
Overall Dimensions 705mm * 605mm * 305mm (height * length * width)
Timing Function Programmable timing 0-99 hours
Lid Features Vacuum gauge, vacuum port, and other accessories
Overall Weight Approximately 90kg

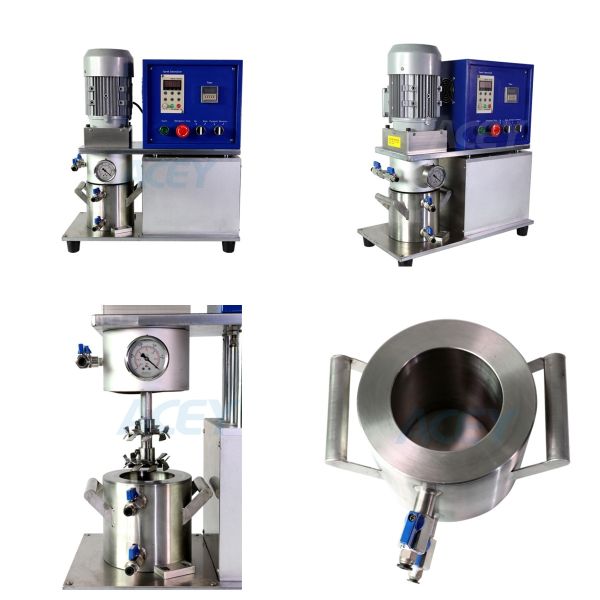

Product Display
Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
