Specifications
Brand Name :
ACEY
Model Number :
ACEY-DC-1
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 600 /Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Punching size :
optional Ф3mm～Ф24mm according to customer's specification
Punching pressure :
≥300Kg
The stroke of the final axis :
≥25mm
Flushable material :
0.005~0.5mm thick battery material sheet
Warranty :
1 Year Warranty With Lifetime Support
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Portable Flexible Battery Material Disc Cutter Battery Electrode Punching Machine



Product Description

ACEY-DC-1 is dedicated to the punching process. It is equipped with different specifications of molds to perform punching and blanking processes on sheet materials. The design of the whole machine is small and exquisite, and it is flexible and convenient to use. It is very suitable for punching and blanking materials such as battery positive and negative sheets, separators and other materials with a thickness of 0.005-0.5mm.


Product Features

*The upper die is guided by high-precision slide rails, with high punching accuracy, without burrs, burrs, and indentations.
*It can punch various battery materials with a thickness of 0.005～0.5mm.
*Small size, convenient operation, flexible and quick to use, and can be passed through freely in the glove box over Φ210mm in diameter.
*The appearance is exquisite, beautiful and concise, easy to clean and maintain, with small size and other advantages.
*The body is made of aluminum alloy corrosion-resistant material, never rusty and beautiful.
*The body is made of aluminum alloy, rust-proof and beautiful

Technical Parameter

Punching size: optional Ф3mm～Ф24mm according to customer's specification
Punching pressure: ≥300Kg
The stroke of the final axis: ≥25mm
Flushable material: 0.005~0.5mm thick battery material sheet
Punching accuracy: ±0.1 mm
Overall dimensions (L* W*H) (mm): L125×W145×H245mm
Weight: 10Kg;
Receiving box: anti-static, ABS material, the remaining material is discharged

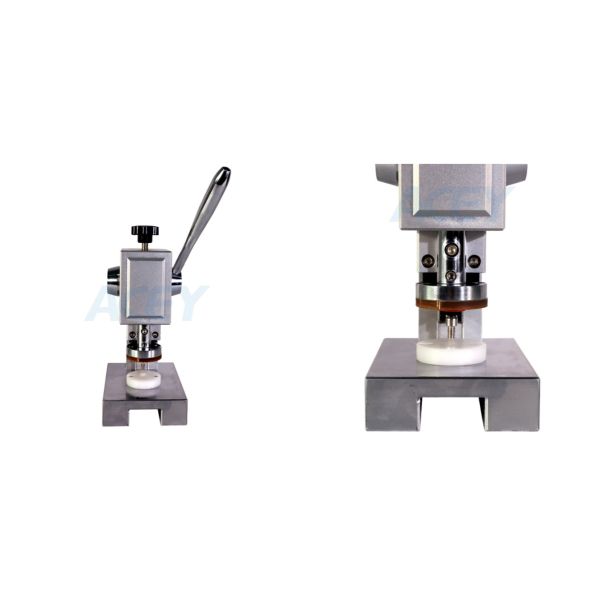

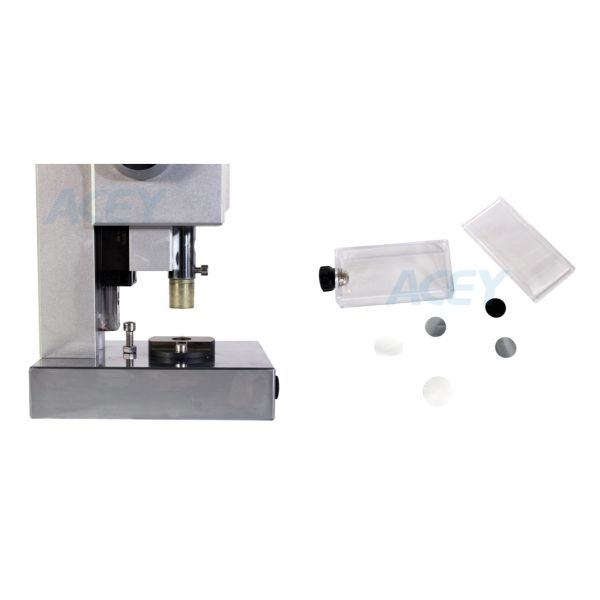

Product DisplayPortable Flexible Battery Material Disc Cutter Battery Electrode Punching Machine

Portable Flexible Battery Material Disc Cutter Battery Electrode Punching Machine
