CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
Specifications
Brand Name :
ACEY
Model Number :
ACEY-BMD-1
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 1000~1042/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
application :
CR2016 CR2025 CR2032 Battery
Structural material :
chrome steel and alloy aluminum
Weight :
30kg
Dimensions :
225mm X 180mm X 335mm
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description

CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine

Product Description

ACEY-BMD-1 standard configuration can be used to remove all CR20 series button batteries. It has the advantages of small size, convenient operation and precise disassembly. It is mainly used for the sample intake research of battery internal materials. A set of molds for disassembling CR20 series button batteries such as CR2032, CR2025, CR2016, etc..

Features

*Small size, easy to operate, can be placed in a glove box for operation.
*Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
*Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper pressure limit can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.
*Built-in pressure gauge can observe and accurately control the size of the sealing pressure.
*Using hydraulic drive, pressure can reach 8T.
*Specially designed hydraulic structure, labor-saving operation.
*Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.

Product Parameters

The operating force of the hand rocker: less than 6kg
The pressure gauge of the normal button battery removal pressure: The machine has been set at about 80～100kg/cm2 before leaving the factory.( For special circumstances, more pressure is required (pressure 200kg/cm2 is about 8 Tons of pressure) can only be adjusted after consulting the manufacturer.
Mold material imported from: Japan.
Structural material: high-strength chrome steel and alloy aluminum, the surface will never rust after environmentally friendly electroplating and spraying.
Dimensions: 225mm X 180mm X 335mm
Weight: 30kg.

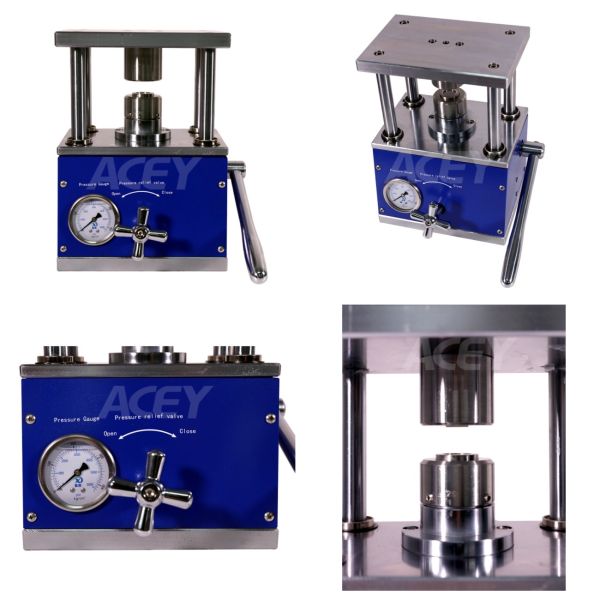

Product Display

CR2016 CR2025 CR2032 Hydraulic Button Battery Disassembly Machine
