Manual Horizontal Roller Press Machine For Battery Electrodes
Manual Horizontal Roller Press Machine For Battery Electrodes
Manual Horizontal Roller Press Machine For Battery Electrodes
Manual Horizontal Roller Press Machine For Battery Electrodes
Manual Horizontal Roller Press Machine For Battery Electrodes
Manual Horizontal Roller Press Machine For Battery Electrodes
Manual Horizontal Roller Press Machine For Battery Electrodes
Manual Horizontal Roller Press Machine For Battery Electrodes
Specifications
Brand Name :
ACEY
Model Number :
ACEY-MRP100W
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 1340~1396/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Roller size :
96mmX100mm
Roller cylindricity :
≤±2um
Rolling thickness :
0～2mm, the gap can be adjusted
Feeding speed :
0～40mm/s
Operation method :
manual
Equipment weight :
About 50KG
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description
Manual Horizontal Roller Press Machine For Battery Electrodes
Product Overview

The ACEY-MRP100W is a manual roller press machine specifically designed for laboratory-scale battery material processing. This unit is ideal for thinning and increasing the density of lithium battery electrodes used in clean energy applications. Featuring gear-driven rolling with adjustable thickness settings, the machine offers precise control and ease of operation.

Key Features
  • High-hardness rollers with hard chrome-plated surface (HRC 62) for excellent rust resistance
  • Inclined block mechanism for precise tablet gap adjustment with superior self-control capability
  • Exceptional rolling precision with roller cylindricity ≤ ±2 µm
  • Vertical design for convenient feeding and rolling of strip materials
  • Gear meshing rotation system for controlled rolling process
  • Adjustable rolling thickness and speed parameters
  • Compact design with elegant appearance, easy operation, and quick setup
Technical Specifications
Roller Size Diameter Φ96mm × 100mm
Roller Cylindricity ≤ ±2µm
Roller Hardness HRC 62
Roller Finish Above 0.4
Rolling Thickness 0-2mm (adjustable gap)
Roll Placement Horizontal placement
Operation Method Manual
Feeding Speed 0-40mm/s (dependent on hand crank speed)
Dimensions 405mm × 305mm × 355mm (L × W × H)
Equipment Weight 50kg

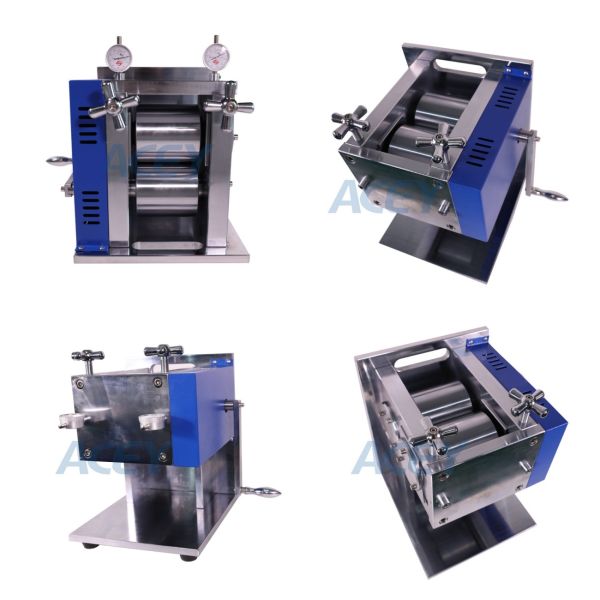

Product Image
Manual Horizontal Roller Press Machine For Battery Electrodes
