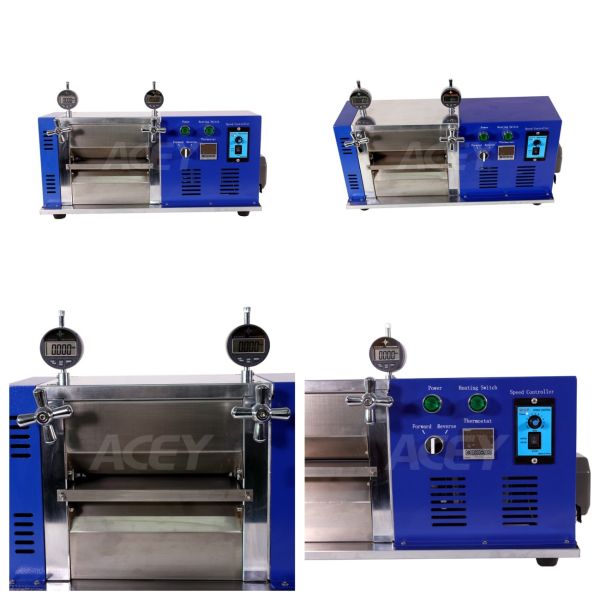

Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Specifications
Brand Name :
ACEY
Model Number :
ACEY-HRP100
MOQ :
1 Set
Price :
USD 1980~2060/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Roller size :
96mmX100mm
Roller cylindricity :
≤±2um
Rolling thickness :
0～2mm, the gap can be adjusted
Roll placement :
Vertical placement
Voltage :
AC220V/50Hz
Equipment weight :
About 60KG
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Description
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
Product Overview

The ACEY-HRP100 electrically heated vertical rolling press is specifically designed for laboratory use, enabling controlled-temperature rolling of battery materials, small quantities of precious metals (e.g., gold and silver), and non-ferrous metals such as copper and aluminum. It features adjustable rolling thickness and straightforward operation. This makes it particularly well-suited for thinning and increasing the density of lithium-ion battery electrodes used in clean-energy applications.

Key Features
  • Heating and rolling with thermostat-controlled temperature adjustment and digital display
  • Flexible operation with or without heating capability
  • High-hardness rollers with hard chrome plating (HRC62) and rust resistance
  • Inclined block gap adjustment system with excellent self-control and high precision
  • High rolling precision with roller cylindricity ≤±2μm
  • Vertical design for convenient strip material feeding and rolling
  • Gear meshing rotation for roller pressing operation
  • Adjustable thickness and speed with exquisite appearance
  • Electric rolling with automated forming and reversible operation
  • Compact size for easy, flexible, and quick operation
Technical Specifications
Roller size Diameter Φ96mm × 100mm
Roller cylindricity ≤±2μm
Roller hardness HRC62
Roller finish Ra0.4 or better
Rolling thickness 0-2mm (adjustable gap)
Roll placement Vertical placement
Tablet thickness Adjustable speed
Rolling temperature Room temperature to 130°C (digital display)
Temperature control accuracy ±0.5°C
Temperature resolution 0.1°C
Power source AC220V/50Hz, 800W
Feeding speed 0-40mm/s (adjustable)
Dimensions 505mm × 225mm × 325mm
Equipment weight 60kg
Product Details
Laboratory Heated Roller Press Electrode Calendering Machine For Battery Research
