Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Specifications
Brand Name :
ACEY
Model Number :
ACEY-MRP100L
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 1150~1198/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Roller size :
96mmX100mm
Roller cylindricity :
≤±2um
Rolling thickness :
0～2mm, the gap can be adjusted
Roll placement :
vertical placement
Operation method :
manual
Equipment weight :
About 50KG
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Description
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
Product Description

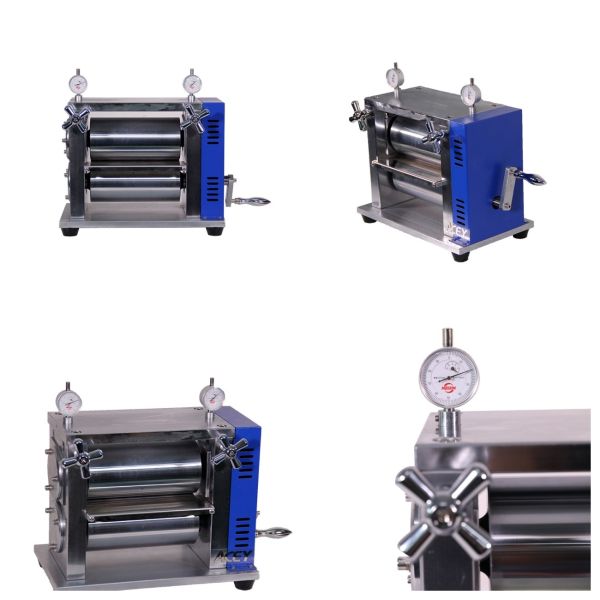

The ACEY-MRP100L rolling press machine is primarily designed for manual rolling of battery materials in laboratory environments. It is especially well‑suited for thinning and densifying lithium‑ion battery electrodes used in clean‑energy applications. Featuring gear‑driven rolling, the machine offers adjustable rolling thickness and is user‑friendly to operate.

Features
  • The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.
  • Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
  • High rolling precision, roller cylindricity ≤ ±2um.
  • Vertical design, convenient for feeding and rolling of strip material.
  • Adopt gear meshing rotation to realize the roller pressing.
  • The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.
  • Small size, easy operation, flexible and quick to use.
Specification
Roller size Diameter Φ96mm * 100mm
Roller cylindricity ≤ ±2um
Roller hardness HRC62
Roller finish Ra0.4 or more
Rolling thickness 0–2mm, the gap can be adjusted
Roll placement Vertical placement
Tablet thickness Speed can be adjusted
Operation method Manual
Feeding speed 0–40mm/s, depends on the speed of hand crank
Dimensions L355mm * W245mm * H355mm
Equipment weight 50KG
Product Details
Compact Easy Operation Manual Vertical Rolling Press Machine For Electrode Sheet Rolling
