6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
Specifications
Brand Name :
ACEY
Model Number :
ACEY-LWM6000Z
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 10300~49500/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Laser Output Power :
6000W
Input Power Supply :
AC380V 50/60Hz
Machine Dimension :
L1700*W1280*H2050mm
Machine Weight :
500Kg
Description
6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
The ACEY-LWM6000Z 6000W Fiber Laser Welder is a high-performance industrial system engineered for the demanding requirements of prismatic battery pack assembly. While 6000W provides substantial power reserves, this machine is specifically optimized for the high reflectivity and thermal conductivity of aluminum alloys (Al3003, Al1060). It delivers high-speed, consistent welding for battery case sealing and busbar connections (up to 4mm), ensuring structural integrity and low electrical resistance without damaging internal cell components.
Key Features
High-Speed Sealing
For prismatic pack casing, 6000W enables extreme welding speeds, creating a "flash" weld that minimizes total heat input. This prevents electrolyte overheating while ensuring a 100% hermetic seal.
Thick Busbar Penetration
Aluminum busbars require high energy density to overcome thermal dissipation. Our 6000W system effortlessly handles 2.0mm, 3.0mm, and 4.0mm aluminum plates, providing smooth, crack-free weld beads with superior tensile strength.
Overcoming High Reflectivity
Standard lasers struggle with aluminum's reflective surface. Our fiber laser source combined with high-end optics ensures stable beam absorption, eliminating "false welding" or power fluctuations during processing.
Advanced Wobble Technology
The integrated smart-swing welding head enables precise beam oscillation, breaking the oxide layer on aluminum surfaces. This significantly reduces porosity and ensures clean, aesthetic welds without spatter.
Advanced Galvo & Gantry Integration
Equipped with a high-power galvo welding head combined with an XY gantry motion platform, allowing rapid and flexible welding of complex graphic trajectories ideal for multi-cell pack layouts.
6-Axis Motion Control & Automation Ready
Supports up to 6-axis motion control, adapting to diverse automation needs. Designed for seamless integration into fully automated production lines or as a high-efficiency standalone workstation.
Intelligent Monitoring & Easy Positioning
CCD monitoring system provides real-time monitoring of the welding process for easy debugging and quality control.
Technical Specifications
Model ACEY-LWM1500Z ACEY-LWM2000Z ACEY-LWM3000Z ACEY-LWM4000Z ACEY-LWM6000Z
Laser Output Power 1500W 2000W 3000W 4000W 6000W
Galvanometer Power 1500W 2000W 3000W 4000W 6000W
CCD 1.3 Megapixel, Anti-Flash
Air Blow Blade Single layer Double layer
Cooling Machine 1.5P 2P 3P 4P 6P
X Axis 800mm 1000mm
Y Axis 600mm 800mm
Z Axis 400mm
Repeat Positioning Accuracy ±0.02mm
Fiber Cable Length 10m 15m 20m 20m 20m
Laser Wavelength 1070nm
Output Method QBH
Cooling Method Water cooling
Motor 400W servo motor
Working Voltage AC220V 50/60Hz AC380V 50/60Hz
Reference Size L*W*H=1450*1050*2050mm L*W*H=1700*1280*2050mm
Weight 350KG 450KG

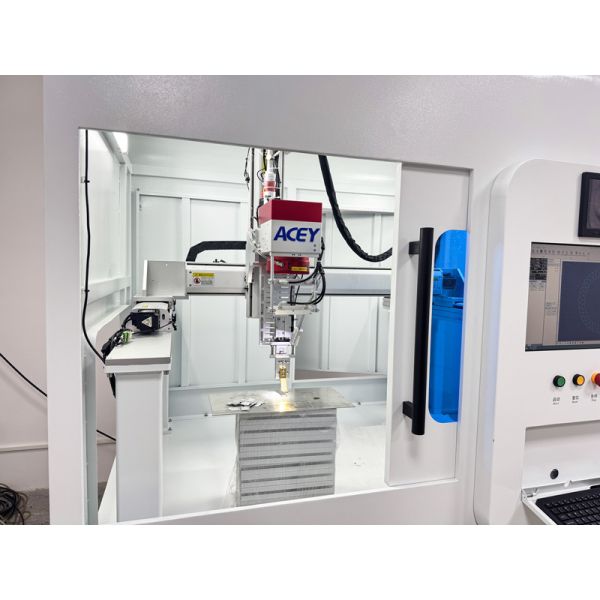

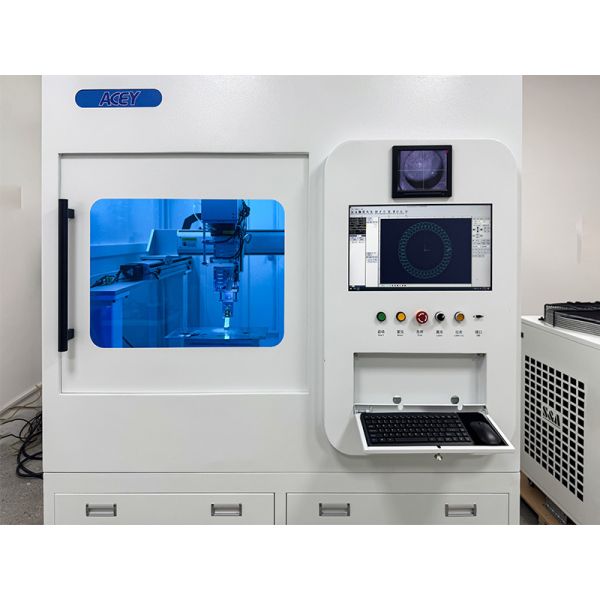

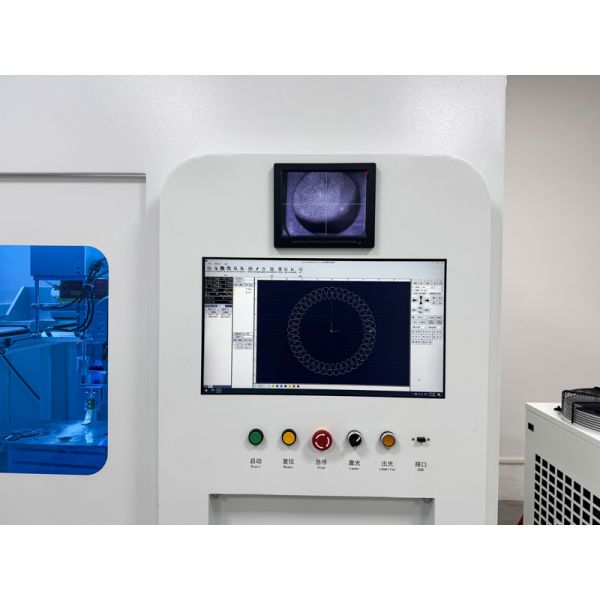

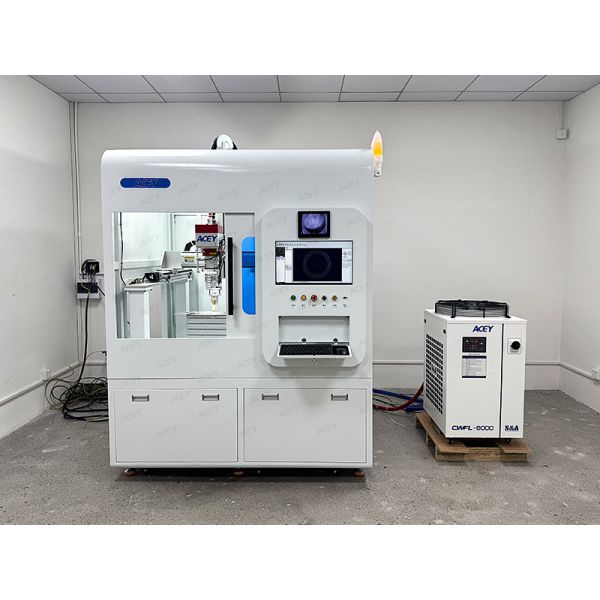

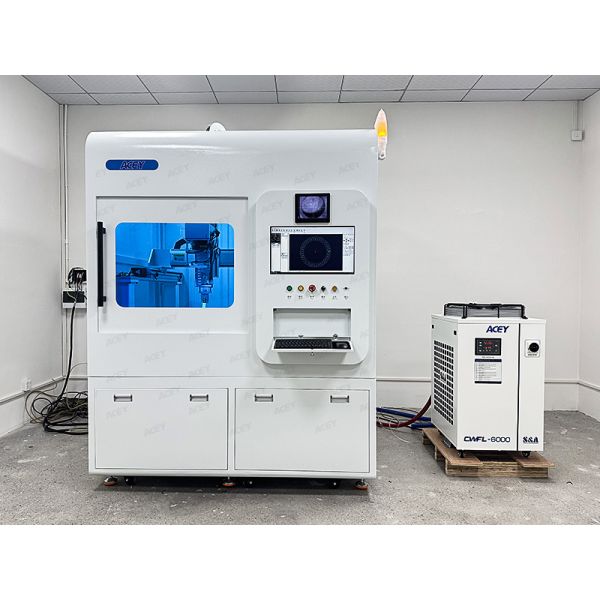

Product Gallery
6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack 6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack 6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack 6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack 6000W Industrial Automatic CNC Aluminum Laser Welding Machine For Prismatic Battery Pack
