3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
Specifications
Brand Name :
ACEY
Model Number :
ACEY-LWM3000Z
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 21800~26600/Set
Laser Output Power :
3000W
Galvanometer Power :
3000W
X-axis Travel :
1000mm
Y-axis Travel :
800mm
Z-axis Travel :
400mm
Repeat Positioning Accuracy :
±0.02mm
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery

Product Description

ACEY-LWM3000Z Gantry continuous laser welding machine with galvanometer adopts international advanced fiber laser source, combined with ours independent research and development design, with good rigidity, stability; to precision guide rail drive operation, configured with high-response servo motors, high precision, high speed; mainly for the prismatic, pouch lithium battery PACK assembly process.

Product Features

1.With high power fiber continuous laser, sufficient power, fast speed, high precision, stable welding quality.
2.Maximum support for 6-axis motion control, can be linked to the automatic line, or stand-alone operation.
3.Configuration of high power galvanometer, with XY gantry motion platform, can be convenient to weld a variety of complex graphic trajectories.
4.Specialized software, welding process expert, perfect data saving and calling function, with powerful drawing and editing graphic function.
5.With CCD monitoring system, convenient for debugging, can monitor the welding quality in real time. (optional)
6.With infrared positioning system, can quickly locate the welding position and focal length of the product, simple and convenient to get started. (optional)
7.Powerful water cooling circulatory system, can make the laser welding machine always keep a constant temperature state, improve the welding quality and extend the service life of the machine.

Main Technical Parameter

Laser Output Power 3000W
Galvanometer Power 3000W
CCD 1.3 Megapixel, Anti-Flash
Air Blow Blade Single layer
Cooling Machine 3P
X-axis Travel 1000mm
Y-axis Travel 800mm
Z-axis Travel 400mm
Repeat Positioning Accuracy ±0.02mm
Fiber Cable Length 15m
Laser Wavelength 1070nm
Output Method QBH
Cooling Method Water cooling
Motor 400W servo motor
Working Voltage AC220V 50/60Hz
Reference Size L*W*H=1450*1050*2050mm
Weight 350KG

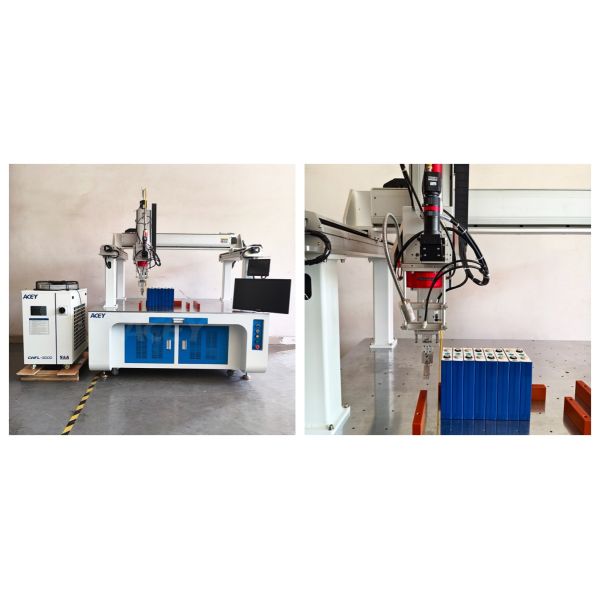

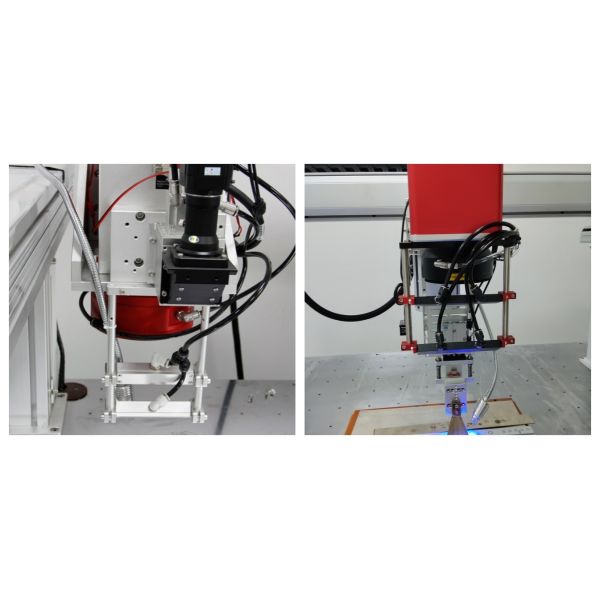

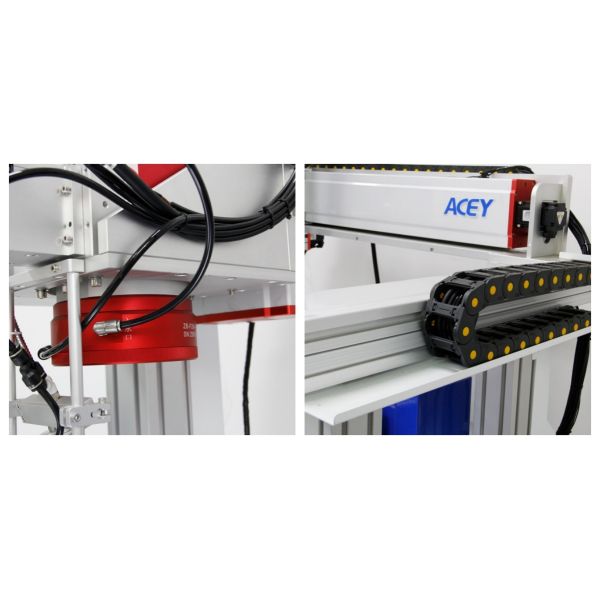

Product Display

3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery

3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery

3000W Lithium Ion Battery Pack Laser Welding Machine With Monitor for Prismatic Battery
