High Precision Handheld Laser Welder For Battery Pack Welding
High Precision Handheld Laser Welder For Battery Pack Welding
High Precision Handheld Laser Welder For Battery Pack Welding
High Precision Handheld Laser Welder For Battery Pack Welding
High Precision Handheld Laser Welder For Battery Pack Welding
High Precision Handheld Laser Welder For Battery Pack Welding
Specifications
Payment Terms :
T/T,PayPal,L/C,Western Union
Model Number :
ACEY-CLW
After-sales Service :
24/7 Technical Support
MOQ :
1 Set
Delivery Time :
7~35 Days
Laser Wavelength :
1070±10nm
Price :
USD 4300~16400/Set
Machine Weight :
133Kg
Certification :
CE
Output Power :
1500W / 2000W / 3000W
Supply Ability :
200 Sets/Month
Packaging Details :
Plywood Case
Place of Origin :
China
Cooling Method :
Water Cooling
Brand Name :
ACEY
Warranty :
1 Year Warranty with Lifetime Support
Description

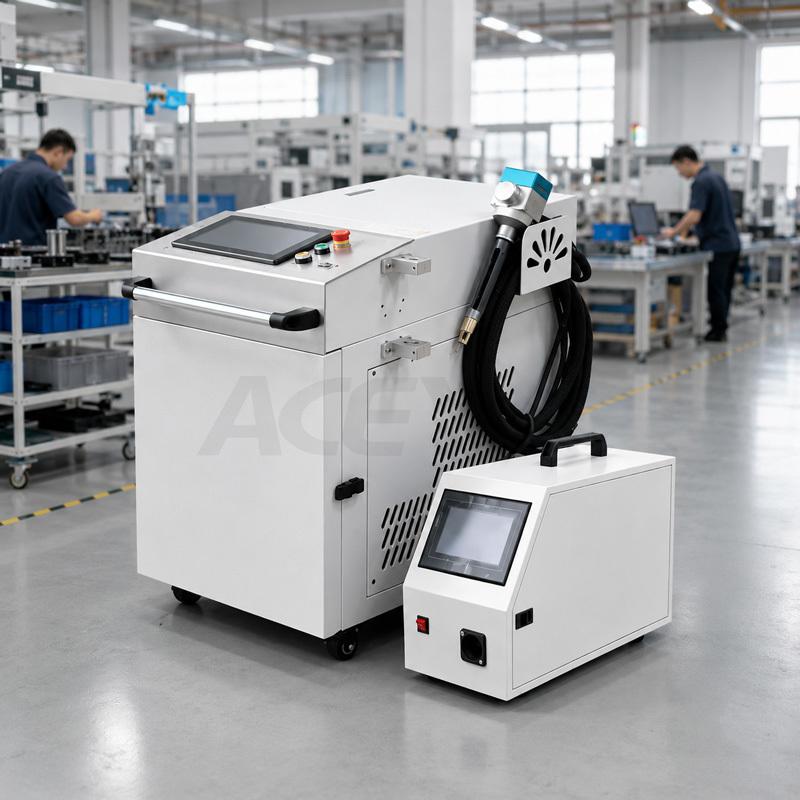

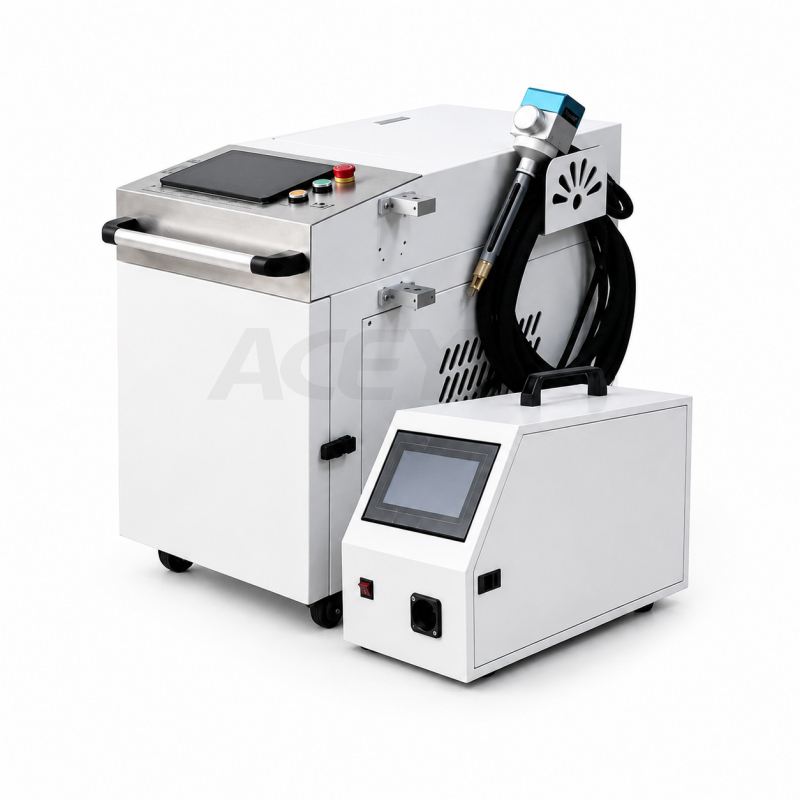

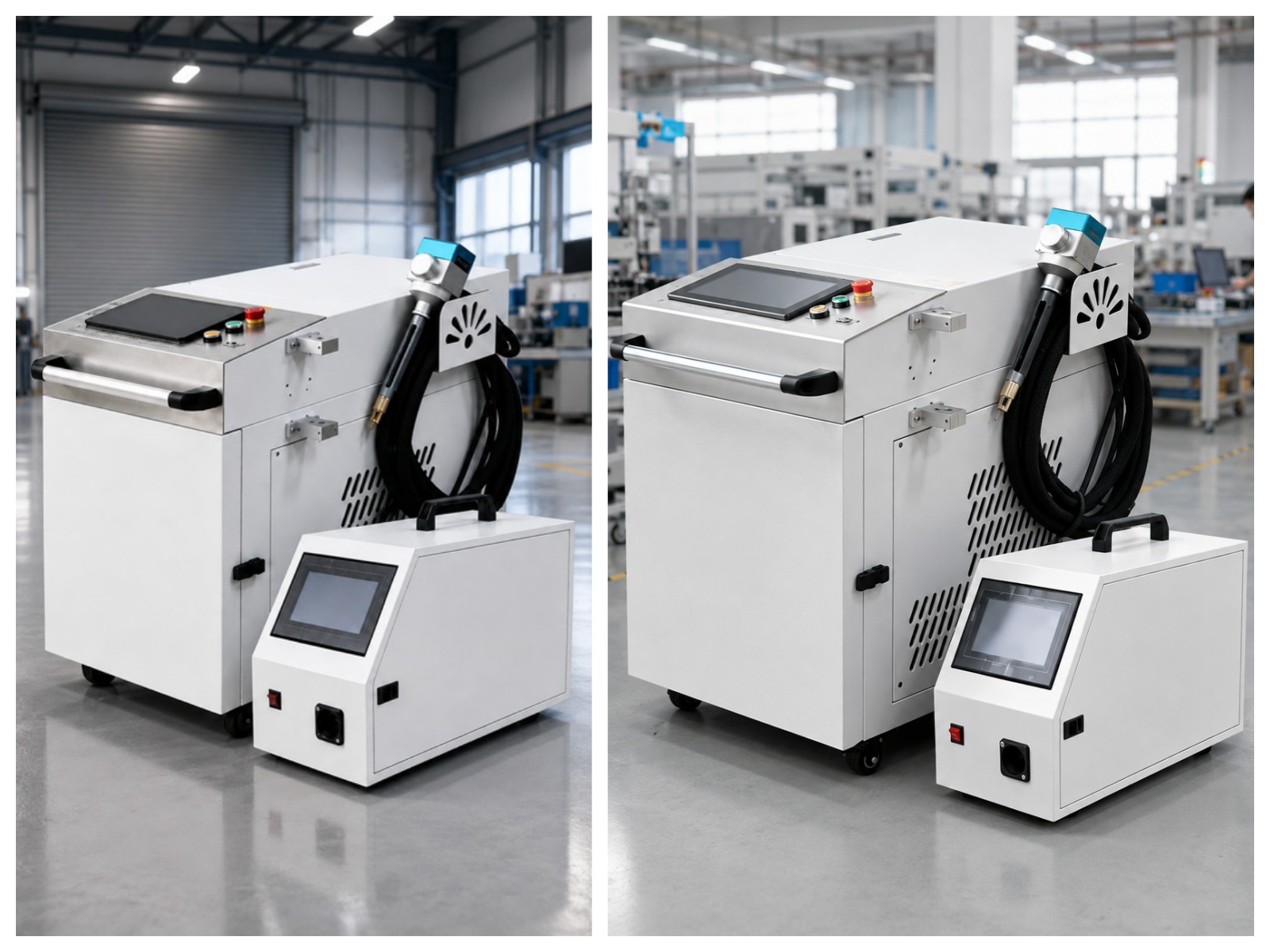

High Precision Handheld Laser Welder For Battery Pack Welding
The ACEY-CLW Series is a handheld laser welding system engineered for lithium battery welding applications. Incorporating a built-in dual-axis galvanometer and a flexible handheld design, it delivers precise, stable welds on aluminum, nickel, copper, and other common electrode materials. An 8-meter cable provides extended reach for large battery packs, making the unit well-suited for pack production, battery repair, and new energy vehicle maintenance.
Key Features

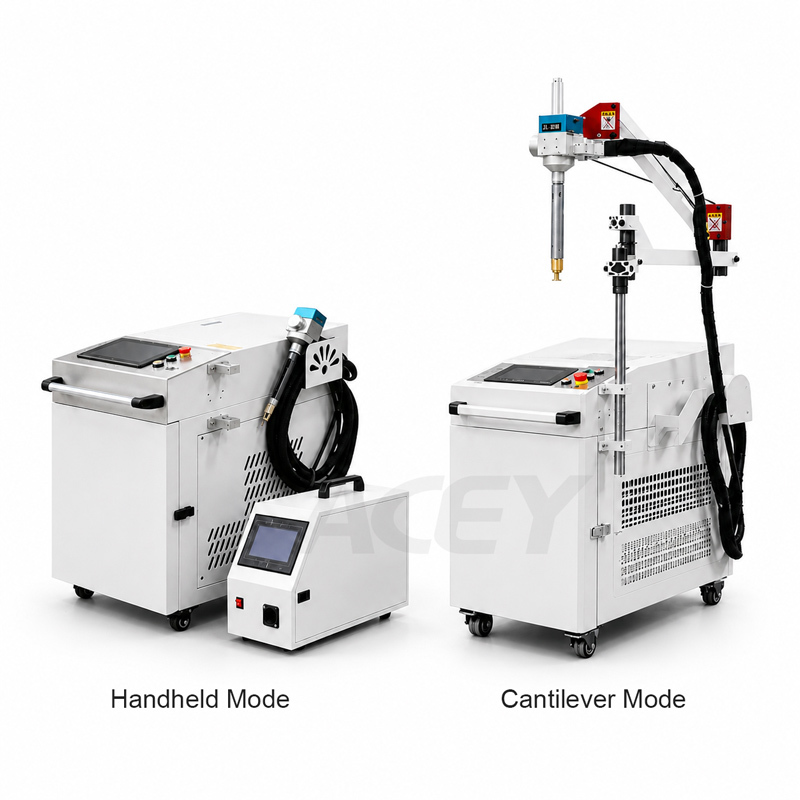

  • Flexible Power Output & Dual-Mode Operation: Available in 1000W, 2000W, and 3000W variants to suit diverse welding requirements, with switchable handheld/gantry operation for maximum application versatility.
  • Extended Reach & Precision Spot Positioning: Equipped with an 8-meter cable for large-format battery pack servicing, and a built-in dual-axis galvanometer scanning system that ensures accurate small-spot positioning.
  • Customizable Weld Paths & Energy Waveform Control: Programmable welding pattern geometry and output energy waveform shaping allow for process optimization across dissimilar materials including aluminum, nickel, and copper.
  • Versatile Nozzle Options & Low-Skill Operation: Interchangeable welding nozzles accommodate irregular or hard-to-reach geometries, while the built-in graphic processing software simplifies setup and reduces operator skill dependence.
  • Superior Weld Quality & Battery Performance: Delivers stable, repeatable spot welds that minimize contact resistance within battery packs, directly enhancing overall output performance and reliability - ideally suited for EV service centers, lithium battery distributors, and pack manufacturers.
Technical Specifications
Item Specification
Product Name Handheld Galvo Laser Welding Machine
Product Model ACEY-CLW Series
Power Supply AC 220V for 1500W/2000W models; AC 380V for ≥3000W model
Output Power 1500W / 2000W / 3000W
Power Consumption ≤6kW, 1500W model
Laser Wavelength 1070±10nm
Cooling Method Water Cooling
Welding Gun Head Weight 1.5kg
Product Dimensions 90 × 75 × 41.5cm
Machine Weight 133kg
