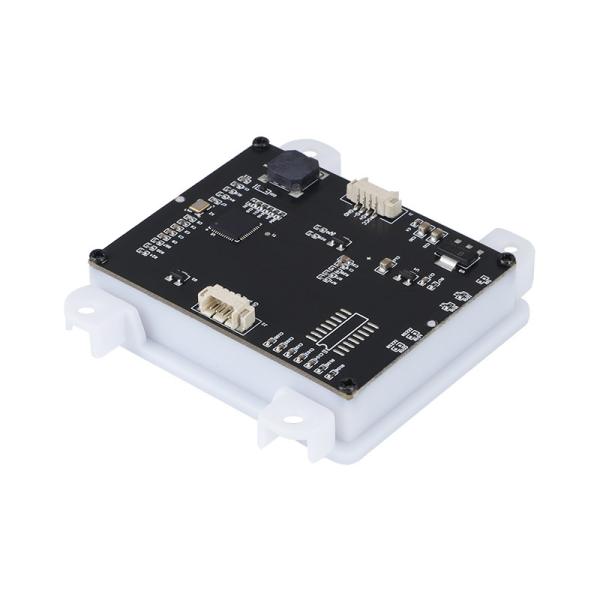

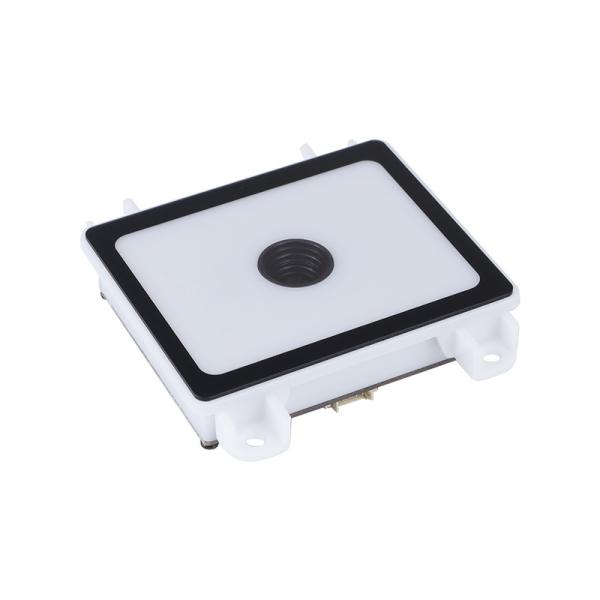

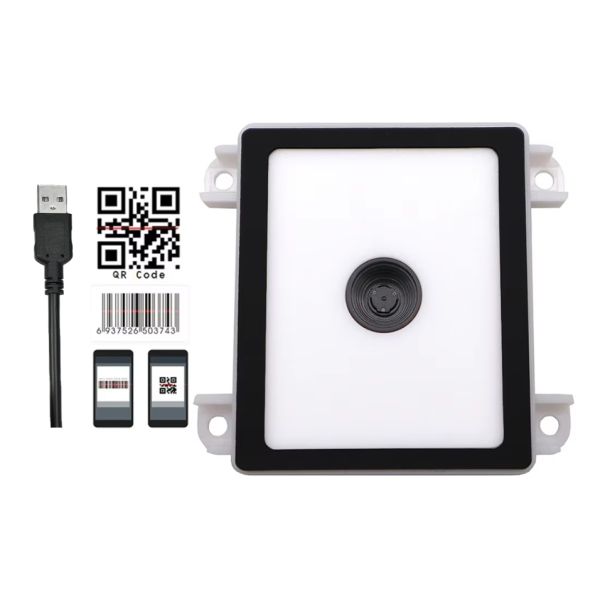

White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES808
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
1 - 100 pieces $17 100 -500 pieces $16 500 -1000 pieces $15
Payment Terms :
T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
Thin QR Bar Code Scanner
scan speed :
300 times/sec
software development kit (sdk) :
Yes
color :
White
Read success tips :
The LED and the buzzer
Scan type :
Paper and screen
Description

Wholesale Ultra-Thin Barcode Scanner Self-Service Vending Machines USB 2d Code Reader Barcode Scanner

Embedded Qr Code Scanner


Features of embedded barcode scanners


* Support over twenty different countries' keyboard layout.

* Support multiple languages; Error rate less 1/5 million.

* Comfortable button, service life of button up to 5million times.

* Made of durable ABS material, wear resistant and drop-proof.

* Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
* Can be customized according to customer demand.

Application range of embedded barcode scanners


Integrated into various terminal devices, including self-checkout in unmanned vending machines, self-service inquiry terminals,

logistics parcel lockers, intelligent queue calling systems, unmanned ticket dispensers, POS payment equipment, and other IoT

industry chain applications.


Technical specifications of the embedded scanner


Capability
Collection method
Image type, CMOS Sensor
Picking rate
1 / 60 Seconds
Field of view Angle
Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy
≥5mil
LED
Fill-in light
White
Physical parameters
size
(Long, width and height)
61mm ×51mm ×16.4mm
Weight
Less than 30g
Joggle
Joggle
4 PIN cable socket: USB KBW
4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V)
Scan pattern
Command mode / induction mode / trigger mode
Read success tips
The LED and the buzzer
Data line (optional)
4PIN straight line
Electrical parameters
Input voltage
5V or 3.3V
Working current
125mA
Standby current
85m A
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine
White Embedded Barcode Scanner Ultra Thin QR Bar Code Scanner For Self Service Vending Machine

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents you provide.

Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
