Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES908
Place of Origin :
Guangdong, China
Certification :
CE, ROHS, FCC, IEC, FDA
MOQ :
1pcs
Price :
1 - 100 pieces $17 100 -500 pieces $16 500 -1000 pieces $15
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
2D Barcode Scanner
optical resolution :
5mil
Interface :
USB2.0/USB3.0
Application :
commercial,industry
Scan Mode :
Handheld Rapid Scan
Decode Capabilities :
2D Code and barcode
Light source :
red LED
Feature :
Easy Operation
Description

Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module


Features of Embedded 1D/2D Barcode Scanners


Easily read a wide range of mainstream lD and standard 2Dbarcodes (PDF 417,QR Code Model 1/2,Hanxin code ,

Maxicode,Aztec, Micro QR and Data Matrix versions).lt also supports readingGS1-DataBarTM(RSS) barcodes,including

Limited, Stacked,Expanded and other versions.


Application scenarios of fixed scanners


Embedded into various terminal devices, such as self-service payment in unmanned vending machines, self-service inquiry

terminals, logistics express cabinets, intelligent number dispensers, unmanned ticket machines, POS payment systems, and

other IoT industry chain applications.

Products Description
Capability
Collection method
Image type, CMOS Sensor
Picking rate
1 / 60 Seconds
Field of view Angle
Horizontal 62°, and 48.5° vertical
Ability to read
Identification accuracy
≥5mil
Read the way
Close to, close to the reading
Scan the Angle
The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
Support code system
In line with the international and domestic general QR code standards:
QR Code, PDF417, DataMatrix (ECC200), etc
In line with the international and domestic general one-dimensional code standards:
EAN 13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11,MSI Plessey, RSS-14, qualified RSS, extended RSS, etc
Print contrast
Minimum 25% of the reflection difference
LED
Fill-in light
White

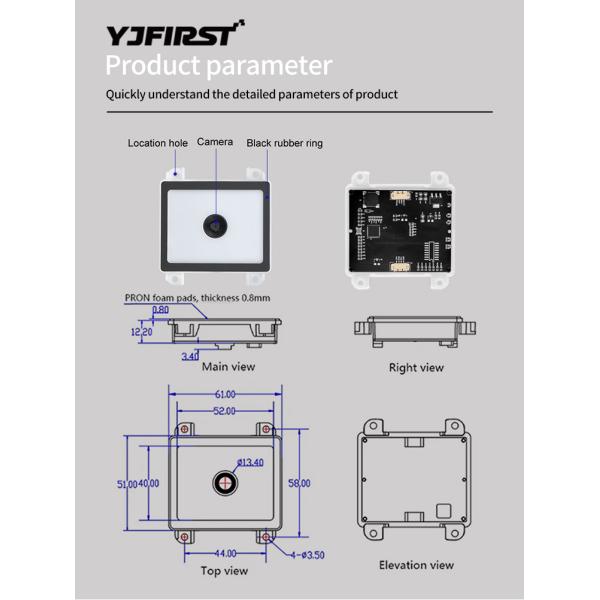

Physical parameters
size
(Long, width and height)
61mm ×51mm ×16.4mm
Weight
Less than 30g
Joggle
Joggle
4 PIN cable socket: USB KBW
4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V)
Scan pattern
Command mode / induction mode / trigger mode
Read success tips
The LED and the buzzer
Data line (optional)
4PIN straight line

Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module

Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module
Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module

Barcode Qr Code Scanner Suppliers Barcode Reader Embedded 1d 2d OCR Mrz Scanner Module

FAQ

Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.

Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us
for more details.

Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express
agents you provide.

Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.

Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.

Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.

Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient
explanations via email or call in time.
