Specifications
private mold :
Yes
products status :
Stock
type :
Barcode Scanner Engine
scan element type :
CMOS
colour depth :
32 Bit
interface type :
usb
max paper size :
A4 size
Brand Name :
WCMI
Place of Origin :
Tianjin,China
warranty(year) :
2-Year
after-sales service :
Return and Replacement, Others, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support
software development kit (sdk) :
NO
color :
Black
Product name :
Barcode Scanner Module
Interface :
USB/ TTL232
Weight :
<7g
Application :
PDA
Light source :
White LED
Color :
Balck
Storage :
-40℃ ~ 70℃
Decode Capabilities :
1D + 2D
Description
Recommend Products
Product Description

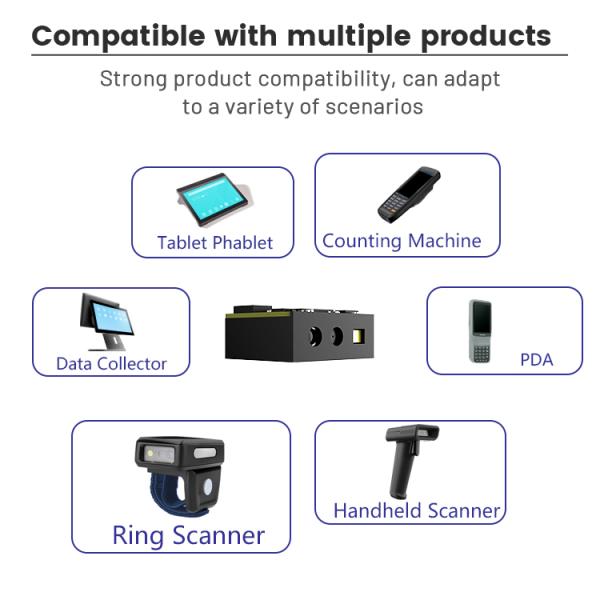

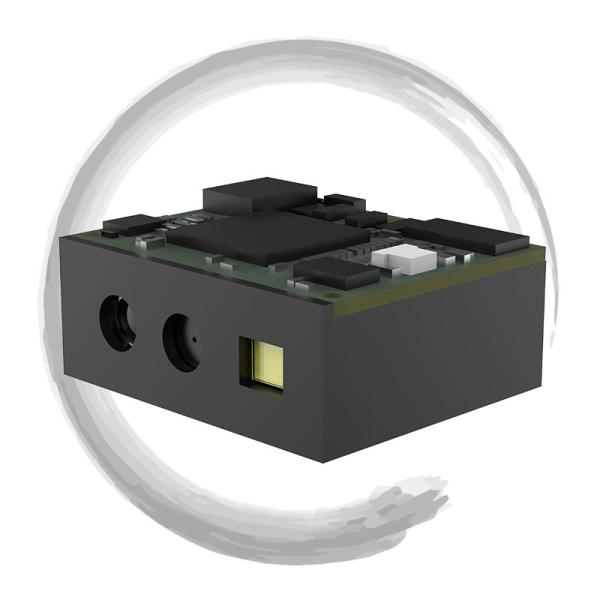

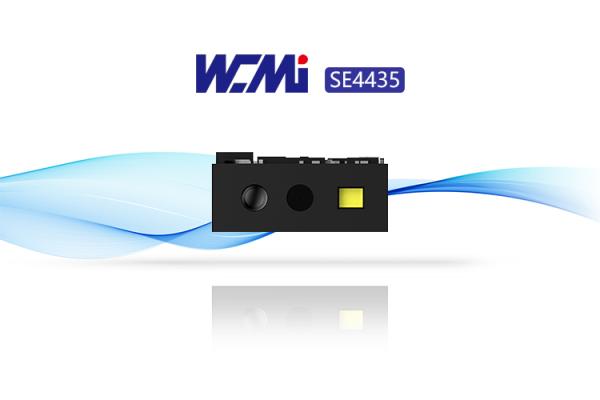

SE4435 is a 2D scanning module with small body, high integration, flexibility and convenience, and excellent performance.It can be widely used in finger ring type reader, neck strap type reader, BT pocket portable reader and other products.By leveraging our own technology, we have further perfected the engine’s overall scan performance, supporting all common 1D, 2D codes.
A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module
A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module
A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module
A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module
Specification
Product parameters










General
Type
Barcode Scanner Engine
Product model
SE4430
Brand Name
WCMI
Product Specification
Mini Barcode Scanner Engine
Products Status
Stock
Place of Origin
Tianjin,China
Private Model
Yes
Warranty(Year)
1year
After-sales Service
Return and Replacement; Free spare parts
Certification
RoHS FCC CE
Color
Black
Language Supported
English/Customized
Scan Element Type
CMOS










Scan code performance
Image (Pixels) Sensor
640 X 480 CMOS @ 30fps
Light Source
Fill Light: White 6500K LED
View Angle
Horizontal 37°, Vertical 28°



Decoding capability
2d: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417
1d: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、
Code128、Code39、Code93、CodaBar、Interleaved 2
of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI- Plessey、Standard 2 of 5、Plessey、China Post、Code
16K、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14)

Depth of Field
Code39: 35~140mm （5mil）
EAN13: 40~285 mm （13mil）
QR: 25-185mm(15mil)
Scan Angle
Rotation: 360°, Pitch±60°, Deflection±60°

Scan Mode
Continuous mode, Induction mode,
Manual mode,
Command-Triggered Mode
Precisions
1d ≥4mil / 2d ≥10mil
Symbol Contrast
≥20%




Physical Parameters
Weight
<7g
Dimensions
26 mm *22 mm *12mm
Interface
TTL-232 /VCP /USB-HID_keyboard / USB-HID_POS
Prompt Mode
LED prompt and buzzer (external connection available)
Voltage
+3.3VDC±5%
Current
working: 230mA; Sleeping: 130mA

Environmental Parameter
Operating temperature
-20℃ ~ 60℃
Storage temperature
-40℃ ~ 70℃
Operating Humidity
5%RH~95%RH (Non-condensing)
Packing & Delivery
A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module
Company Profile
A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module
Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.
Certification
A SE4430 Hot Sale Barcode Scanner Engine 1D 2D QR Cmos Mini Usb Barcode Scanner Module
FAQ
1. Is OEM or ODM available? Yes. We are the factory directly. We can make it as your requirement. 2. What’s the warranty policy for the barcode scanners? We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is necessary for replacement or new barcode scanners replacement in the next order. 3. Why so competitive? We have a professional R & D team and technical team and have a large domestic market. So large quantity will reduce our raw material cost directly. What's more, we have mature technology to save costs. 4. How to control the performance stability? We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered. 5. How about the factory? We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by the government. Owned many technical and design patents in different professional fields.
