Approval Water Cooling Molecular Vacuum Pump FFZ250/2000PM-W
Approval Water Cooling Molecular Vacuum Pump FFZ250/2000PM-W
Specifications
Brand Name :
BSC
Model Number :
FFZ250/2000PM-W
Certification :
ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1
Price :
1
Payment Terms :
100% T/T
Supply Ability :
500 Units per month
Delivery Time :
7 working days
Packaging Details :
Plywooden Box
Cooling method :
Water cooling
Pumping speed of N2 :
2000 L/s
Ultimatre Pressure(CF) :
5E-7 Pa
Ultimatre Pressure(LF) :
6E-6 Pa
Description

BAOSI VACUUM FFZ250/2000PM-W, water-cooling Turbomolecular Vacuum Pump

FEATURES

  • 1. Grease lubricated
  • 2. Water cooling
  • 3. Installation on any angle

TECHNICAL PARAMETER

Model

           FFZ250/2000PM-W

Inlet flange

-

CF250

LF250

Outlet flange

-

KF40

Pumping speed

L/s

2000

Compression ratio N2/H2

-

1×108/6×103

Ultimate pressure

Pa

6×10-6

6×10-7

Rotation speed

rpm

24000

Run-up time

min

＜7

Vibration

μm

≤0.15

Forevacuum pump speed

L/s

15

Cooling water temperature


≤25

Cooling water flow

L/s

≥1

Max Power

W

≤750

Voltage

V

220

Installation direction

-

Any direction

Weight

kg

40kgs

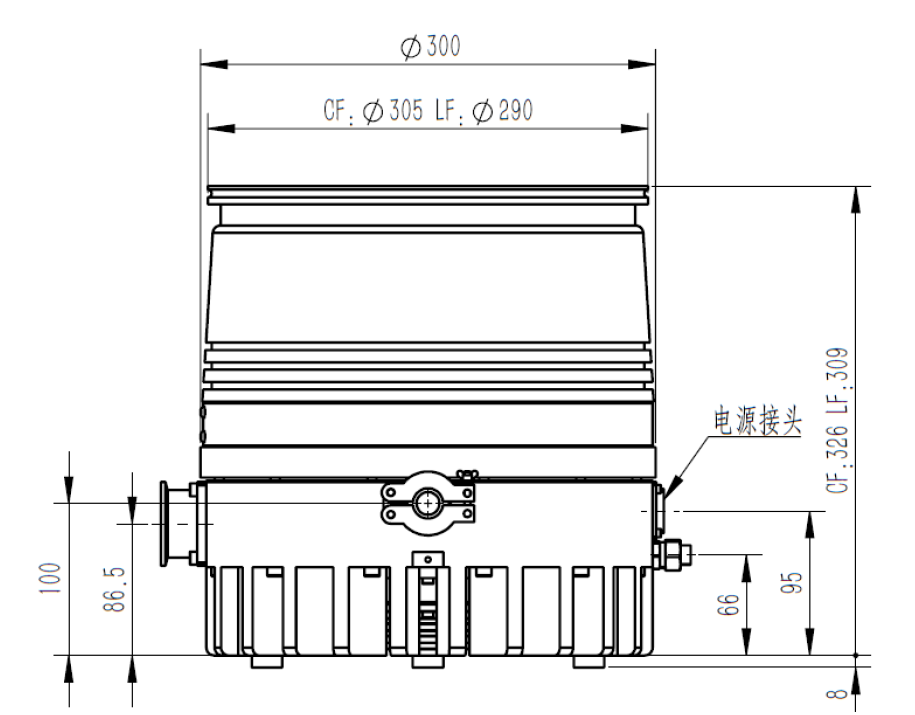

Outside Drawing

Approval Water Cooling Molecular Vacuum Pump FFZ250/2000PM-W

Pumping Curve
Approval Water Cooling Molecular Vacuum Pump FFZ250/2000PM-W
APPLICATIONS :
Oil-lubricated turbomolecular pumps are widely applied in multiple industrial fields with their excellent vacuum performance, stable operation, and cost-effective characteristics. Their main application industries are as follows:

➢ Semiconductor & Microelectronics

➢ Vacuum Coating (PVD/CVD) ➢ Scientific Research & Laboratory Analysis ➢ Vacuum Heat Treatment & Metallurgy ➢ Optoelectronics & Laser Manufacturing

➢ Lithium Battery & New Energy Material Processing

➢ Analytical Instrumentation
