Approval Water Cooling Molecular Vacuum Pump DFFZ250/2000PM-W
Approval Water Cooling Molecular Vacuum Pump DFFZ250/2000PM-W
Specifications
Brand Name :
BSC
Model Number :
DFFZ250/2000PM-W
Certification :
ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1
Price :
1
Payment Terms :
100% T/T
Supply Ability :
500 Units per month
Delivery Time :
7 working days
Packaging Details :
Plywooden Box
Cooling method :
water cooling
Pumping speed of N2 :
2000 L/s
Ultimatre Pressure(CF) :
5E-7 Pa
Ultimatre Pressure(LF) :
6E-6 Pa
Description

BAOSI VACUUM DFFZ250/2000PM-W, Water-cooling Turbomolecular Vacuum Pump

FEATURES

  • 1. Grease lubricated
  • 2. water cooling
  • 3. Installation on any angle

TECHNICAL PARAMETER

Model DFFZ250/2000PM-W
Inlet flange - CF250 LF250
Outlet flange - KF40
Pumping speed L/s 2000
Compression ratio N2/H2 - 1×108/6×103
Ultimate pressure Pa 6×10-6 6×10-7
Rotation speed rpm 24000
Run-up time min ＜7
Vibration μm ≤0.15
Forevacuum pump speed L/s 15
Cooling water temperature ≤25
Cooling water flow L/s ≥1
Max Power W ≤700
Voltage V 220
Installation direction - Any direction
Weight kg 42kgs

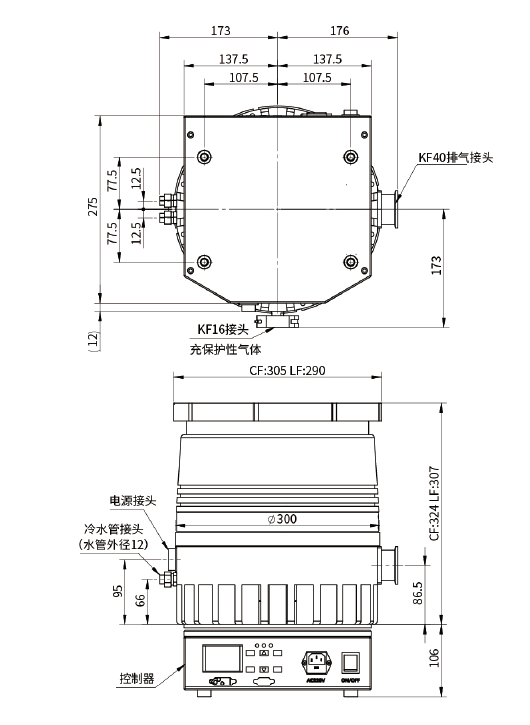

Outside Drawing

Approval Water Cooling Molecular Vacuum Pump DFFZ250/2000PM-W

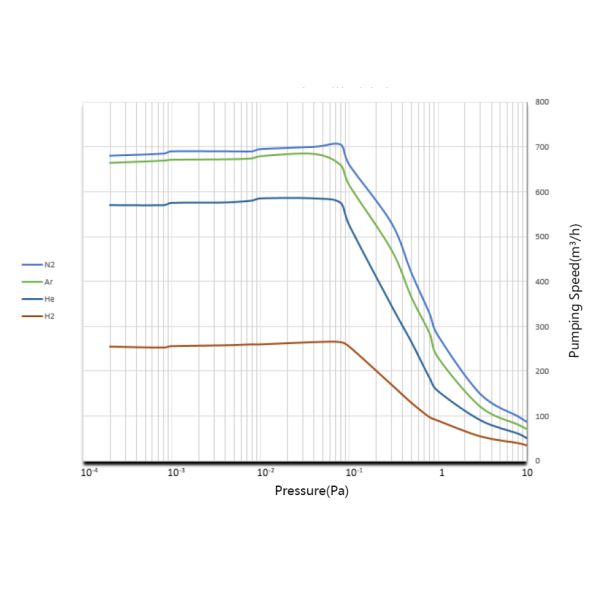

Pumping Curve
Approval Water Cooling Molecular Vacuum Pump DFFZ250/2000PM-W
APPLICATIONS :
Oil-lubricated turbomolecular pumps are widely applied in multiple industrial fields with their excellent vacuum performance, stable operation, and cost-effective characteristics. Their main application industries are as follows:
➢ Semiconductor & Microelectronics
➢ Vacuum Coating (PVD/CVD)
➢ Scientific Research & Laboratory Analysis
➢ Vacuum Heat Treatment & Metallurgy
➢ Optoelectronics & Laser Manufacturing
➢ Lithium Battery & New Energy Material Processing
➢ Analytical Instrumentation
