Air cooling,grease lubricated high vacuum pump FFZ160/700PM-A
Air cooling,grease lubricated high vacuum pump FFZ160/700PM-A
Specifications
Brand Name :
BSC
Model Number :
FFZ160/700PM-A
Certification :
ISO9001,ISO14001,OHSAS18001
Place of Origin :
CHINA
MOQ :
1
Price :
1
Supply Ability :
500 Units per month
Delivery Time :
7 working days
Packaging Details :
Plywooden Case
Payment Terms :
T/T
Cooling method :
water cooled
Pumping speed :
700 L/s(N2)
Ultimatre Pressure(LF) :
6E-7 Pa
Ultimatre Pressure(CF) :
6E-8Pa
Cooling Method :
Air cooling
Description

BAOSI TUBO PUMP FFZ160/700PM-A Grease-lubricated Molecular Vacuum Pump

FEATURES

1. Grease lubricated

2. Air-cooling

3. Installation at any angle

TECHNICAL PARAMETER

Model FFZ160/700PM-A
Inlet flange - LF160 CF160
Outlet flange - KF40
Pumping speed L/s 700
Compression ratio N2/H2 - 1×109/6×106
Ultimate pressure Pa 6×10-7 6×10-8
Rotation speed rpm 36000
Run-up time min ≤5
Vibration μm ≤0.1
Forevacuum pump speed L/s 4-8
Max Power W ≤700
Heater voltage V 220
Installation direction - Any angle
Weight kg 23

Pumping Curve

Air cooling,grease lubricated high vacuum pump FFZ160/700PM-A

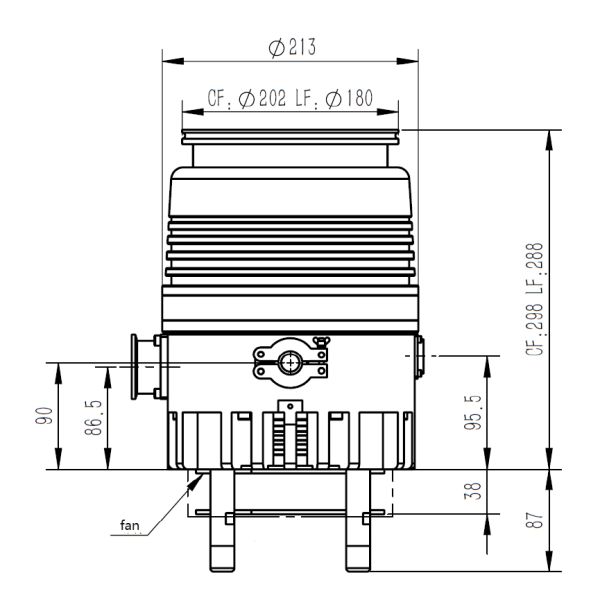

DRAWING

Air cooling,grease lubricated high vacuum pump FFZ160/700PM-A

APPLICATIONS :

  • Semiconductor and Electronics Manufacturing
  • Wafer processing
  • Pharmaceutical and Biotechnology
  • Food Processing
  • Aerospace and defense
