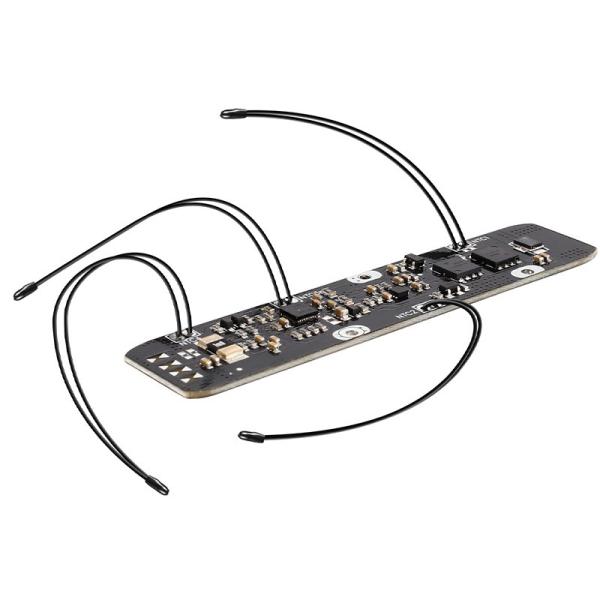

3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack
3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack
3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack
3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack
3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack
3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack
Specifications
Model Number :
BAKTH-3S4P-BQ-V1.0
Place of Origin :
Guangdong
Brand Name :
BAKTH
Packaging Details :
meet IATA
Supply Ability :
180000 Piece/Pieces per Month
Price :
CN¥147.81/pieces
Type :
smart electronics pcba
Supplier Type :
PCM for battery pack
Application :
battery pack
Cell Over charge voltage :
4.250V±0.025V
Cell Under discharge voltage :
2.750V±0.025V
Over current :
8A±0.2A
Over temperature :
65±3℃
continuous current :
5.0A
Size :
82*17*2.5mm±0.5mm
Impedance :
≤60mΩ
Current consumption :
≤800uA
Voltage(No -load) :
±0.5%
Port :
Shenzhen/Hongkong
Description

Smart PCB circuit board Printed Circuit Board/PCBA assembly BMS 3S4P for li ion battery pack3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack

3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack2.1 Basic protection item for PCM

NO

Items

Protection condition

Delay time

Release condition

1

Cell Over charge voltage Cell

1st level safty

4.250V±0.025V

2.0s±0.5s

4.08±0.050V

2nd level safty

4.35V±0.050V

2.0s±0.5s

permanent fail

2

Cell Under discharge voltage

1st level safty

2.750V±0.025V

2.0s±0.5s

3.000±0.050V

SUV Threshold

2.000V±0.025V

5.0s±0.5s

permanent fail

3

Over current

OCC1 Threshold

8A±0.2A

3.0s±0.5s

-50mA/5s

OCC2 Threshold

10A±0.2A

2.0s±0.5s

-50mA/5s

OCD1 Threshold

8A±0.2A

3.0s±0.5s

0mA/10s

OCD2 Threshold

10A±0.2A

2.0s±0.5s

0mA/10s

AOLD Threshold

30.0A±3.0A

10ms-30ms

0mA/5s

ASCC Threshold

54.00A±5.0A

350uS-600us

0mA/5s

ASCD1 Threshold

54.0A±5.0A

800uS-1000us

0mA/5s

ASCD2 Threshold

66A±5.0A

300uS-600us

0mA/5s

4

Over temperature

OTC Threshold

65±3℃

2.0s±0.5s

60±3℃

OTD Threshold

70±3℃

2.0s±0.5s

60±3℃

OTF Threshold

90±3℃

2.0s±0.5s

80±3℃

UTC Threshold

-3±3℃

2.0s±0.5s

-0±3℃

UTD Threshold

-25±3℃

2.0s±0.5s

-20±3℃

5

Charge Balanced

Cell Balance Threshold

3.600±0.050V

Balanced Cell Balance Window

100mV

Cell Balance Min

40mV

Cell Balance Interval

20s

6

continuous current

Charge current

5.0A

discharging current

5.0A

7

(L*W*H)Size

82*17*2.5mm±0.5mm

3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack3S4P BMS PCB PCM Smart PCB Circuit Board PCBA For Li Ion Battery Pack
