5S 10A Advanced Lithium Battery Guardian With SMBUS Connectivity And Dual-Range Thermal Regulation
5S 10A Advanced Lithium Battery Guardian With SMBUS Connectivity And Dual-Range Thermal Regulation
5S 10A Advanced Lithium Battery Guardian With SMBUS Connectivity And Dual-Range Thermal Regulation
5S 10A Advanced Lithium Battery Guardian With SMBUS Connectivity And Dual-Range Thermal Regulation
5S 10A Advanced Lithium Battery Guardian With SMBUS Connectivity And Dual-Range Thermal Regulation
5S 10A Advanced Lithium Battery Guardian With SMBUS Connectivity And Dual-Range Thermal Regulation
5S 10A Advanced Lithium Battery Guardian With SMBUS Connectivity And Dual-Range Thermal Regulation
5S 10A Advanced Lithium Battery Guardian With SMBUS Connectivity And Dual-Range Thermal Regulation
Specifications
Brand Name :
BAKTH/OEM/Neutral
Model Number :
BAKTH-0050100004-01
Certification :
Certified with RoHS / IEC62133 certification
Place of Origin :
Guangdong, China
MOQ :
1-200PCS
Price :
USD15.0-USD30.0/PCS
Payment Terms :
,T/T
Supply Ability :
Daily Delivery Capability: Approx. 1,800 units/day
Delivery Time :
10-15 working days
Packaging Details :
Standard Export Packing
Series Supported :
5S
Continuous Discharge Current (A) :
10A
Balancing Type :
Active Balancing / Passive Balancing (Optional)
Over charge detection voltage(Cell) :
4.250V±0.050V （Adjustable）
Over Discharge Detection Voltage(Cell) :
3.00V±0.020V（Adjustable）
Customization Available :
Yes
Warranty :
12 months
Description

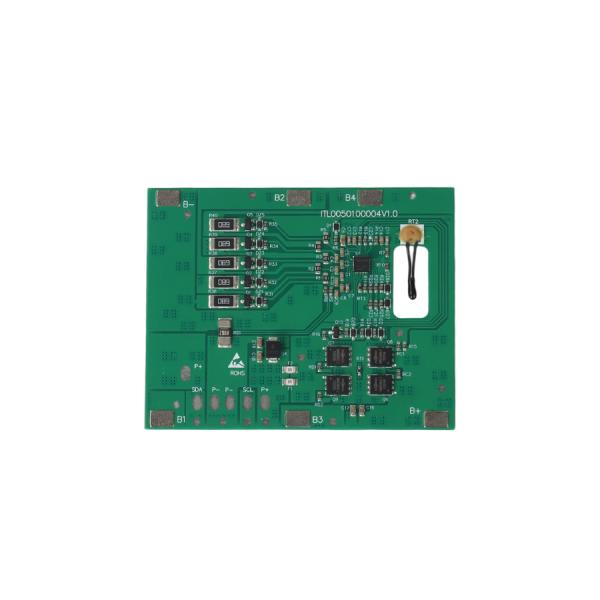

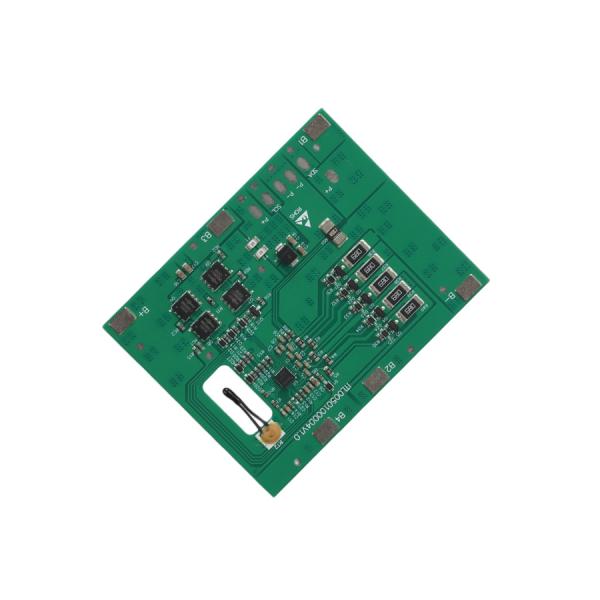

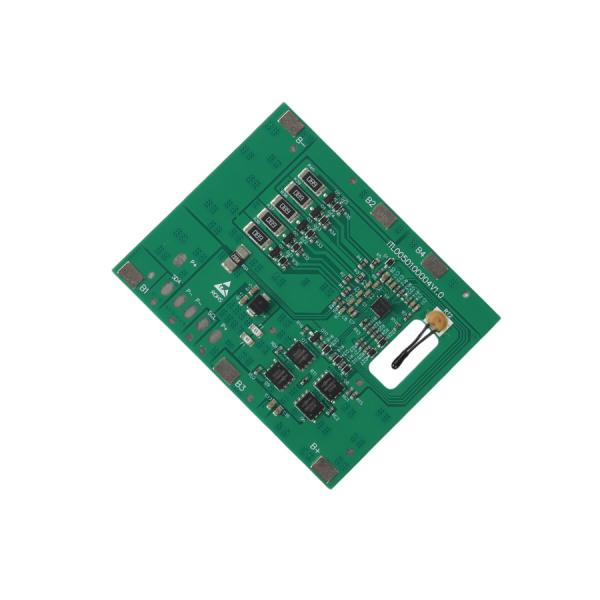

Engineered for next-generation power solutions, this 5S 10A lithium battery protection board delivers superior performance through its SMBUS communication protocol and intelligent thermal management system. Featuring an expanded operating range with adjustable discharge (-20°C to 65°C) and optimized charging (-5°C to 60°C) thresholds, it outperforms standard 4S configurations in high-demand scenarios. The 5-cell architecture provides enhanced voltage stability for applications like solar energy storage, marine electronics, and industrial IoT devices where both precision and durability are paramount.



Specifications

Compatibleinterface

SMBUS

 Continuous Discharge Current 10A
Over charge detection voltage(Cell)

4.250V±0.050V

Adjustable

 Dimensions

Length 80 mm

Width 63 mm

Height 4.1 mm
Over Discharge Detection Voltage(Cell)

3.00V±0.025V

Adjustable

 Compliant certification standards IEC62133
Over Current Discharge

11.0A±1.0A

Adjustable

 Type of Protective Board 5S lithium battery protection board
Over Current Charge

4.0A±0.5A

Adjustable

 Protection OV, UV, OC, SC, OT, Balance
Discharging Temperature

-20~65℃

Adjustable
  • Charge Temperature

-5~60℃

Adjustable



Key Features

  • Through the SMBUS communication protocol, real-time feedback on battery status (such as SOC, SOH, temperature) is provided, supporting data interaction with host devices for easy system integration.

  • Built-in protections for over-voltage, under-voltage, short-circuit, over-current, and temperature to ensure safe battery operation.

  • Supports active balancing function to extend battery pack life and improve consistency.

  • Modular design for easy integration, suitable for various industrial and solar system applications.


Application Scenarios

  • Energy Storage Systems (ESS)

  • Electric Power Tools
  • Home Solar Battery Systems
  • Drones and DIY Custom Li-ion Battery Packs


Warranty & Support

  • 12-month warranty with lifetime technical support

  • 100% tested before shipment to ensure safety and reliability

  • Dedicated account manager and technical support with 48-hour response
