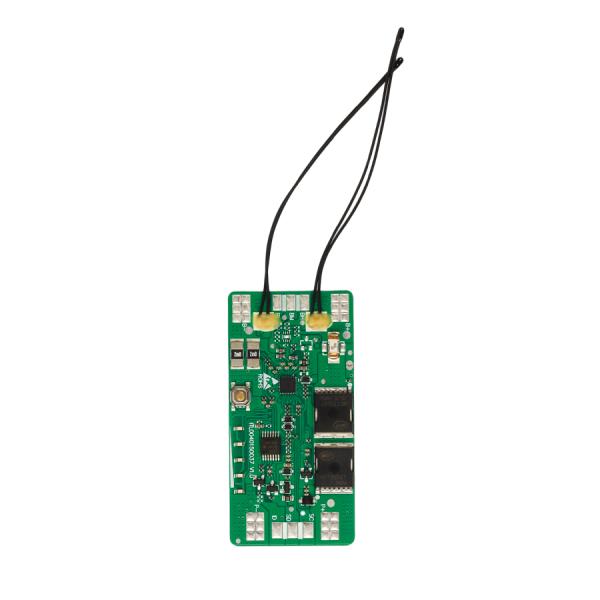

4S 10A Smart BMS With SMBUS Interface And Adaptive Thermal Protection For Lithium Batteries
4S 10A Smart BMS With SMBUS Interface And Adaptive Thermal Protection For Lithium Batteries
4S 10A Smart BMS With SMBUS Interface And Adaptive Thermal Protection For Lithium Batteries
4S 10A Smart BMS With SMBUS Interface And Adaptive Thermal Protection For Lithium Batteries
4S 10A Smart BMS With SMBUS Interface And Adaptive Thermal Protection For Lithium Batteries
4S 10A Smart BMS With SMBUS Interface And Adaptive Thermal Protection For Lithium Batteries
4S 10A Smart BMS With SMBUS Interface And Adaptive Thermal Protection For Lithium Batteries
4S 10A Smart BMS With SMBUS Interface And Adaptive Thermal Protection For Lithium Batteries
Specifications
Brand Name :
BAKTH/OEM/Neutral
Model Number :
BAKTH-0040150037-01
Certification :
Certified with RoHS / IEC62133/UL2054 certification
Place of Origin :
Guangdong, China
MOQ :
1-200PCS
Price :
USD15.0-USD30.0/PCS
Payment Terms :
,T/T
Supply Ability :
Daily Delivery Capability: Approx. 1,800 units/day
Delivery Time :
10-15 working days
Packaging Details :
Standard Export Packing
Series Supported :
4S
Continuous Discharge Current (A) :
10A
Balancing Type :
Active Balancing / Passive Balancing (Optional)
Over charge detection voltage(Cell) :
4.250V±0.050V （Adjustable）
Over Discharge Detection Voltage(Cell) :
2.500V±0.050V（Adjustable）
Customization Available :
Yes
Warranty :
12 months
Description

This intelligent 4S 10A battery management system (BMS) features advanced SMBUS communication and dynamic temperature control, making it ideal for lithium battery packs in demanding environments. With programmable discharge (-20°C to 65°C) and charge (-5°C to 50°C) temperature limits, it automatically adjusts protection parameters to optimize performance and safety. The 10A-rated design is particularly suited for mid-power applications including robotics, backup power systems, and portable industrial equipment where precise battery monitoring and protection are critical.



Specifications

Compatibleinterface

SMBUS

 Continuous Discharge Current 10A
Over charge detection voltage(Cell)

4.250V±0.050V

Adjustable

 Dimensions

Length 65 mm

Width 32 mm

Height 4.0 mm
Over Discharge Detection Voltage(Cell)

2.50V±0.025V

Adjustable

 Compliant certification standards IEC62133/UL2054
Over Current Discharge

15.0A±0.5A

Adjustable

 Type of Protective Board 4S lithium battery protection board
Over Current Charge

15.0A±0.5A

Adjustable

 Protection OV, UV, OC, SC, OT, Balance
Discharging Temperature

-20~65℃

Adjustable
  • Charge Temperature

-5~50℃

Adjustable



Key Features

  • Through the SMBUS communication protocol, real-time feedback on battery status (such as SOC, SOH, temperature) is provided, supporting data interaction with host devices for easy system integration.

  • Built-in protections for over-voltage, under-voltage, short-circuit, over-current, and temperature to ensure safe battery operation.

  • Supports active balancing function to extend battery pack life and improve consistency.

  • Modular design for easy integration, suitable for various industrial and solar system applications.


Application Scenarios

  • Energy Storage Systems (ESS)

  • Electric Power Tools
  • Home Solar Battery Systems
  • Drones and DIY Custom Li-ion Battery Packs


Warranty & Support

  • 12-month warranty with lifetime technical support

  • 100% tested before shipment to ensure safety and reliability

  • Dedicated account manager and technical support with 48-hour response
