1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH 1100
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
17,000 USD
Payment Terms :
L/C, T/T
Supply Ability :
50 sets /month
Delivery Time :
40 working days
Packaging Details :
with plastic film cover
Material :
PPGI/GI /Alunimun
Tile type :
Galvanized/color-coated/cold-rolled/Aluminium zinc steel sheet
Voltage :
380V 50Hz 3phases
Use :
Roof
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support
Dimension(l*w*h) :
8700mm*1500mm*1500mm
Control system :
PLC control system
Roller material :
quenched,45# steel,CNC machining,heat-treatment and hard chrome 0.05mm
Cutting blade material :
Cr 12 Mov
Description

1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material

1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material

Description

This model of machine is popur all over the world.

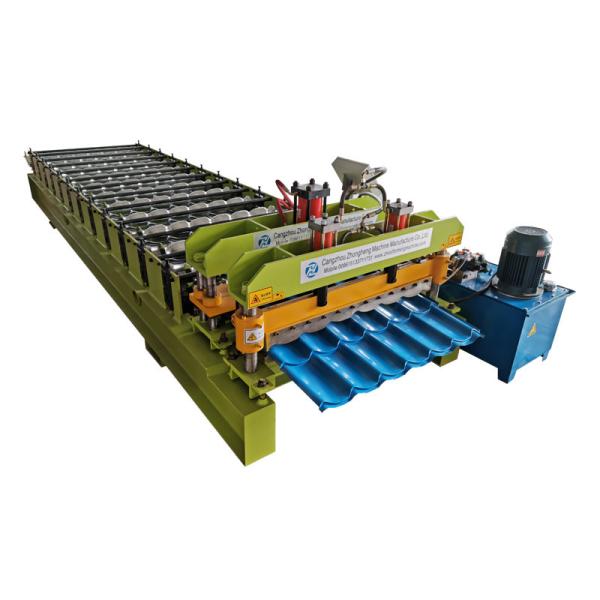

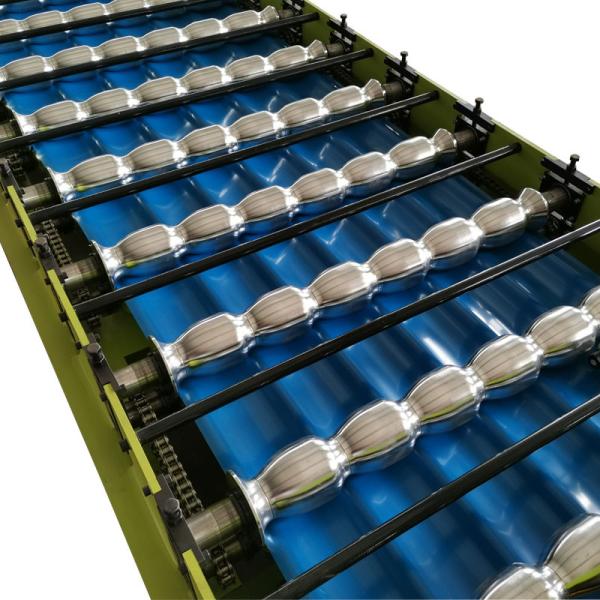

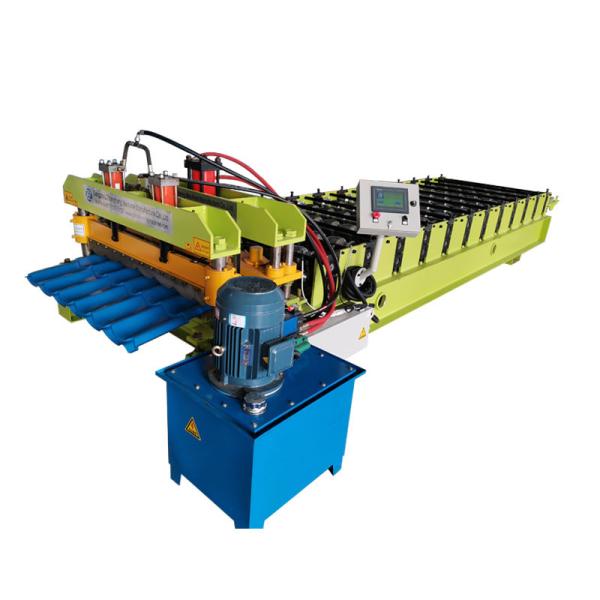

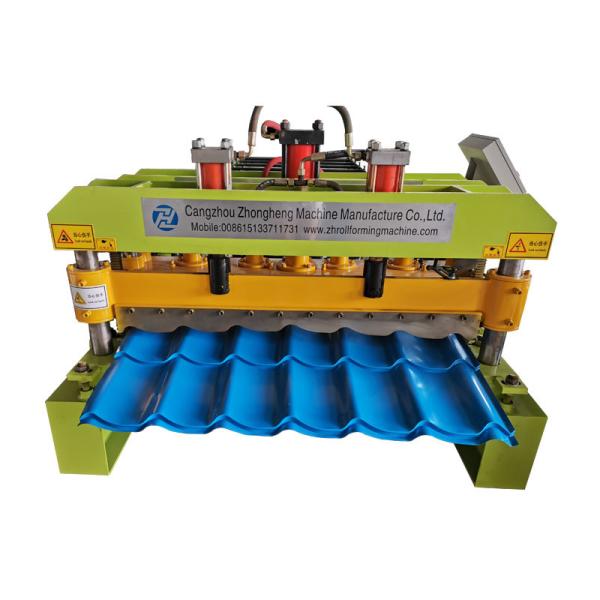

Machine pictures

1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material

Speficiation

1. Coil Type Pre-painted coil,Galvanized steel,Aluminum
2. Width 1200mm
3. Thickness range 0.3-0.6mm
4. Yield stress(mm) Q235
5. Effective width 1100mm

1

Power Requirement

 Voltage 380v/3ph/50hz
Main Motor power 4kw
Cutter power 3kw
2 Forming speed 2-3m/min
3 Forming stations 15 row
4 Forming shaft diameter 70mm
5 Chains 1 inch
6 Type of cutting Roll formed and length-set cutting
7 Control system PLC control
8 Install dimension(depend on the final design) 7.5m×1.5m×1.2m
9 Total weight (Approx) 4.8T

1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material

Components of line

1) Manual De-coiler ------------------------------------------------------ 1 set

2) Roll Forming System--------------------------------------------------- 1set

3) Cutting Device---------------------------------------------------------- 1set

4) Hydraulic System------------------------------------------------------- 1 set

5) PLC Control System----------------------------------------------------1 set

6) Run out table ----------------------------------------------------------- 1 set

Machine loading

1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material1100 Arc glazed tile roll forming machine roof tile making machine for 1250mm material
