Specifications
Brand Name :
MST
Model Number :
MST corrugated and trapezoidal
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD22000-28000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
300 sets/months
Delivery Time :
25working days
Packaging Details :
Waterproof plastic film cover
Conditon :
1000
Material :
PPGI
Voltage :
380V 50HZ
Chains :
double 0.6 inch
PLC :
Panasonic
Warranty :
2 years
Description

North America Popular Galvanized Steel Double Layer Roof Sheet Cold Roll Forming Machine

Description

This machine make the two kinds of panels are hot for Bolivia.Popular model there.We had exported 5 sets of these machine there.

Competitive Advantage:
1. Full Automatic
2. With CE certificate
3. Save money
4. excellent quality
5. Operate easily
Specification

No.

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

Rollers

Up layer:13 rows

Down layer:13rows

4

Dimensions

6800*1550*1910mm

5

Power

4+4kw

6

Thickness of the plate

0.3-0.8mm

7

Productivity

10-15m/min

8

Material of the cutting blade

Cr12

9

Diameter of the roller

Φ75mm

10

Weight

About 6.5T

11

Voltage

380V 50Hz 3phases

15

Control system

PLC control

Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting

→Products receiving
North America Popular Galvanized Steel Double Layer Roof Sheet Cold Roll Forming Machine
MachineComponents

No

Name

Quantity

Remarks

1

Decoiler

1set

Up to customer

2

Main machine

Pre-cutting device

1set

Up to customer

Feeding device

1set

Roll forming system

1set

Post cutting device

1set

Hydraulic system

1set

3

Electric control system

1set

4

Supporter/Automatic Stacker

1set

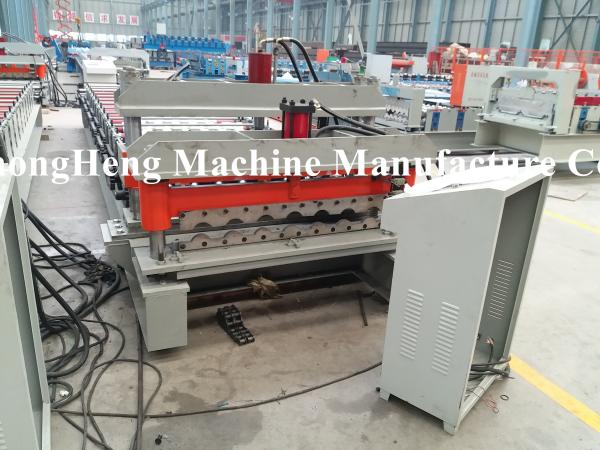

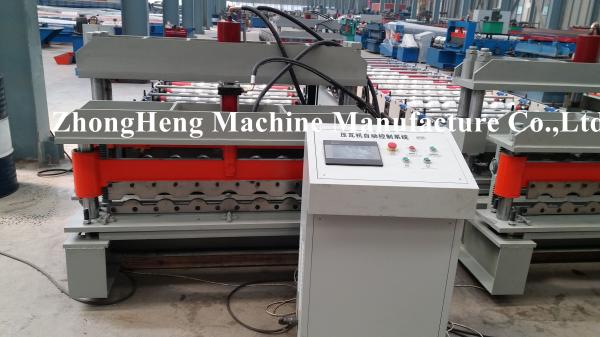

Machine picture

North America Popular Galvanized Steel Double Layer Roof Sheet Cold Roll Forming MachineNorth America Popular Galvanized Steel Double Layer Roof Sheet Cold Roll Forming MachineNorth America Popular Galvanized Steel Double Layer Roof Sheet Cold Roll Forming Machine
