Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH corrugated and trapezoidal
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD22000-28000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
300 sets/months
Delivery Time :
25working days
Packaging Details :
Waterproof plastic film cover
Condition :
new
Certificate :
SGS / CE
Forming Stations :
18/18
Speed :
10-15 m/min
PLC :
Panasonic
Motor :
5.5kw
Description

Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft

Competitive Advantage:
1. Full Automatic
2. With CE certificate
3. Save money
4. excellent quality
5. Operate easily


Specification

No.

Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft

1

Suitable to process

Color steel plate

2

Width of the plate

1200mm

3

Rollers

Up layer:18 rows

Down layer:18rows

4

Dimensions

9800*1550*1910mm

5

Power

5.5+4kw

6

Thickness of the plate

0.3-0.8mm

7

Productivity

10-15m/min

8

Material of the cutting blade

Cr12

9

Diameter of the roller

Φ75mm

10

Weight

About 8.5T

11

Voltage

380V 50Hz 3phases

15

Control system

PLC control

Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting

→Products receiving
Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
MachineComponents

No

Name

Quantity

Remarks

1

Decoiler

1set

Up to customer

2

Main machine

Pre-cutting device

1set

Up to customer

Feeding device

1set

Roll forming system

1set

Post cutting device

1set

Hydraulic system

1set

3

Electric control system

1set

4

Supporter/Automatic Stacker

1set

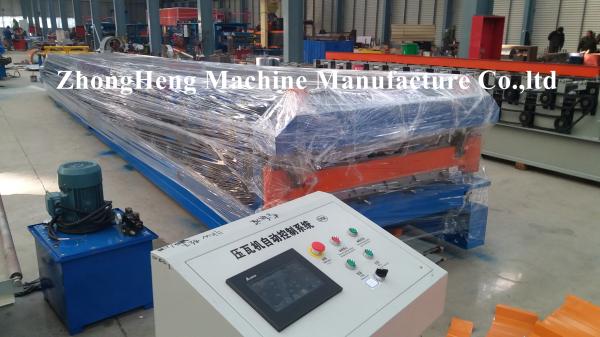

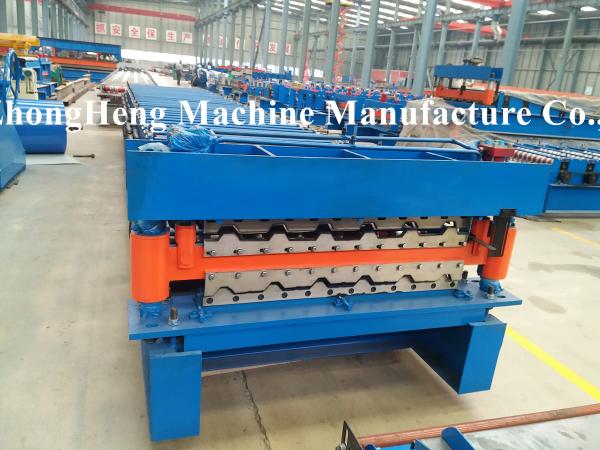

Machine picture

Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft

Loading pictures


Corrugated and Box Type Roofing Sheet Roll Forming Machine with 75 mm solid shaft
