16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
Specifications
Brand Name :
ZH
Model Number :
ZH-686
Certification :
CE
Place of Origin :
Hebei , China
MOQ :
1 set
Price :
USD15000-18000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
30 days
Packaging Details :
One set machine needs one 40GP for shipment , PLC system packed with Carton box .
Thickness :
0.25mm-0.6mm
Feature :
Advanced design
Special :
Hydraulic cutting
Power :
4+4KW
Volgate :
380V or custom
Roller :
No.45 steel with heat treatment
Warranty :
1 year free
Service :
Whole life
Description

16 stations 686 IBR roof sheet roll forming machine with CNC cutting

Description

This model of roll forming machine is standard model of IBR roof sheet forming machine.

It is widely used in South africa market.

Specifications

Description Specification
Main moter power 4KW
Hydraulic station power 4KW
Hydraulic oil pump CB-E310
Sprocket P-25.4
Roller station 16
Yield strength 32MPa
Diameter of principal axis 75MM
Material of roller 45#steel hard chrome plating
Processing speed 8m/min
Thickness 0.3-1mm
Installation dimension about(L*W*H) 7.5*1.5*1.2M
Total weight 3.8T
Equipment parts includes:forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter,product supporter


Advantage of 16 stations 686 IBR roof sheet roll forming machine with CNC cutting

  • high accuracy
  • easy control
  • effective and convenient
  • energy-saving

Components

Decoiler 1 set
Guiding Device 1 set
Roll Forming 1 set
Cutting Device 1 set
Hydraulic System 1 set
PLC control system 1 set
Run out table 1 set

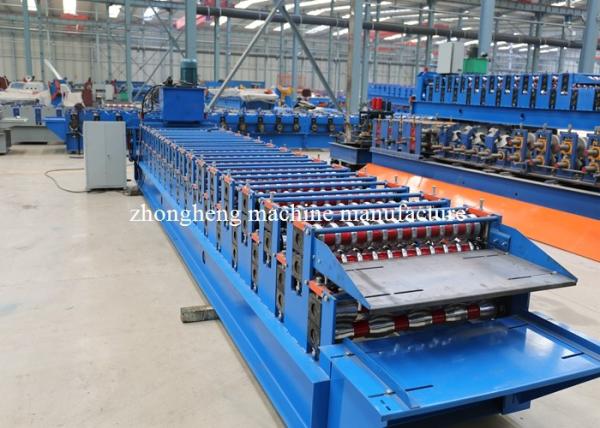

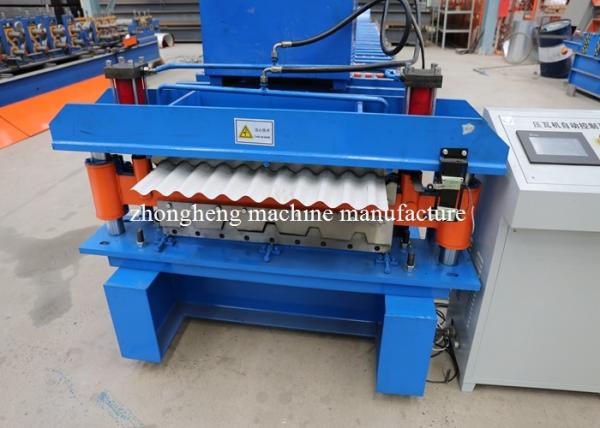

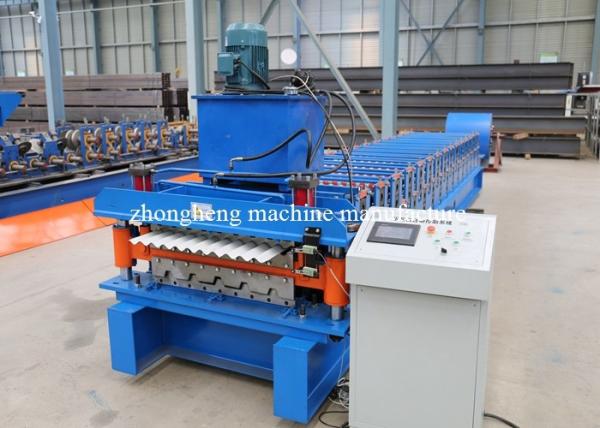

Machine pictures for reference

16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting16 Stations 686 Ibr Roof Sheet Roll Forming Machine With Cnc Cutting
