Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
Specifications
Brand Name :
ZHONGHENG
Model Number :
ZH corrugated and trapezoidal
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD22000-28000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
300 sets/months
Delivery Time :
25working days
Packaging Details :
Waterproof plastic film cover
Use :
Roof and wall
Material :
PPGI
Speed :
10-15 m/min
Dimensions :
9800*1550*1910mm
Motor :
5.5kw
Weight :
85000kg
Description

Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness

Technical Specification

No

Technical Specification

1

Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way

The steel coil is uncoiled by hand. Loading capacity:5T, Inner diameter: 500-508mm

2

Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process

It can guarantee that the products are neat

Parallel and everything is uniformity

Please refer to the equipment regulation to know the function of locate angle iron.

3

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating

The polished surface and the heat treatment towards the molds also can keep the molding

Plate surface smooth and not easy to be marked when it is being stamped

4

Hydraulic System

Computer Control Cabinet

Power:4kw,Hydraulic oil: 40#

Hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one

The system is easy to operate and use

PLC:EURA

5

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

6

Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products

Specification

1

Suitable to process

Color steel plate

2

Width of the plate

1000mm

3

Rollers

11rows

4

size

5800*1450*1510mm

5

Main moter power

3kw

6

Hydraulic unit power

3kw

7

Thickness of the plate

0.3-0.6mm

8

Productivity

15-20m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

Rolling material

Forging Steel 45#

12

Material of the cutting plate

Cr12

13

Hydraulic

40#

14

Processing precision

Within 1.00mm

15

system

PLC vector control

Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→

Products receiving
Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness

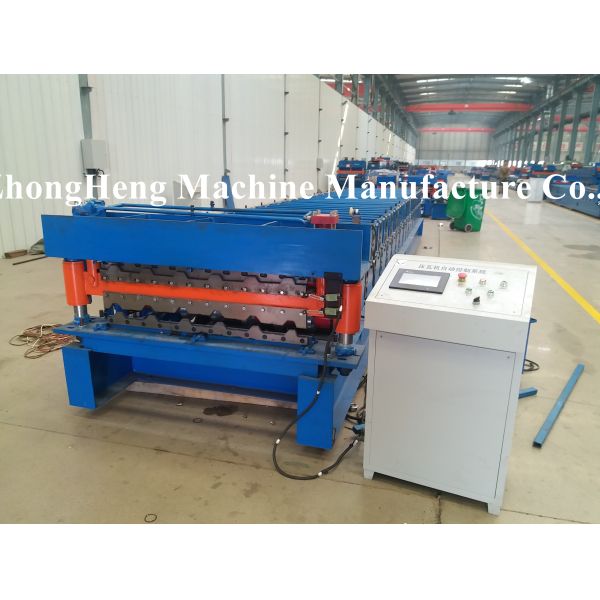

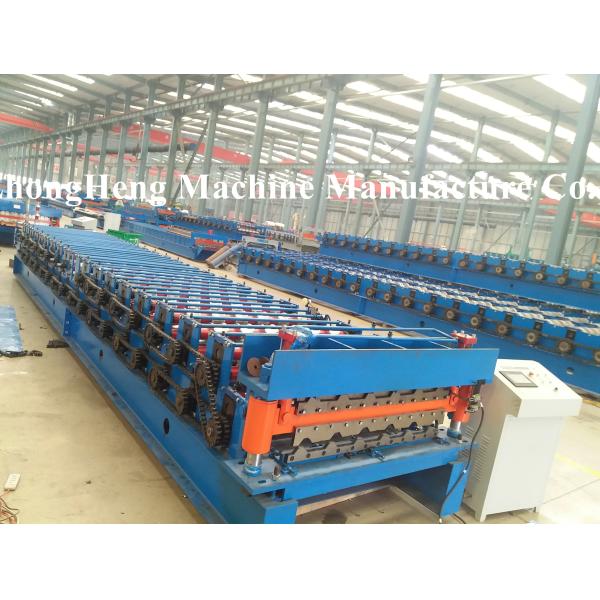

Machine picture

Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thicknessColor Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness

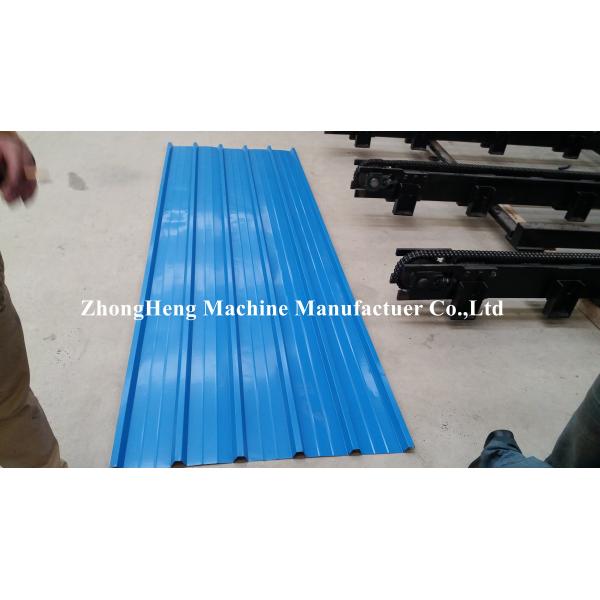

Sample show

Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness

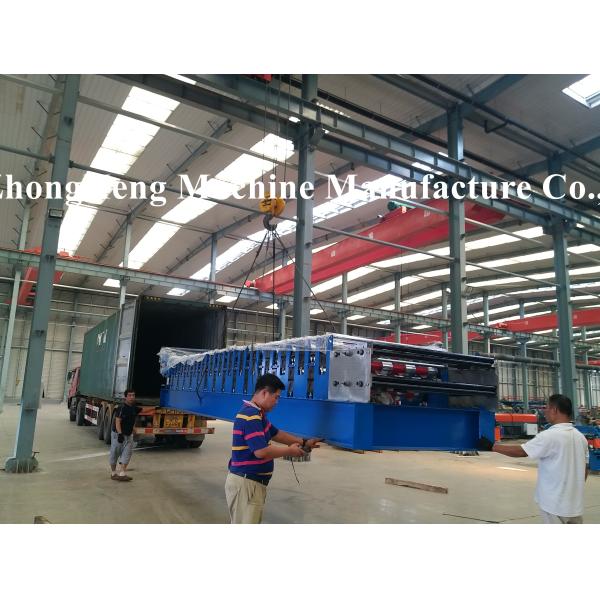

Loading pictures


Color Steel Double deck Roofing Sheet Roll Forming Machine For 0.3-0.8 mm thickness
