High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity
High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity
High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity
High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity
Specifications
Brand Name :
HAOAN
Model Number :
HA-160S
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
PLC :
Mitsubishi
Turntable Station :
14
Printing Accuracy :
±0.03mm (depending on product accuracy)
Steel Sheet Size :
100mm * 215mm
Print Area :
75mmx75mm
Environmental Oil Cup :
100MM
Working Air Pressure :
0.4~0.6Mpa
Capacity :
Approximately 1800-2000PCS/h
Description

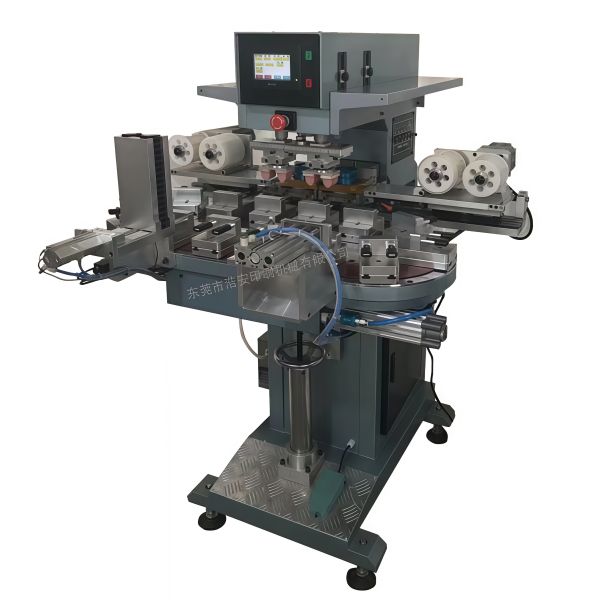

High Precision PLC Controlled Semi Automatic Pad Printing Machine
This semi-automatic pad printing machine features advanced PLC control and digital human-machine interface operation, delivering high precision printing with a capacity of 1800-2000 pieces per hour.
Key Features
  • Simultaneous printing of 2 products with precision rotary table drive
  • High repetition accuracy with ±0.03mm printing precision
  • Fast operation cycle of 4-5 seconds with excellent stability
  • Manual feeding with automatic manipulator unloading
  • Advanced rubber head cleaning system
  • PID controlled hot air system for optimal performance
Technical Specifications
Component Specification
PLC System Mitsubishi, Japan
Touch Screen Mitsubishi, Japan
Rubber Head Lift Drive Festo Cylinder, Germany
Rubber Head Back-and-Forth Drive Festo Cylinder, Germany
Electromagnetic Valve SMC, Japan
Loading/Unloading System Cylinder Automatic
Rubber Head Cleaning Motor + Cylinder
Feed Photoelectric Switch Japan
Hot Air System PID Control
Turntable Stations 14
Printing Accuracy ±0.03mm
Fixture (One Out Two) 4 Models with 6MM 2 Positioning Pins
Workpiece Height 0-60mm
Print Area 75mm x 75mm
Steel Sheet Size 100mm x 215mm
Environmental Oil Cup 100mm
Working Air Pressure 0.4-0.6Mpa
Work Cycle 4-5 Seconds
Production Capacity 1800-2000 PCS/Hour
Machine Weight 350Kg
Power Supply 220V 50/60Hz 2KW
High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, we are professional manufacturers of automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our solutions meet printing requirements for various shapes and materials across multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories.
Our machinery is exported to Europe, United States, South Korea, Middle East, South Africa, Mexico, and other regions, earning high trust from domestic and international customers. We adhere to core principles of efficiency, excellence, energy conservation, integrity, and win-win partnerships.
With a strong R&D team, we provide customized machinery solutions, professional technical training, and comprehensive support services to ensure customer satisfaction and operational excellence.
High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity
Packaging and Shipping
High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity
Frequently Asked Questions
Q. How long is the machine's warranty period?
A. We offer a 2-year warranty and long-term service support.
Q. What technical support services are provided after purchase?
A. We provide on-site installation service and professional engineer training.
Q. How will you help us resolve after-sales repair issues if the machine malfunctions?
A. In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
Q. What inks does the machine support?
A. The machine supports UV-based environmentally friendly inks and imported eco-friendly ink systems.
Q. What certifications can you provide?
A. We hold ISO9001, SGS, and RoHS certifications for quality and environmental standards.
