3 - 8 Color Semi Automatic Pad Printing Machine Golf Ball Printing Machine
3 - 8 Color Semi Automatic Pad Printing Machine Golf Ball Printing Machine
3 - 8 Color Semi Automatic Pad Printing Machine Golf Ball Printing Machine
3 - 8 Color Semi Automatic Pad Printing Machine Golf Ball Printing Machine
Specifications
Brand Name :
HAOAN
Model Number :
HA-136
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Plate Size :
100×100 mm
Printing Area :
60×60mm
Max Workpiece Height :
200mm
Print Speed :
800 pcs/hour
Power :
110V/220V 50/60HZ, 40W, 6Bar
Dimension :
770×770×1400
Description

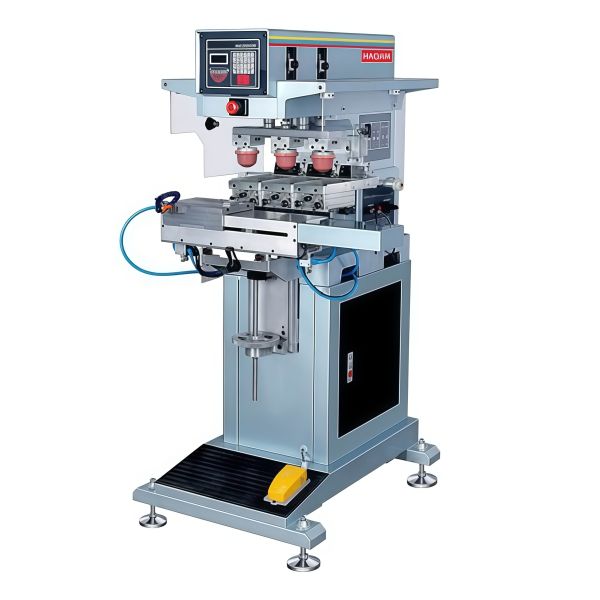

Golf Ball Printing Machine 3-8 Color Semi-automatic Pad Printing Machine
This semi-automatic pad printing machine is specifically designed for multi-color printing applications, supporting 3 to 8 color printing operations with precision and efficiency.
Product Features
  • Specialized multi-color printing capability (3-8 colors)
  • Oil basin type ink supply system for easy operation
  • Microelectronic keyboard control interface
  • Independent adjustment of pad up/down stroke and speed
  • Worktable adjustable in X, Y, Z axes and angle
  • Wide application range with high printing efficiency
  • Suitable for various surfaces: flat, curved, and irregular
  • Widely used in electronics, electrical appliances, hardware, plastic, toys, stationery industries
Construction & Build Quality
Heavy-duty square tube frame construction ensures solid structural integrity. Features baked paint finish for bright appearance, cast aluminum chassis, and CNC-processed oxidized accessories for elegant durability.
Ink Supply System
Oil basin type supply system offers large printing area, easy installation and disassembly, and flexible operation. Simply pour prepared ink directly into the oil basin to begin printing.
Multi-Color Direct Push Shuttle Table
High-quality alloy construction with precise pneumatic component drive ensures stable, reliable performance with accurate movement and excellent registration printing. Ideal for two-color overprinting of general-sized workpieces.
Technical Specifications
Parameter Specification
Plate Size (mm) 100×100
Printing Area (mm) 60×60
Max Workpiece Height (mm) 200
Print Speed (pcs/hour) 800
Power Requirements 110V/220V 50/60HZ, 40W, 6Bar
Dimensions (mm) 770×770×1400
Weight (kg) 145
3 - 8 Color Semi Automatic Pad Printing Machine Golf Ball Printing Machine 3 - 8 Color Semi Automatic Pad Printing Machine Golf Ball Printing Machine 3 - 8 Color Semi Automatic Pad Printing Machine Golf Ball Printing Machine
Manufacturer Profile
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional automated printing equipment manufacturer established in 2016. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed to meet diverse printing requirements across various shapes and materials.
Our machinery serves multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories. We export to Europe, United States, South Korea, Middle East, South Africa, Mexico, and other regions, earning trust from domestic and international customers.
We adhere to five core principles: efficiency, excellence, energy conservation, integrity, and win-win partnerships. Our professional R&D team creates customized solutions tailored to specific customer requirements, continuously innovating to develop intelligent and efficient products. Beyond equipment supply, we provide comprehensive technical training and support services.
3 - 8 Color Semi Automatic Pad Printing Machine Golf Ball Printing Machine
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported eco-friendly ink formulations.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications.
