3 Color Pneumatic Semi Automatic Pad Printing Equipment 60x60mm Printing Area
3 Color Pneumatic Semi Automatic Pad Printing Equipment 60x60mm Printing Area
3 Color Pneumatic Semi Automatic Pad Printing Equipment 60x60mm Printing Area
3 Color Pneumatic Semi Automatic Pad Printing Equipment 60x60mm Printing Area
Specifications
Brand Name :
HAOAN
Model Number :
HA-130
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Plate Size :
100*100 mm
Printing Area :
60*60 mm
Max Workpiece Height :
180 mm
Print Speed :
1500 pcs/hour
Power :
110V/220V 50/60HZ, 40W, 6Bar
Dimension :
870*775*1400
Printing Color :
3 Colors
Weight :
180kg
Description

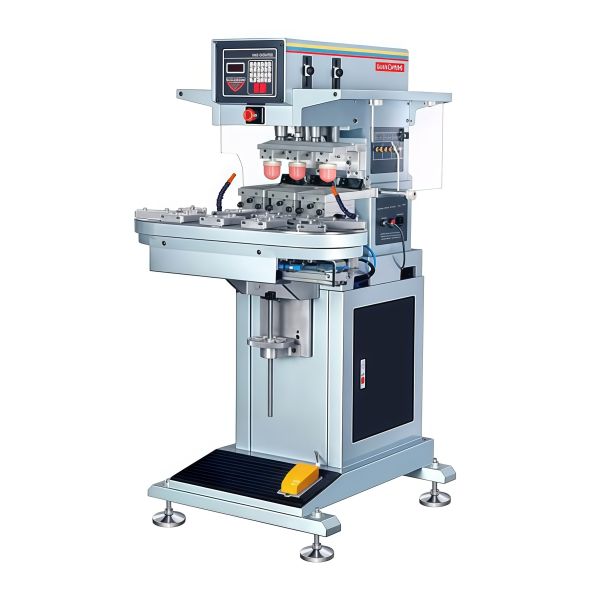

3 Color Pneumatic Semi-automatic Pad Printing Machine
This advanced pad printing machine is specifically engineered for multi-color applications, delivering exceptional 3-color printing capabilities across various surfaces and industries.
Product Features
  • Specialized multi-color printing capability for 3-color applications
  • Oil basin type ink supply system for efficient operation
  • Microelectronic keyboard control interface with intuitive operation
  • Independent adjustment of pad up/down stroke and speed control
  • X, Y, Z axis and angle adjustable workbench for precise positioning
  • Wide application range with high printing efficiency
  • Suitable for flat, curved, and irregular surface printing
  • Ideal for electronics, electrical appliances, hardware, plastic, toys, and stationery industries
Construction & Craftsmanship
Built with thickened square tube rack for maximum stability and durability. Features baked paint surface for bright finish, die-cast aluminum chassis, and CNC-processed oxidized accessories for elegant appearance and long-lasting performance.
Ink Supply System
Oil basin type supply system offers large printing area, easy installation/disassembly, and flexible operation. Pre-adjusted ink can be directly poured into the oil basin for immediate printing.
Multi-color Swivelling Belt Workbench
Constructed with die-casting aluminum alloy main components for superior durability. Features grinding grade slide rails and innovative positioning design ensuring precise multi-color registration. German-quality precision pneumatic components provide powerful performance, while specialized push system and shock absorption ensure stable, reliable operation with smooth, accurate, high-efficiency printing.
Technical Specifications
Parameter Specification
Plate Size 100 × 100 mm
Printing Area 60 × 60 mm
Maximum Print Height 180 mm
Printing Colors 3 Colors
Print Speed 1500 pieces/hour
Power Requirements 110V or 220V, 50/60Hz, 40W, 6Bar
Dimensions 870 × 775 × 1400 mm
Weight 180 kg
3 Color Pneumatic Semi Automatic Pad Printing Equipment 60x60mm Printing Area 3 Color Pneumatic Semi Automatic Pad Printing Equipment 60x60mm Printing Area
About Dongguan Hao'an Printing Machinery
Established in 2016, Dongguan Hao'an Printing Machinery Co., Ltd. specializes in manufacturing automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our solutions meet diverse printing requirements across various shapes and materials, serving industries such as cosmetics, daily necessities, food, medical supplies, and automotive accessories.
Our machinery is exported worldwide to Europe, United States, South Korea, Middle East, South Africa, Mexico, and other regions, earning trust from domestic and international customers. We adhere to five core principles: efficiency, excellence, energy conservation, integrity, and win-win partnerships.
With a strong professional R&D team, we provide customized machinery solutions tailored to specific customer requirements. Our commitment to innovation drives product intelligence and efficiency. Beyond equipment supply, we offer comprehensive technical training and support services to ensure customer success.
3 Color Pneumatic Semi Automatic Pad Printing Equipment 60x60mm Printing Area
Frequently Asked Questions
How long is the machine's warranty period?
We offer a comprehensive 2-year warranty with long-term service support.
What technical support services are provided after purchase?
We provide on-site installation services and professional engineer training to ensure optimal operation.
How will you help us resolve after-sales repair issues if the machine malfunctions?
For machine malfunctions, we provide immediate video and email communication support. On-site service is available when necessary to resolve issues promptly.
What inks does the machine support?
Our machines use UV-based environmentally friendly inks and imported eco-friendly ink solutions.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications, ensuring quality and environmental compliance.
