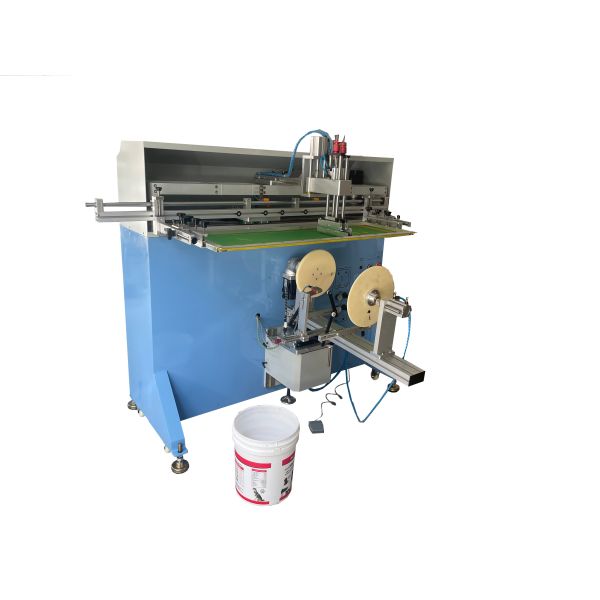

Servo Circular Semi Auto Screen Printing Machine For Plastic Drums
Servo Circular Semi Auto Screen Printing Machine For Plastic Drums
Specifications
Brand Name :
HAOAN
Model Number :
HA-1200SF
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Air Source Pressure :
5-7bar
Power :
AC220V 50Hz 60w/1KW
Printing Speed :
500-600pcs/Hour
Printing Diameter :
ø380mm
Machine Weight :
320Kg
Machine Dimensions :
L1730 × W1250 × H1730mm
Description
Servo Circular Semi Auto Screen Printing Machine For Plastic Drums
The HA-1200SF circular screen printing machine is a high-performance servo-driven screen printer, widely applicable in various industries including daily necessities (large barrels, oil cans), toys, electronics, electrical appliances, plastics, leather, metals, glass, light industry and food packaging. It is designed to deliver stable, accurate and efficient printing performance for diverse product surfaces.
Key Features
  • Comprehensive Printing Capabilities: Capable of printing on cylindrical, conical and large arc surfaces
  • High Precision Positioning: Electric eye induction at all positions for accurate positioning
  • Stable Operation: Touch screen and PLC controller for reliable long-term performance
  • Dual Preset Programs: Single-cycle printing and fully automatic printing options
  • High-Quality Pneumatic Components: SMC Japan components for smooth, durable power
  • User-Friendly Operation Panel: Sensitive light-touch control with quick response
Technical Specifications
Parameter Specification
Printing Color Multi-color
Printing Speed 600-800 times/hour
Screen Frame Size 600mm * 1200mm
Printing Area Φ350mm Screen Printing Diameter
Maximum Printed Diameter ø380mm
Maximum Printing Size 1150 * 350mm
Drive System Servo Motor
Control System PLC
Power Supply 220VAC / 1 Phase
Connected Load 1800W
Air Pressure 5-7bar
Machine Dimensions 1790 * 1000 * 1750mm
Machine Weight 320Kg
Servo Circular Semi Auto Screen Printing Machine For Plastic Drums
About Dongguan Hao'an Printing Machinery
Established in 2016, we are a professional manufacturer of automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our machinery meets printing requirements for various shapes and materials and is widely used in cosmetics, daily necessities, food, medical supplies, and automotive accessories.
Our equipment is exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning high trust from domestic and international customers. We adhere to core values of efficiency, excellence, energy conservation, integrity, and win-win partnerships.
With a strong R&D team, we provide customized machinery solutions, professional technical training, and comprehensive support services to ensure customer satisfaction.
Servo Circular Semi Auto Screen Printing Machine For Plastic Drums
Packaging & Shipping
Servo Circular Semi Auto Screen Printing Machine For Plastic Drums Servo Circular Semi Auto Screen Printing Machine For Plastic Drums
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
