High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
Specifications
Brand Name :
HAOAN
Model Number :
HA-400T
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Air Source Pressure :
4~6KG
Power :
220V 50–60Hz 3KW / 3000W
Printing Speed :
800–1000 pcs/h (1-color) 600–800 pcs/h (multi-color)
Printing Diameter :
Ø15–120 mm
Machine Size :
L850*W900*H1600 mm
Weight :
260 kg
Description
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer

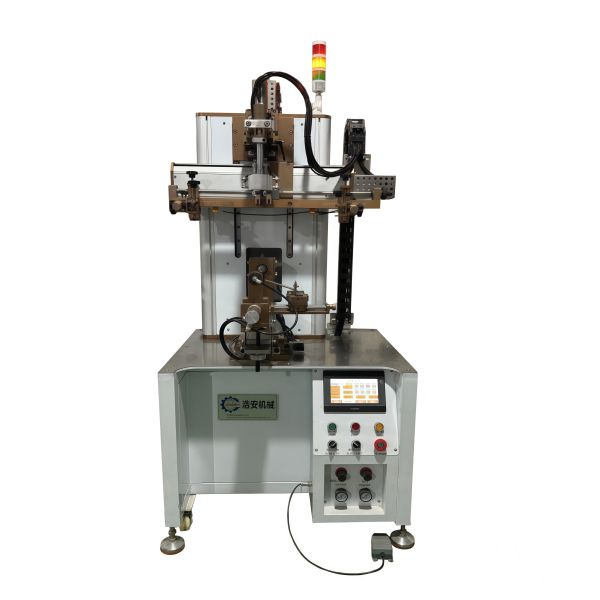

This high-speed multi-color rotary semi-automatic screen printing machine with servo control is specifically engineered for cylindrical container printing. Compatible with plastic, glass, metal, and various other materials, it features intelligent PLC control with a high-performance touch screen interface.
Advanced Control System
Equipped with German LEUZE sensors for precise multi-color registration, the machine utilizes servo control for vertical movement, left-right screen movement (Wecon system with adjustable stroke), and tube rotation (Wecon system, gear-free). Combined with a variable speed device, this creates a highly stable drive system with excellent synchronization and automatic positioning capabilities.
Key Features
  • Exceptional flexibility with fast and easy fixture changes
  • Same main body structure with only fixture replacement required
  • High precision printing with exquisite results
  • Brand-new drive system ensuring high stability and synchronization
Technical Specifications
Item Specification Brand Origin
1. Touch Screen 7 inch Wecon China
2. PLC 3SA-30MT Wecon China
3. Vertical Servo Motor 750W Wecon China
4. Left-Right Screen Servo Motor 750W Wecon China
5. Rotation Servo Motor 750W Wecon China
6. Positioning Sensor -- LEUZE Germany
7. Linear Guide HGW15CC HIWIN Taiwan, China
8. Solenoid Valve DC24V AirTAC Taiwan, China
9. Air Pressure 4-6 KG -- --
10. Power 220V 50-60Hz 3KW / 3000W -- --
11. Printing Speed 800-1000 pcs/h (1-color)
600-800 pcs/h (multi-color)		 -- --
12. Printing Diameter Ø15-120 mm -- --
13. Machine Size L850 * W900 * H1600 mm -- --
14. Machine Weight 260 kg -- --
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed to meet printing requirements for various shapes and materials.
Our machinery is widely used across multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories. We export to numerous countries and regions including Europe, the United States, South Korea, the Middle East, South Africa, and Mexico, earning high trust from domestic and international customers.
We adhere to five core concepts: efficiency, excellence, energy conservation, integrity, and win-win cooperation. Our strong professional R&D team can customize machinery according to specific customer requirements and continuously innovate to make products more intelligent and efficient. Beyond providing excellent equipment, we offer professional technical training and comprehensive support services.
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
Packaging and Shipping
High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer High Speed Rotary Screen Printing Machine Semi Automatic Multi Color Screen Printer
Frequently Asked Questions
Q. How long is the machine's warranty period?
A. We offer a 2-year warranty and long-term service
Q. What technical support services are provided after purchase?
A. We provide on-site installation service and professional engineer training
Q. How will you help us resolve after-sales repair issues if the machine malfunctions?
A. In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
Q. What inks does the machine support?
A. We use UV-based environmentally friendly inks, imported environmentally friendly inks
Q. What certifications can you provide?
A. We have ISO9001, SGS, and RoHS certifications
