Specifications
Brand Name :
HAOAN
Model Number :
HA-350CNC
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Air Source Pressure :
4~6KG
Power :
220V 50-60HZ 3.5KW
Printing Speed :
800~1000 pcs/hour
Printing Diameter :
Φ15-100 mm
Machine Size :
L850*W900*H1600 mm
Weight :
300 kg
Description

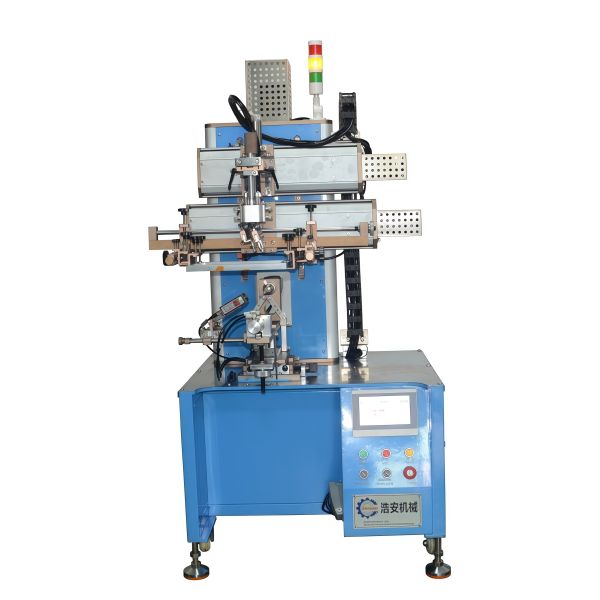

Multi Shape Semi Automatic Screen Printing Machine

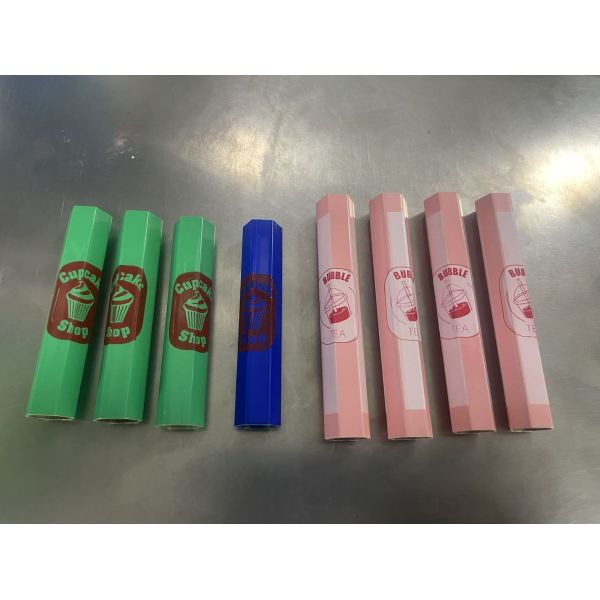

Professional screen printing equipment designed for round, oval, square, and polygonal containers made of plastic, glass, metal, and other materials.
Advanced Machine Features
This versatile printing machine incorporates intelligent control systems and precision engineering for exceptional printing quality and operational efficiency.
  • PLC (Programmable Logic Controller) with high-performance touch screen for intelligent operation control
  • Multiple servo control systems for precise movement and positioning
  • Vertical servo control system
  • Left-right screen servo control
  • Left-right squeegee movement control
  • Rotation servo control with reducer (no gear replacement required)
  • Brand-new transmission system ensuring stable performance and high synchronization
  • Strong flexibility with easy and fast fixture replacement
  • Same main body structure accommodates different products with fixture changes only
  • High precision printing for exquisite pattern reproduction
Technical Specifications
Item Specification / Dimension Brand Origin
Touch Screen 7 Inch OMRON / KMER China
PLC CTFH3 OMRON / KMER China
Rotation Drive Mode 750W Servo Motor OMRON / KMER China
Left-Right Squeegee Drive Mode 750W Servo Motor OMRON / KMER China
Left-Right Screen Drive Mode 750W Servo Motor OMRON / KMER China
Up and Down Drive 1KW Servo Motor OMRON / KMER China
Linear Guide Rail HGW15CC QYMT Taiwan, China
Electromagnetic Valve DC24V AIRTAC Japan
Air Source Pressure 4~6KG -- --
Power 220V 50-60HZ 3.5KW -- --
Printing Speed 800~1000 pcs/hour -- --
Printing Diameter Φ15-100 mm -- --
Machine Size L850 _W*900_ H*1600 mm -- --
Weight 300 kg -- --
Multi-Shape Semi Automatic Screen Printing Machine with PLC Control for 800~1000 pcs/hour Output Multi-Shape Semi Automatic Screen Printing Machine with PLC Control for 800~1000 pcs/hour Output Multi-Shape Semi Automatic Screen Printing Machine with PLC Control for 800~1000 pcs/hour Output
About Our Company
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed to meet printing requirements for various shapes and materials.
Our machinery is widely used across multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories. We export to numerous countries and regions including Europe, the United States, South Korea, the Middle East, South Africa, and Mexico, earning high trust from domestic and international customers.
We adhere to five core principles: efficiency, excellence, energy conservation, integrity, and win-win partnerships. Our strong professional R&D team customizes machinery according to specific customer requirements and continuously innovates to enhance product intelligence and efficiency. Beyond equipment provision, we offer comprehensive technical training and support services.
Multi-Shape Semi Automatic Screen Printing Machine with PLC Control for 800~1000 pcs/hour Output
Packaging and Shipping
Multi-Shape Semi Automatic Screen Printing Machine with PLC Control for 800~1000 pcs/hour Output Multi-Shape Semi Automatic Screen Printing Machine with PLC Control for 800~1000 pcs/hour Output
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
Our machines use UV-based environmentally friendly inks and imported eco-friendly ink formulations.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications for quality and environmental standards.
