MachineU > China Products > Machinery > Printing Machine > Pad Printers
Semi Automatic Pad Printing Machine Offering Adjustable Settings To Optimize Printing Speed Pressure And Alignment Accuracy
Semi Automatic Pad Printing Machine Offering Adjustable Settings To Optimize Printing Speed Pressure And Alignment Accuracy
Semi Automatic Pad Printing Machine Offering Adjustable Settings To Optimize Printing Speed Pressure And Alignment Accuracy
Semi Automatic Pad Printing Machine Offering Adjustable Settings To Optimize Printing Speed Pressure And Alignment Accuracy
Specifications
Brand Name :
HAOAN
Model Number :
HA-131P
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Plate Size :
150*150mm
Printing Area :
110*110 mm
Max Workpiece Height :
250 mm
Print Speed :
900 pcs/hour
Power :
110V/220V 50/60HZ, 40W, 6Bar
Dimension :
900*1060*1450
Printing Color :
2 Colors
Weight :
165 kg
Description

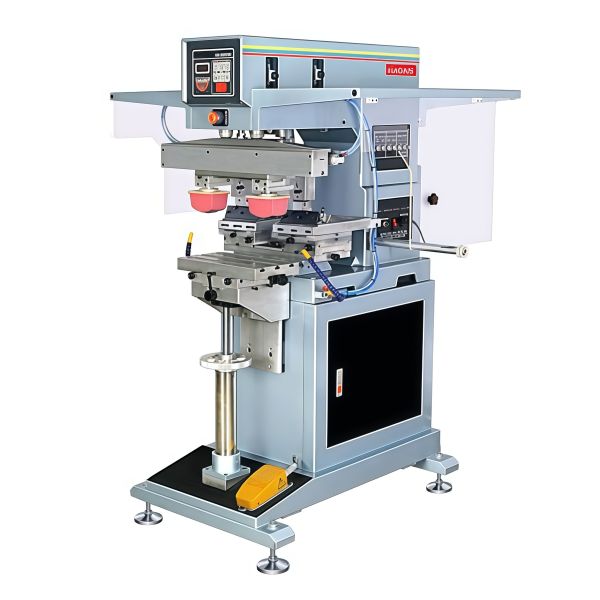

Semi Automatic Pad Printing Machine
This semi-automatic pad printing machine offers adjustable settings to optimize printing speed, pressure, and alignment accuracy for superior print quality.
Product Features
This two-color pad printing machine series features an oil basin type oil supply system and microelectronic keyboard control interface with independent adjustment of the pad's vertical stroke and speed. Equipped with an X, Y, Z axis and angle-adjustable workbench, it offers wide application range, high printing efficiency, and user-friendly operation. The machine fulfills graphic printing requirements on various surfaces including flat, curved, and irregular shapes, and is extensively applied in electronics, electrical appliances, hardware, plastic, toys, stationery, and other industries.
Construction & Craftsmanship
The frame is constructed from thickened square steel tubes, ensuring excellent structural stability. The surface is treated with baking paint for a smooth, glossy finish. The chassis is made of die-cast aluminum, and all accessories undergo CNC machining and oxidation treatment, combining sturdiness with an elegant appearance.
Oil Supply System
The oil basin type oil supply system provides large printing area, easy installation and disassembly, and flexible operation. Adjusted ink can be directly poured into the oil basin for immediate printing, simplifying the operation process and improving work efficiency while ensuring stable printing performance.
Two-Color Direct Push Shuttle Table
The two-color direct push shuttle table is processed from high-quality alloy materials and driven by precision pneumatic components. It delivers stable, reliable performance with accurate movement positioning and excellent registration printing effect, ensuring consistent two-color printing quality for various workpieces.
Technical Specifications
ItemSpecification
Plate Size (mm)150×150
Printing Area (mm)110×110
Max Print Height (mm)250
Print Speed (pcs/hour)900
Power110V or 220V, 50/60HZ, 40W, 6Bar
Dimension (mm)900×1060×1450
Weight (kg)165
Semi Automatic Pad Printing Machine Offering Adjustable Settings To Optimize Printing Speed Pressure And Alignment Accuracy Semi Automatic Pad Printing Machine Offering Adjustable Settings To Optimize Printing Speed Pressure And Alignment Accuracy
About Our Company
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment that meet printing requirements for various shapes and materials. Our machinery is widely used in cosmetics, daily necessities, food, medical supplies, automotive accessories, and other industries, and is exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning high trust from domestic and international customers.
We adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", committed to providing customers with suitable and excellent technical solutions. Our strong professional R&D team can customize machinery according to specific customer requirements and continuously innovate to make products intelligent and efficient. We provide not only excellent equipment but also professional technical training and comprehensive support services.
Semi Automatic Pad Printing Machine Offering Adjustable Settings To Optimize Printing Speed Pressure And Alignment Accuracy
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
