Semi Automatic Pad Printing Machine Suitable For Printing On Small To Medium Sized Parts Requiring High Resolution Images
Semi Automatic Pad Printing Machine Suitable For Printing On Small To Medium Sized Parts Requiring High Resolution Images
Semi Automatic Pad Printing Machine Suitable For Printing On Small To Medium Sized Parts Requiring High Resolution Images
Semi Automatic Pad Printing Machine Suitable For Printing On Small To Medium Sized Parts Requiring High Resolution Images
Specifications
Brand Name :
HAOAN
Model Number :
HA-200YX
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Plate Size (mm) :
150mm X 650mm
Printing Area (mm) :
120mm X 480mm
Printed Workpiece Height :
200mm
Printing Speed (pcs/hour) :
1000 times/hour
Power Supply Voltage :
220VAC / 1 Phase
Machine Dimension :
910mm X 930mm X 1570mm
Machine Weight (kg) :
235KG
Control System :
PLC
Description

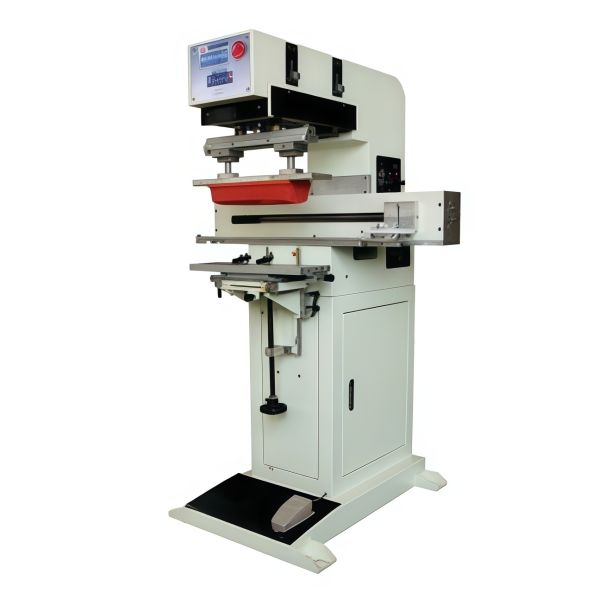

HA-200YX Semi-Automatic Pad Printing Machine
Universal printing machine designed for high-resolution printing on small to medium-sized parts across various industries including daily necessities, toys, electronics, plastics, leather, metals, glass, and food packaging.
Key Features
  • Photoelectric sensors for accurate positioning and excellent performance
  • Horizontal ink cup travel suitable for multiple workpiece printing
  • Sealed ink cup structure with 98.5% ink utilization rate
  • PLC-controlled operation for stable performance
  • Built-in 4-digit automatic counter
  • Dual ink dipping for thicker printing ink film
  • Two preset functional programs (single-cycle and full-automatic printing)
  • Adjustable delay functions and printing speed
  • Left-right movement without dropping pad to prevent ink drying
  • Precise worktable positioning with fine-tuning capabilities
  • Imported SMC pneumatic components for durable performance
  • Special shock absorption device for stable operation
  • Independently adjustable pad stroke and speed
  • Alloy die-cast aluminum body structure
Technical Specifications
Printing Color1 color
Printing Speed1000 times/hour
Ink Utilization Rate98.5%
Ink Cup Sizeф135mm
Plate Size150mm × 650mm
Printing Area120mm × 480mm
Printed Workpiece Height200mm
Power Supply220VAC / 1 Phase
Pneumatic Supply6bar
Machine Dimensions910mm × 930mm × 1570mm
Weight235KG
Air Cylinder Pressure Parameters
Cylinder Name Specification Manufacturer Pressure Type 4bar 5bar 6bar
Pad Lifting/Lowering ф63×80 SMC Lifting Pressure 112.1kgf 140.2kgf 168.2kgf
Pad Lifting/Lowering ф63×80 SMC Lowering Pressure 124.7kgf 155.9kgf 187.0kgf
Pad Front-Rear ф40×200 SMC Forward Pressure 50.3kgf 62.8kgf 75.4kgf
Pad Front-Rear ф40×200 SMC Backward Pressure 44.1kgf 55.2kgf 66.2kgf
Scraper Ф25×500 SMC - - - -
Semi Automatic Pad Printing Machine Suitable For Printing On Small To Medium Sized Parts Requiring High Resolution Images Semi Automatic Pad Printing Machine Suitable For Printing On Small To Medium Sized Parts Requiring High Resolution Images
Safety Features
Complies with latest engineering standards with emergency stop switch for immediate power cutoff and safe restart capability.
Operation Notes
  • Cut off power and air supply before moving or repairing
  • Follow proper procedures when adjusting or cleaning ink cup
  • Maintain fire prevention awareness with appropriate equipment
About Dongguan Hao'an Printing Machinery
Professional manufacturer established in 2016 specializing in automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Products exported to Europe, USA, South Korea, Middle East, South Africa, Mexico and trusted by domestic and international customers.
Core values: efficiency, excellence, energy conservation, integrity, and win-win solutions with custom technical solutions and professional support services.
Semi Automatic Pad Printing Machine Suitable For Printing On Small To Medium Sized Parts Requiring High Resolution Images
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
What inks does the machine support?
We use UV-based environmentally friendly inks, imported environmentally friendly inks
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications
