4 Color Pad Printing Machine The Oil Cup Type Semi Automatic Pad Printing Machine
4 Color Pad Printing Machine The Oil Cup Type Semi Automatic Pad Printing Machine
4 Color Pad Printing Machine The Oil Cup Type Semi Automatic Pad Printing Machine
4 Color Pad Printing Machine The Oil Cup Type Semi Automatic Pad Printing Machine
Specifications
Brand Name :
HAOAN
Model Number :
HA-117E
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Plate Size :
100×200 mm
Printing Area :
Ф60 mm
Max Workpiece Height :
180 mm
Print Speed :
1500 pcs/hour
Power :
110V/220V 50/60HZ, 40W, 6Bar
Dimension :
910×880×1400
Printing Color :
4 Colors
The Oil Cup :
Ф60 mm
Description

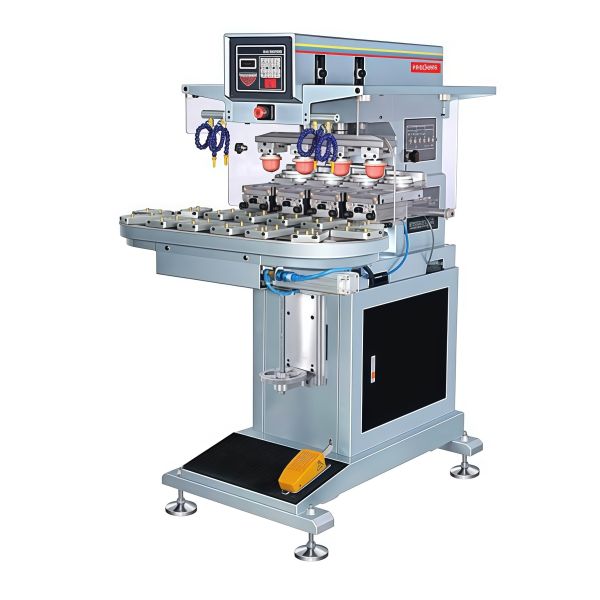

4 Color Pad Printing Machine - Oil Cup Type Semi Automatic
This semi-automatic 4-color pad printing machine features an oil cup type ink supply system and is specifically designed for multi-color printing applications requiring 3-8 colors.
Product Features
  • Oil cup type ink supply system for economical and environmentally friendly operation
  • Microelectronic keyboard control operation interface
  • Independent adjustment of pad up/down stroke and speed
  • Worktable adjustable in X, Y, Z axes and angle
  • Wide application range with high printing efficiency
  • Suitable for flat, curved, and irregular surface printing
  • Ideal for electronics, electrical appliances, hardware, plastic, toys, stationery industries
Construction & Build Quality
Heavy-duty square tube rack structure with baked paint finish for durability. Cast aluminum chassis with CNC-processed and oxidized components for elegant appearance and long service life.
Oil Cup Ink Supply System
Economical and environmentally friendly design minimizes ink waste and odor volatilization. Features imported ceramic cup rings for extended service life. Ink maintains stable concentration when stored in oil cup for extended periods.
Multi-Color Rotary Belt Worktable
Die-cast aluminum alloy construction for durability. Abrasive grade slide rails with innovative positioning design ensure accurate multi-color registration and overprinting. German-quality precision pneumatic components provide reliable power. Special pushing system and shock absorption device ensure stable operation with smooth printing, high accuracy, and maximum efficiency.
Technical Specifications
ParameterSpecification
Plate Size100×200 mm
Oil Cup SizeФ60 mm
Printing AreaФ60 mm
Maximum Workpiece Height180 mm
Printing Colors4 Colors
Print Speed1500 pcs/hour
Power Requirements110V/220V 50/60HZ, 40W, 6Bar
Dimensions910×880×1400 mm
Weight195 kg
4 Color Pad Printing Machine The Oil Cup Type Semi Automatic Pad Printing Machine 4 Color Pad Printing Machine The Oil Cup Type Semi Automatic Pad Printing Machine
Manufacturer Information
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment established in 2016. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment suitable for various shapes and materials. Our machinery is exported to Europe, United States, South Korea, Middle East, South Africa, Mexico, and other regions, serving industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories.
We adhere to core principles of efficiency, excellence, energy conservation, integrity, and win-win partnerships. Our professional R&D team provides customized technical solutions and continues to innovate for intelligent, efficient products. We offer comprehensive technical training and support services to ensure customer satisfaction.
4 Color Pad Printing Machine The Oil Cup Type Semi Automatic Pad Printing Machine
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
