High & Low Temperature Environmental Test Chamber for Automotive and Industrial Reliability Testing
High & Low Temperature Environmental Test Chamber for Automotive and Industrial Reliability Testing
High & Low Temperature Environmental Test Chamber for Automotive and Industrial Reliability Testing
High & Low Temperature Environmental Test Chamber for Automotive and Industrial Reliability Testing
High & Low Temperature Environmental Test Chamber for Automotive and Industrial Reliability Testing
High & Low Temperature Environmental Test Chamber for Automotive and Industrial Reliability Testing
Specifications
Brand Name :
HeJin
Model Number :
HJ-EMTC-003
Certification :
Third party calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiatable
Payment Terms :
T/T,L/C
Supply Ability :
10 sets per month
Delivery Time :
30 working days
Packaging Details :
Plywood
Inner Chamber Dimensions :
600 X 900 x 550mm
Outer Chamber Dimensions :
800x1880x1580mm
Outer Wall Material :
High-quality carbon steel plate, surface treated with electrostatic color electrostatic powder coating. Plate Thickness: 1.2mm
Inner Wall Material :
Imported high-grade SUS304# matte stainless steel plate. Plate thickness: 1.0mm
Door :
Single door on the left side
Power supply :
380V 50HZ
Description
High & Low Temperature Environmental Test Chamber for Automotive and Industrial Reliability Testing
Product Description

Designed for engineers who demand accuracy under extreme conditions, this High & Low Temperature Environmental Test Chamber delivers stable, repeatable temperature simulation from deep cold to high heat. Manufactured by HeJin, a direct source factory with years of experience in environmental testing equipment, this chamber helps manufacturers validate product reliability, durability, and compliance with international standards before products reach the market.

Features
  • Wide temperature range for extreme condition simulation
  • High-precision temperature control with excellent uniformity
  • Fast heating and cooling rates to shorten test cycles
  • Stable performance for long-duration reliability testing
  • Intelligent touchscreen controller with programmable profiles
International Reference Standards:

The chamber is designed in accordance with widely recognized international testing standards

  • IEC 60068-2-1
    Test A: Cold — Low temperature testing method
  • IEC 60068-2-2
    Test B: Dry Heat — High temperature exposure test
  • IEC 60068-2-14
    Test N: Temperature Change — Thermal cycling and shock
  • ISO 16750-4
    Environmental conditions and testing for electrical and electronic equipment in road vehicles
  • MIL-STD-810H
    Method 501 & 502: High and Low Temperature
  • GB/T 2423.1 / 2423.2 / 2423.22
    Chinese national standards for environmental testing
Technical Parameters
Parameter Description Specification Details
Temperature Range:-60℃~+150℃
Temperature Fluctuation:≤±0.5℃
Temperature Uniformity:≤2.0℃
Temperature Deviation:≤±2.0℃
Resolution Accuracy:0.01℃
Heating Rate:From -60℃ to +100℃, approximately 55min (no load, ambient temperature +25℃)
Cooling Rate:From +20℃ to -60℃, approximately 75min (no load, ambient temperature +25℃)
Structural Features:Integrated unit
Applications
  • Automotive components testing
  • Electronic and electrical product validation
  • New material performance evaluation
  • Aerospace and defense part testing
  • Industrial product quality control
  • R&D laboratory environmental simulation

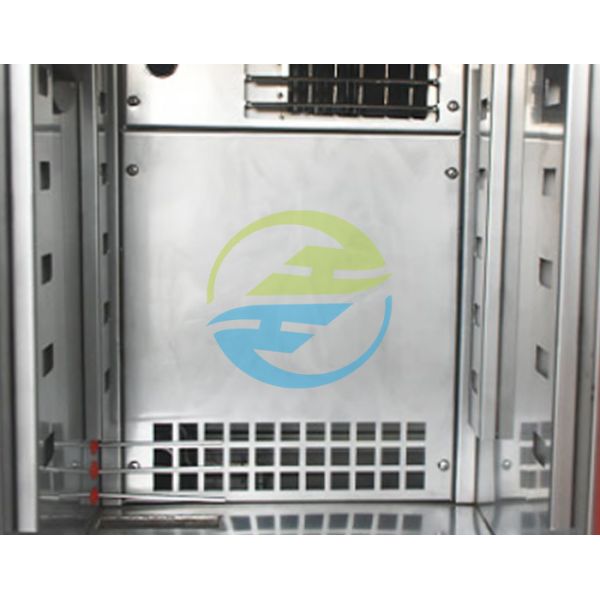

Detailed images

High & Low Temperature Environmental Test Chamber for Automotive and Industrial Reliability Testing

FAQ:
Q1: Can the temperature range be customized?
Yes. We offer customized temperature ranges and chamber sizes based on your test requirements.
Q2: Is this environmental test chamber suitable for automotive standards?
Absolutely. It complies with ISO, IEC, and automotive-related environmental testing standards.
Q3: Can the chamber run continuous long-term tests?
Yes. The chamber is designed for long-duration and cyclic testing with stable performance.
Q4: Do you provide calibration support?
Calibration guidance and support can be provided upon request.
Q5: What industries commonly use this chamber?
Automotive, electronics, materials, aerospace, research institutes, and quality inspection labs.
