High-Temperature Thermal Aging Environmental Test Chamber with Touch Screen Control for Material & Component Reliability Testing
High-Temperature Thermal Aging Environmental Test Chamber with Touch Screen Control for Material & Component Reliability Testing
High-Temperature Thermal Aging Environmental Test Chamber with Touch Screen Control for Material & Component Reliability Testing
High-Temperature Thermal Aging Environmental Test Chamber with Touch Screen Control for Material & Component Reliability Testing
Specifications
Brand Name :
HeJin
Model Number :
HJ-EMTC-005A
Certification :
Calibration Certificate(cost additional)
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiatable
Payment Terms :
L/C,T/T
Supply Ability :
5 set /month
Delivery Time :
30 working days
Packaging Details :
Plywood
Air Change Rate :
0-999 times per hour (arbitrary input)
Working Chamber Dimensions :
Inner chamber dimensions 500X500X500 (MM)
Volume :
125L
External Dimensions :
1000*800*1600 (mm)
Weight :
150KG
Power Supply Voltage :
220V 50HZ 2.2KW
Description
High-Temperature Thermal Aging Environmental Test Chamber with Touch Screen Control for Material & Component Reliability Testing
Product Description

Designed for long-term thermal endurance and aging performance evaluation, this Thermal Aging Environmental Test Chamber delivers stable high-temperature control, intuitive touch screen operation, and reliable test repeatability. Manufactured by HeJin, a professional source factory, it is widely trusted by laboratories, automotive suppliers, electronics manufacturers, and R&D centers worldwide.

Features and Benefits
  • High-Precision Temperature Control

    Advanced algorithms ensure stable temperature accuracy during long-term aging cycles.

  • Touchscreen Interface

    Intuitive operation, multi-language support, real-time curve display, and program editing capabilities.

  • Superior Temperature Uniformity

    Optimized air circulation system minimizes internal temperature deviations.

  • Continuous Long-Term Aging Capability

    Designed for uninterrupted 24/7 testing, offering stable and reliable performance.

  • Industrial-Grade Heating System

    Durable heater with rapid response and long service life.

Relevant International Standards:
  • IEC 60068-2-2

    Environmental Testing – Part 2-2: Tests – Test B: Dry Heat Test

  • IEC 60068-2-1

    Cold Test Method, Temperature Control

  • ASTM D3045

    Standard Procedure for No-Load Thermal Aging Tests of Plastics

  • ASTM D573

    Standard Method for Aging Rubber in an Air Oven

  • GB/T 2423.2

    Environmental Testing for Electrical and Electronic Products – Test B: Dry Heat Test

Technical Parameters
Test Items Specific Parameters
Temperature Control Range: Room temperature +10℃~300℃
Temperature Control Accuracy: ±0.5℃
Temperature Uniformity: ≤±2℃
Insulation Layer: 80MM (Aluminum Silicate)
Heating Device: Stainless Steel Heater
Temperature Acquisition: PT100 Thermocouple
Temperature Control System: Touchscreen Intelligent Control System
Timing Function: Automatic timing, audible and visual alarm upon completion
Temperature Control Segments: Supports 12 segmented temperature control segments for each process, totaling 10 processes
Applications & Typical Uses
  • Automotive parts aging validation
  • Electronic component reliability testing
  • Plastic, rubber, and polymer aging evaluation
  • Insulation material heat resistance testing
  • Cable, connector, and harness thermal endurance tests

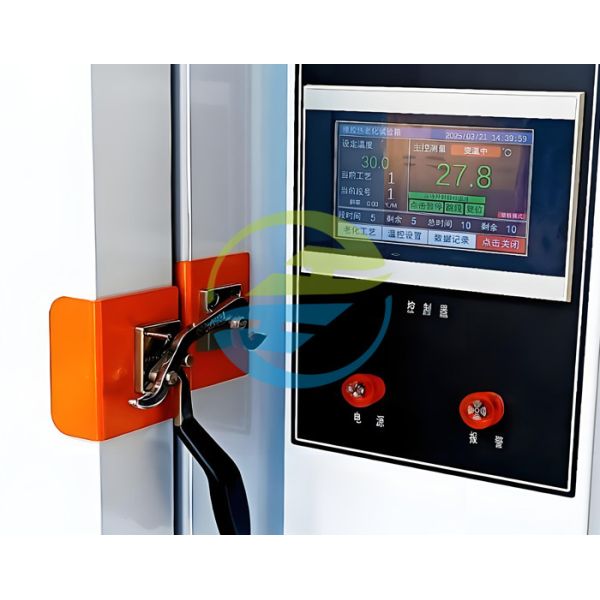

Detailed images

High-Temperature Thermal Aging Environmental Test Chamber with Touch Screen Control for Material & Component Reliability Testing

FAQ
Q1: Can this chamber run continuously for long aging tests?
Yes. It is designed for long-duration operation with stable temperature control.
Q2: Is customization available?
Absolutely. Chamber size, temperature range, shelves, and control logic can be customized.
Q3: Does it support international standards testing?
Yes. It complies with IEC, ISO, ASTM, and GB standards.
Q4: Is training provided?
We provide operation guidance, manuals, and remote support.
Q5: What industries commonly use this chamber?
Automotive, electronics, materials, laboratories, and R&D institutions.
