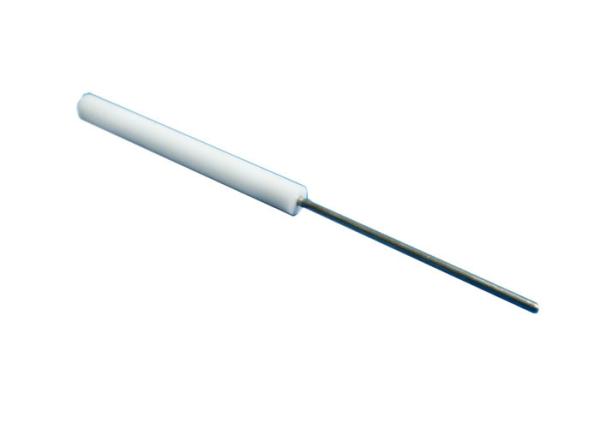

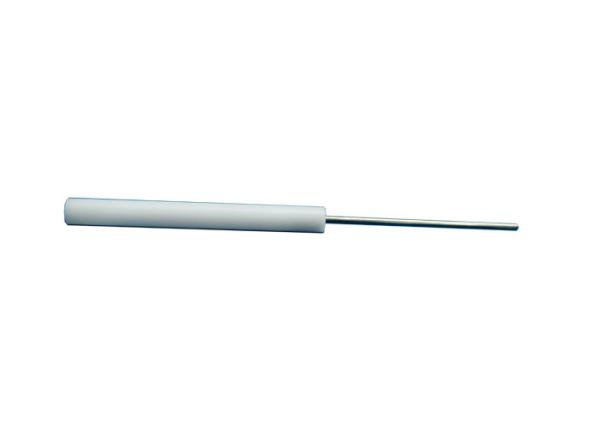

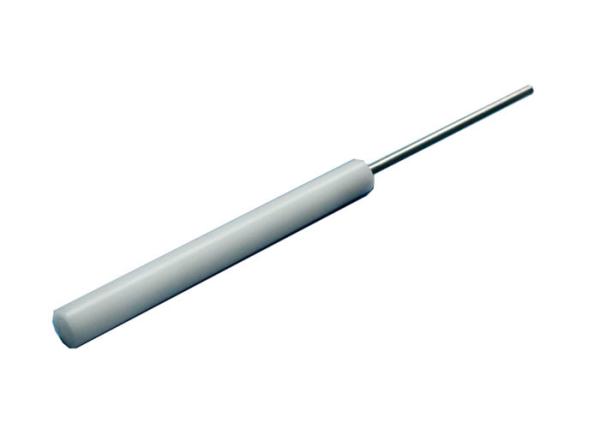

Nylon Handle 3mm Cylindrical Steel Rod With SUS304
Nylon Handle 3mm Cylindrical Steel Rod With SUS304
Nylon Handle 3mm Cylindrical Steel Rod With SUS304
Nylon Handle 3mm Cylindrical Steel Rod With SUS304
Nylon Handle 3mm Cylindrical Steel Rod With SUS304
Nylon Handle 3mm Cylindrical Steel Rod With SUS304
Specifications
Brand Name :
HJ
Model Number :
HC9929
Certification :
calibration certificate (cost additional)
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
T/T, L/C
Supply Ability :
50 set /month
Delivery Time :
7 days
Packaging Details :
Carton Box
Product name :
3mm Cylindrical Steel Rod HC9929
Test sample :
Portable socket-outlet
Function :
Plug Socket Test Equipment
Standard :
IEC 60884-1
Steel rod :
Diameter 3mm
syeel rod material :
SUS304
End of the rod :
hemispherical with a radius of 1.5 mm
handle :
Nylon
Description

Plug Socket Test Equipment 3mm Cylindrical Steel Rod With SUS304

Standard:

IEC 60884-1 2013 ‘Plugs and socket-outlets for household and similar purposes -- Part 1: General requirements’ clause 24.11

Standard description:

Barriers, between the space intended for the suspension means fixed to the mounting surface and the live parts, likely to be subjected to mechanical strain when the portable socket-outlet is suspended on a mounting surface, are tested as follows.

A cylindrical steel rod, having a diameter of 3 mm and a hemispherical end with a radius of 1.5 mm, is pushed perpendicular to the supporting mounting surface, in the most unfavourable position, for 10 s against the barrier, the force being equal to 1.5 times the maximum plug withdrawal force (as specified in 22.2, table 16).

Application:

This device is use to test mechanical strain ability of portable socket-outlet

Test sample:

Portable socket-outlet

Parameters:

Steel rod Diameter 3mm, SUS304
End of the rod hemispherical end with a radius of 1,5 mm
Handle Nylon, the end of the handle with M6 threaded hole to match push pull meter

Nylon Handle 3mm Cylindrical Steel Rod With SUS304
