IEC 60811-1-4 Low Temperature Impact Test Apparatus (100 mm Drop Height)

Product Overview

The IEC 60811-1-4 Low Temperature Impact Test Apparatus is designed to evaluate the impact resistance of electrical cables, insulation, and sheath materials under low-temperature conditions. Compliant with IEC 60811-1-4 standard requirements, this device is widely used by cable manufacturers, third-party testing laboratories, and quality control departments to verify material performance in cold environments.

When used together with a low-temperature chamber, the apparatus delivers reliable, repeatable impact testing results, ensuring products meet international safety and durability standards.

Applicable Standards

• IEC 60811-1-4 – Common test methods for insulating and sheathing materials of electric cables – Low temperature test
• IEC 60884-1 – Plugs and socket-outlets for household and similar purposes (relevant clauses)

Features

• Designed in strict accordance with IEC 60811-1-4 requirements
• Used inside a low-temperature chamber for accurate environmental simulation
• Impact device placed on a 40 mm thick rubber pad during testing
• Simple, durable manual mechanical release structure
• Available in single-station or three-station configurations for higher testing efficiency

Parameters:

Table1 For power cables for fixed installation, the mass of the hammer for testing the samples shall be as given in the following table:

Table 2 For flexible cables and cords and telecommunication cables, the mass of the hammer for testing the sample shall be as follows:

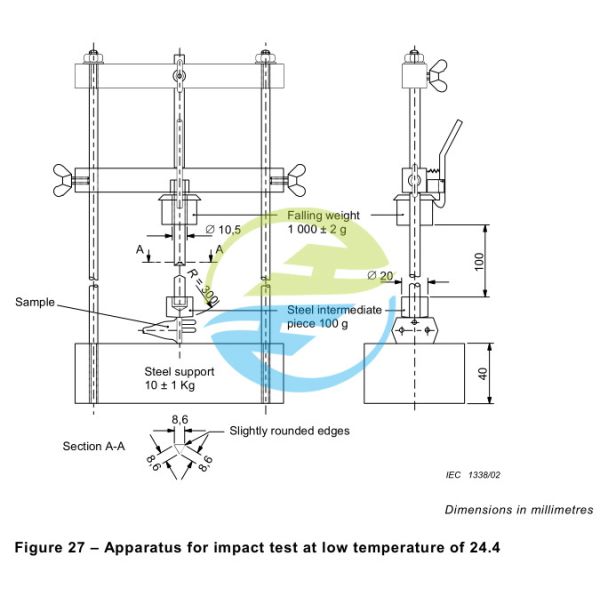

Product Structure Diagram:

Why Choose This Low Temperature Impact Test Apparatus?

With a robust mechanical design, strict standard compliance, and flexible configuration options, this IEC 60811-1-4 impact tester provides accurate, repeatable, and internationally recognized test results, helping manufacturers ensure product reliability and regulatory compliance before market entry.
