High Yield Rate Air Coil Winding Machine With Automatic Tension Control System
High Yield Rate Air Coil Winding Machine With Automatic Tension Control System
High Yield Rate Air Coil Winding Machine With Automatic Tension Control System
High Yield Rate Air Coil Winding Machine With Automatic Tension Control System
High Yield Rate Air Coil Winding Machine With Automatic Tension Control System
High Yield Rate Air Coil Winding Machine With Automatic Tension Control System
Specifications
Brand Name :
XINGTE
Model Number :
XT-601SD
Place of Origin :
CHINA
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
MOQ :
1
Price :
Negotiate
Packaging Details :
Wooden case
Delivery Time :
15-25 days
Payment Terms :
LC,T/T
Supply Ability :
1500PCS/MONTH
Wire Diameter Range :
0.06mm - 0.8mm
yield rate :
＞90%
Control System :
PLC Touch Screen
Power Supply :
220V/50Hz
Winding Direction :
Clockwise/ Counterclockwise
coil curing method :
Preheat The Fixture To Dry
Product Type :
Automatic Winding Machine
Tension Control :
Automatic Tension Control System
Name :
Air Coil Winding Machine
Description
High Yield Rate Air Coil Winding Machine With Automatic Tension Control System
Product Overview

The XT-601SD is specifically created for winding large-diameter wire and coils. This stand-alone system offers complete automation in winding self-supporting air coils with the use of thermoplastic adhesive coated wire. The wire is heated by a hot air supply during the winding process and the turns are secured together by the adhesive. Once finished, the coil is taken out of the tooling and automatically ejected from the machine.

Key Features
  • High-precision ball screw guide enables flawless layer winding without slit groove wire guide
  • Automatically checks for thermal expansion-induced changes in tooling flange position
  • Specially-designed software for winding both even and uneven numbers of turns per layer
  • Intermittent wire feed mechanism for reliable perfect layer coil winding
  • New type controller and pul-servo tension for exceptional performance and stability
  • Ideal for air coil and bobbinless winding applications
Technical Specifications
Product Name Air Coil Winding Machine
Control System PLC Touch Screen
Machine Dimensions 1180×800×1700mm
Operate Rate >85%
Application RFID Coils, Laser Heads, Voice Coils, Magnet Coils, Sensor Coils, Vibrator Coils, Pancake Motor Coils
Product Type Automatic Winding Machine
Yield Rate >90%
Coil Diameter Range 10mm-200mm
Safety Features Emergency Stop Button, Overload Protection
Tension Control Automatic Tension Control System
Wire Diameter Range 0.06mm - 0.8mm
Applications
  • RFID coils
  • Laser heads
  • Voice coils
  • Magnet coils
  • Sensor coils
  • Vibrator coils
  • Pancake motor coils

This versatile machine offers superior performance and durability, making it essential for industries including RFID technology, laser technology, audio technology, and motor technology.

Customization Options
Brand Name XINGTE
Model Number XT-601SD
Place of Origin CHINA
Certification CE, IOS9001, KC, ISO45001, ISO24001
Minimum Order Quantity 1
Packaging Details Wooden case
Delivery Time 15-25 days
Payment Terms LC, T/T
Supply Ability 1500PCS/MONTH
Lead Wire Length 50-70mm
Winding Direction Clockwise/Counterclockwise

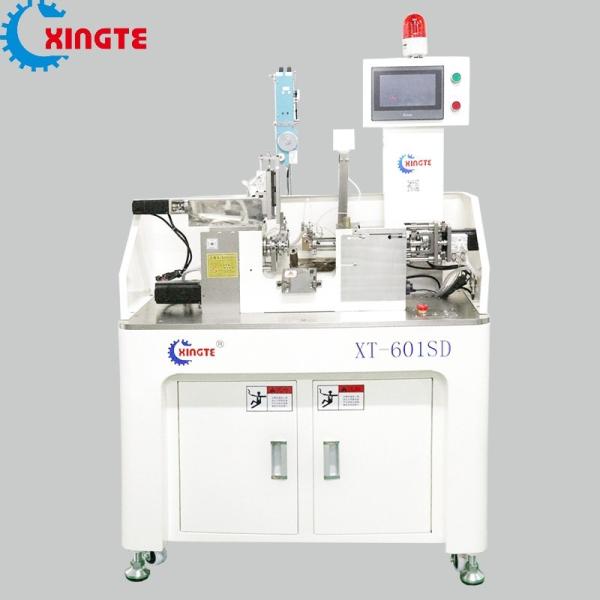

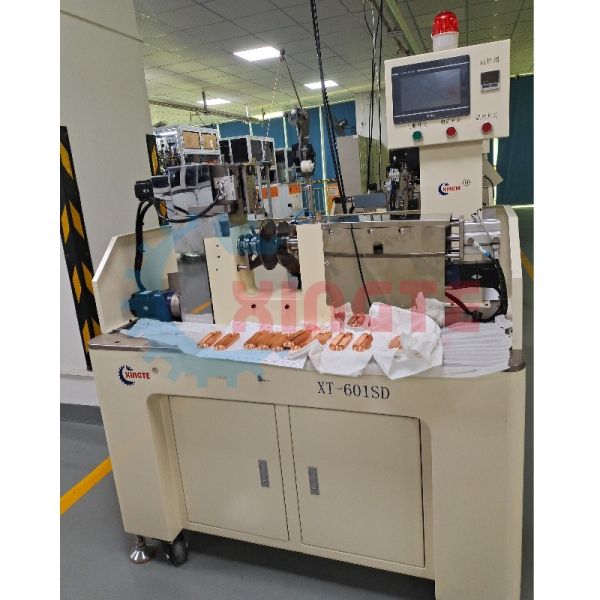

Machine Images
High Yield Rate Air Coil Winding Machine With Automatic Tension Control System
High Yield Rate Air Coil Winding Machine With Automatic Tension Control System

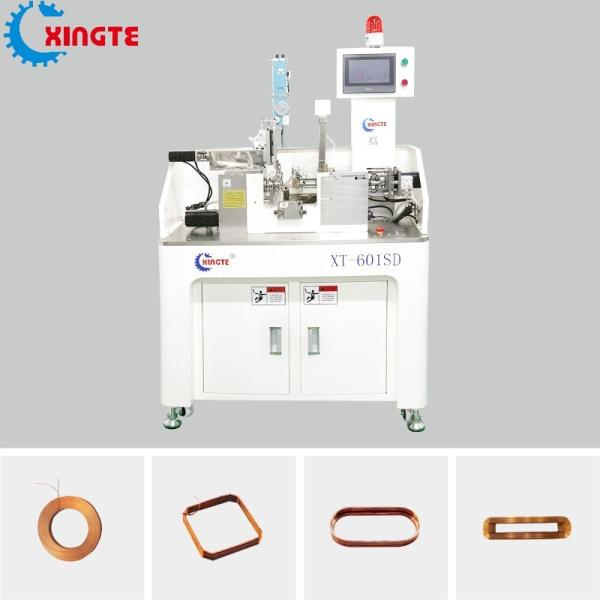

Coil Samples
