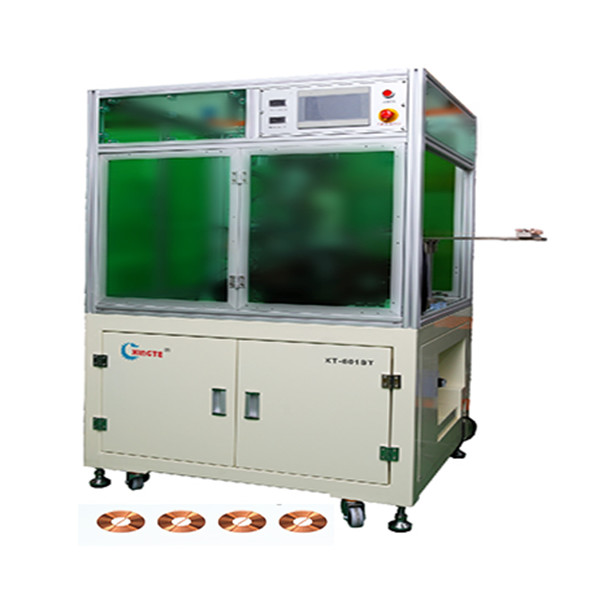

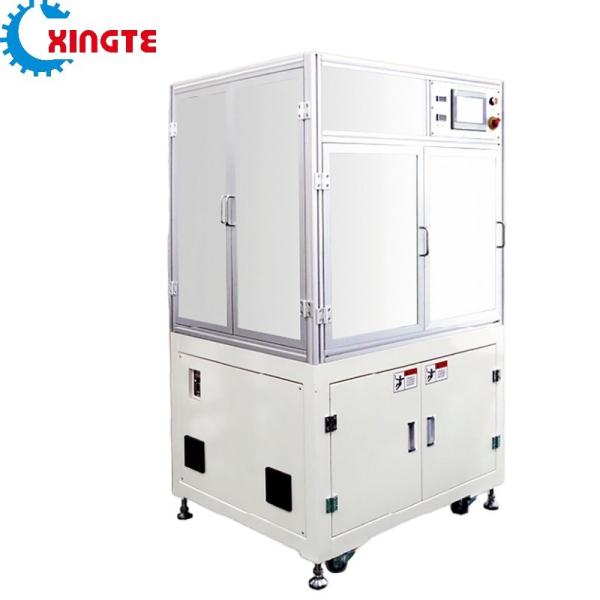

Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine
Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine
Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine
Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine
Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine
Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine
Specifications
Brand Name :
XINGTE
Model Number :
XT-601ST
Place of Origin :
CHINA
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
MOQ :
1
Price :
Negotiate
Packaging Details :
Wooden case
Delivery Time :
15-35 days
Payment Terms :
LC/TT
Supply Ability :
2000PCS/MONTH
coil curing method :
Preheat The Fixture To Dry
coil Diameter Range :
10mm-60mm
Tension Control :
Automatic Tension Control System
Spindle rotating Speed :
Adjustable, Up To 4800 Rpm
Control System :
PLC Control System
Application :
Coil Winding For Wireless Charger
Safety Features :
Emergency Stop Button, Overload Protection
Winding Direction :
Clockwise/ Counterclockwise
Description
Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine
Product Overview

This single-axis automatic winding machine is independently developed and produced by XINGTE for wireless charging transmitter and receiver coil winding. Integrating mechanical, electronic, and pneumatic technologies, this advanced equipment reliably automates coil product winding and ranks among the most efficient models in the industry.

Key Features
  • User-friendly English touchscreen control system interface
  • Specialty treated metal materials for extended lifespan
  • Precision mechanical movement driven by imported servo motors and high-precision ball screws
  • Safety-first design ensuring secure operation environment
  • 24-hour continuous operation capability with stable, efficient production
  • Strong compatibility for integration into fully automated production lines and unmanned workshops
Technical Specifications
Model XT-601ST
Wire Diameter 0.03-0.3mm
Coil Stack Height ≤ 5mm
Coil Outer Diameter ≤ 50mm (customizable)
Yield Rate 99.8%
Lead Wire Length 20-50mm (customizable)
Power Supply AC220V, 50/60Hz
Capacity 120 pcs/H
Power 4Kw
Air Supply Min. 0.6MPa
Machine Dimensions 1150(L) x 1400(W) x 1,820(H) mm
Machine Weight Approx. 420kgs
Safety Features Emergency Stop Button, Overload Protection
Coil Curing Method Preheat The Fixture To Dry
Applications

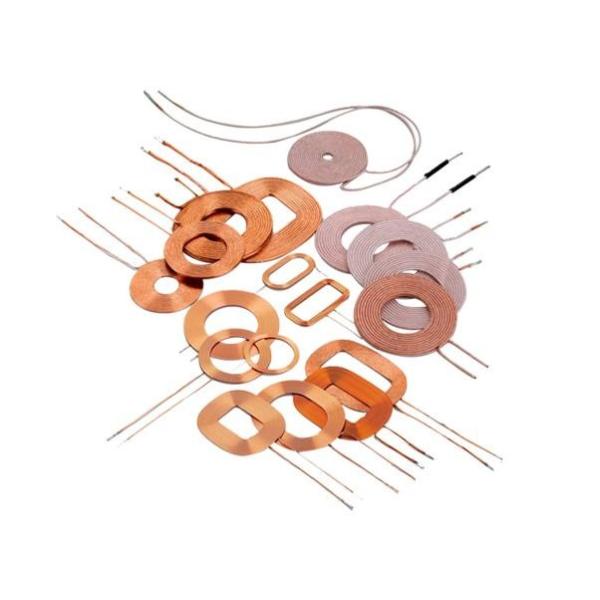

Wireless charging technology continues to expand across various industries, utilizing electromagnetic induction for wire-free energy transfer. This machine produces both receiver coils (designed with multiple strands for efficiency) and transmitter coils (varying in size and shape) that work together to create seamless wireless charging experiences for diverse applications and devices.

Customization Options

Our XT-601ST Air Coil Winding Machine is tailored to meet your specific production requirements with comprehensive customization services.

Key Benefits
  • Efficient and precise winding for wireless charger transmitter coils
  • Wide wire diameter range: 0.025mm - 0.5mm
  • Adjustable spindle speed up to 4800 RPM
  • Automatic tension control system for consistent winding
  • CE, IOS9001, KC, ISO45001, ISO24001 certified for quality assurance
Customization Services
  • Adjustable power supply (220V/50Hz or 110V/60Hz)
  • Customized packaging options including wooden cases
  • Flexible delivery time: 15-35 days
  • Various payment terms: LC/TT
  • Adjustable minimum order quantity based on production needs
Factory & Product Gallery
Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine Clockwise / Counterclockwise Air Coil Winding Machine 120pcs/H Single Axis Automatic Winding Machine
Frequently Asked Questions
What is the brand name of this product?
The brand name of this product is XINGTE.
What is the model number of this product?
The model number of this product is XT-601ST.
Where is this product manufactured?
This product is manufactured in China.
What certifications does this product have?
This product has CE, IOS9001, KC, ISO45001, and ISO24001 certifications.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 1.
What is the price of this product?
The price of this product can be negotiated.
How is this product packaged?
This product is packaged in wooden cases.
How long is the delivery time for this product?
The delivery time for this product is 15-35 days.
What are the payment terms for this product?
The payment terms for this product are LC/TT.
What is the supply ability of this product?
The supply ability of this product is 2000PCS/MONTH.
