Specifications
Brand Name :
XINGTE
Model Number :
XT-818
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
2.000 sets per year
Delivery Time :
30-40 working days
Packaging Details :
Wooden case
Name :
Speaker Coil Winding Machine
Application :
1511,1206,1506,1609 Speaker Voice Coil
Function :
Speaker Voice Coil winding,air coil winding,special-shape coil winding
Weight :
600KGS
Dimensions :
880(W)×1900(L)×1800(H)mm
After-sales service provided :
engineers available to service machinery overseas, Online Video technical support
Voltage :
220v, 50/60HZ
Warranty :
12 Monthes
speed :
1000pcs/H
power :
3KW
Description

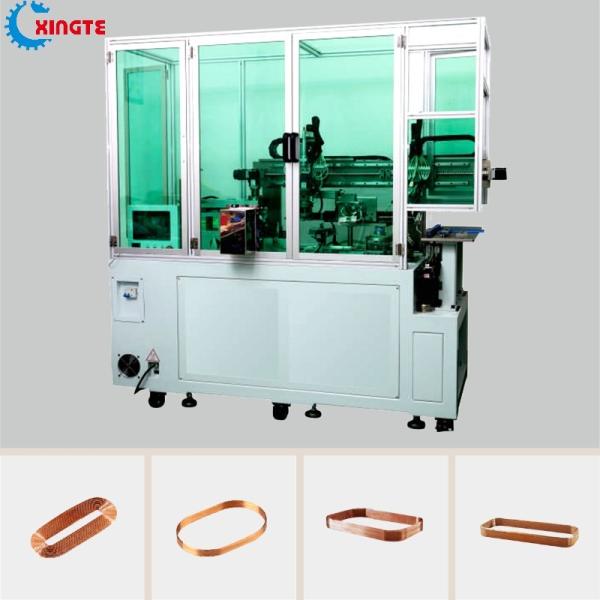

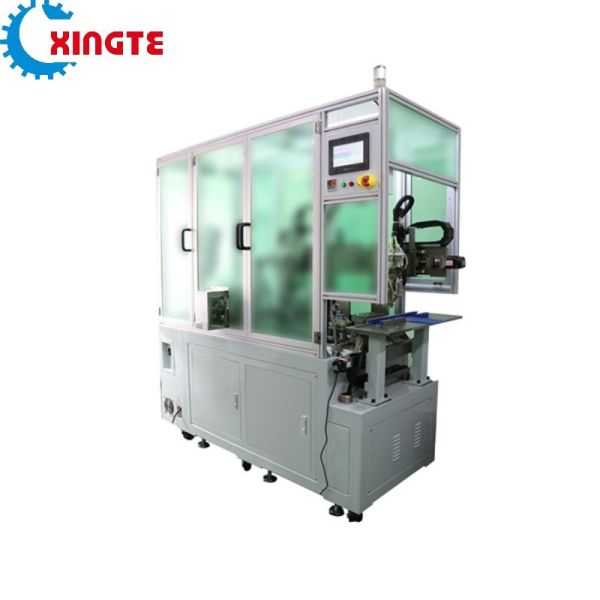

XT-818 Fully Automatic Speaker Coil Winding Machine
Product Overview

XT-818 Fully Automatic Speaker Coil Winding Machine with lead wire control for 1511, 1206, 1506, and 1609 speaker voice coils. Production capacity: 1000pcs/H fully automatic operation.

1511 1206 1506 1609 Speaker Coil Winding Machine 1000pcs/H Fully Automatic
Product Features
  • Advanced high-precision motion controller for linear and arc interpolation positioning
  • Long lifespan, programmable operation for high efficiency and precision
  • Minimal deformation for improved product quality
  • Custom coil design and winding capabilities based on customer requirements
Equipment Overview

This fully automatic high-precision winding machine is specially designed for controllable coil leads in fully automatic production lines. It can control coil leads from any angle and position, featuring automatic winding, wire feeding, stretching, flipping, lead wire bending, fixture placement, and waste material collection.

Application Areas

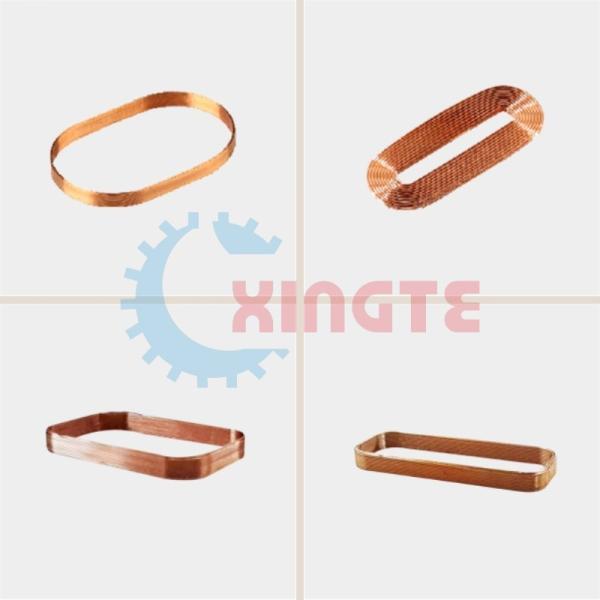

1511, 1206, 1506, and 1609 speaker voice coils, air core coils, and special-shaped coils suitable for fully automatic assembly and supporting production lines.

Product Parameters
Parameter Specification
Model XT-818
Machine Dimension 880(W)×1900(L)×1800(H)mm
Gross Weight 600KG
Power Supply AC220V, 50/60Hz
Power 3KW
Air Pressure 0.4Mpa～0.7Mpa
Spindle Direction Clockwise/counterclockwise
Controller Touch screen
Number of Spindles 18 spindles
Winding Speed ≤4000rpm
Wire Size 0.018-0.2(mm)
Coil Stack Height ≤8mm
Coil Outer Diameter ≤30mm (customizable)
Lead Wire Position From any angle
Lead Wire Length 40-80mm
Wire Cutting Mode Custom blade cutting
Tensioner Servo tensioner
Production Capacity 300-550pcs/H
About XINGTE
Experience

Established in 2007 with over 17 years R&D experience in coil winding technology

Plant Size

Headquartered in Shenzhen with factory area exceeding 30,000 square meters

Service

Over 230 technical service and after-sales staff with worldwide service points

Patents & Certificates

120+ patents and related certificates obtained

Production Capacity

Over 600 experienced employees ensuring production capacity and fast delivery

Technology

Over 130 experienced engineers ensuring strong R&D and customization capabilities

XINGTE Production Lines
  1. Motor stator, rotor, and related coil winding machines
  2. Transformer-related product coil winding machines
  3. Voice coil-related product winding machines
  4. Inductor coil winding machines
  5. Customized fully automatic lines for motor, speaker, and transformer production
