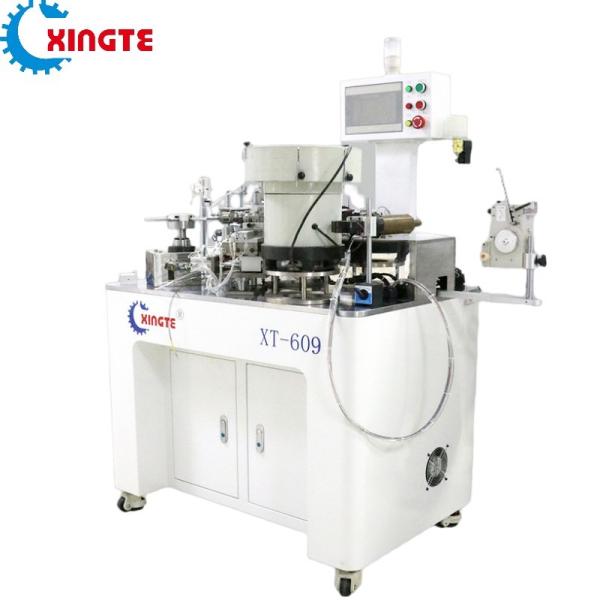

220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding
220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding
220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding
220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding
220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding
220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding
Specifications
Brand Name :
XINGTE
Model Number :
XT-609
Certification :
CE / IOS 9001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
2.000 sets per year
Delivery Time :
30-40 working days
Packaging Details :
Wooden case
Application :
Skeleton Voice Coils ,speaker coil
Name :
Voice Coil Winding Machine
Weight :
460KGS
Dimensions :
780*14600*1560mm
After-sales service provided :
engineers available to service machinery overseas, Online Video technical support
Voltage :
220v 50/60HZ
Warranty :
12 Monthes
Function :
Skeleton Voice Coils Winding
speed :
2000pcs/H
Description
220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding
Product Overview

Specially designed machine for skeleton voice coils winding with advanced automation capabilities.

Applications Area

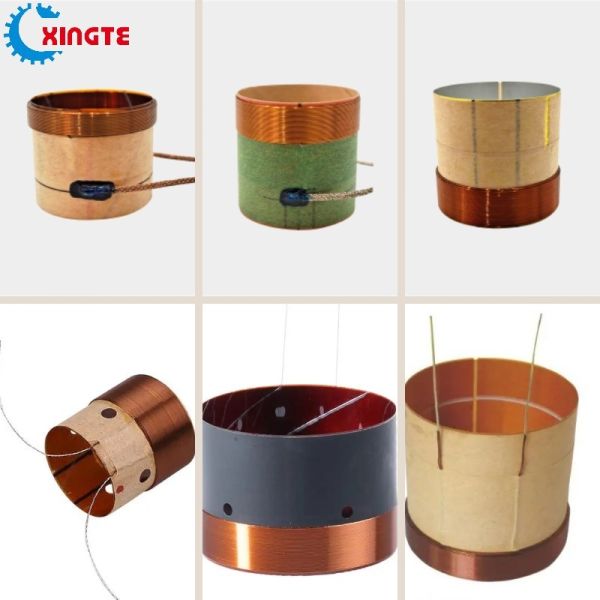

  • Paper tube and rubber tube-based speaker voice coils
  • Cavity speaker voice coils
  • Bluetooth audio components
Product Features
  • Specialized model for skeleton voice coils
  • Capable of winding both alcohol-soluble and hot-air enameled wires
  • Can be used for air-core coil winding when bobbin part is turned off
  • Flying fork winding with six-station rotary trimming for enhanced efficiency
  • Industry-leading production capacity up to 2000 pieces per hour (approximately 30 turns)
  • Improves product quality while saving 3-4 labor costs
  • Hot air wound products eliminate baking requirements
Technical Specifications
Parameter Specification
Model Number XT-609
Wire Diameter 0.04-0.2mm (customizable)
Coil Stack Height ≤5mm
Coil Outer Diameter ≤15mm
Yield Rate >98%
Utilization Rate >85%
Winding Speed 4800rpm
Tensioner Servo tensioner
Power 2 KW
Power Supply AC 220V, 50/60Hz
Air Pressure >0.6Mpa
Machine Dimensions 780×14600×1560mm
Gross Weight 460KGS
What Is a Voice Coil?

The coil provides a motive force onto the cone due to the magnetic field created by the current passing through it. This term is also adopted for linear motor voice coils. An example is those motors used to move the heads within hard disk drives that produce a larger force and move a longer displacement despite working on the same principle.

About XINGTE
Experience
Established in 2007, with more than 17 years R&D experience in coil winding technology
Plant Size
Headquartered in Shenzhen with factory area exceeding 30,000 square meters
Production Capacity
Over 600 experienced employees ensuring production capacity and fast delivery
Technology
More than 130 experienced engineers ensuring strong R&D and customization capabilities
Service
Over 230 technical service and after-sales staff with worldwide service points
Patents & Certificates
120+ patents and related certificates obtained

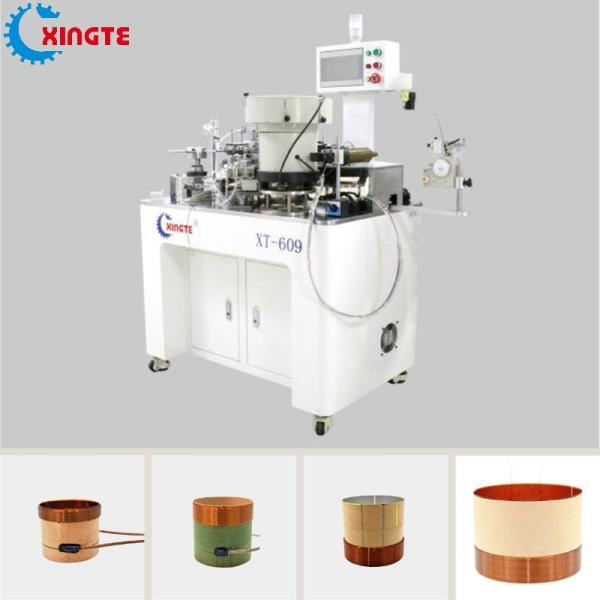

Visual Documentation
220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding 220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding 220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding 220V 50/60HZ Voice Coil Winding Machine For Skeleton Voice Coils Winding
Applications of Voice Coils

The medical industry is a leading example regarding the adoption of voice coil actuators. Medical equipment and devices have gone through a notable reduction in size and mass over the past years so that they can be as portable as ever. This progression in reducing the overall weight and size demanded that each part be as small and lightweight as possible. The voice coil actuators are suitable for this trend and are considered reliable, highly efficient, and precise. Typical examples of medical devices that use voice coils are ventilators and pumps for dosing and metering of patients.
