Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Specifications
Brand Name :
XINGTE
Model Number :
XT-606
Place of Origin :
CHINA
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
MOQ :
1
Price :
Negotiate
Packaging Details :
Wooden case
Delivery Time :
15-35 days
Payment Terms :
LC,T/T
Supply Ability :
2000PCS/MONTH
Model :
XT-606
Winding Direction :
Clockwise/ Counterclockwise
wire diameter :
0.02-0.45 Mm( Can Customize)
Control System :
PLC
production Capacity :
3000pcs/hour
Power Supply :
220V/50Hz
Winding Accuracy :
±0.02mm
Spindle rotate speed :
4800rpm
Description
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Product Overview

This advanced voice coil winding machine is specifically engineered for winding air voice coils and handles both alcohol-soluble and hot air enamelled wires. The XT-606 model features manual feeding capability and can also wind general skeleton voice coils with exceptional precision and efficiency.

Key Features
Advanced Control System

English touch screen interface for international usability

Premium Construction

High-quality metal materials with special processing for durability

Precision Engineering

Advanced servo motors and high-precision ball screws in all mechanical motion parts

24-Hour Operation

Designed for stable, efficient production around the clock

Automation Ready

Compatible with fully automated production lines and unmanned workshops

High Efficiency

Spindle flying fork winding with six-station rotating wire trimming system

Technical Specifications
Parameter Specification
Product Name Speaker Voice Coil Winding Machine
Product Type Automatic
Model XT-606
Wire Diameter 0.02-0.15mm (customizable to 0.02-0.45mm)
Winding Direction Clockwise/Counterclockwise
Coil Stack Height 10mm
Winding Accuracy ±0.02mm
Control System PLC
Spindle Rotate Speed 4800rpm
Production Capacity 3000pcs/hour
Power Supply 220V/50Hz
Applications
  • Headphone voice diaphragms
  • In-ear headphone voice diaphragms
  • True wireless Bluetooth headset voice diaphragms
  • Security speaker voice diaphragms
  • Receiver voice diaphragms

Voice diaphragms are combined with voice coils to enhance performance in headphones, speakers, and microphones across various applications.

Customization & Ordering

Brand: XINGTE

Model: XT-606

Origin: CHINA

Certifications: CE, ISO9001, KC, ISO45001, ISO24001

Minimum Order: 1 unit

Packaging: Wooden case

Delivery Time: 15-35 days

Payment Terms: LC, T/T

Monthly Capacity: 2000 units

We offer comprehensive customization services to meet your specific requirements, including coil stack height, winding direction, and wire diameter specifications.

Our Manufacturing Facility
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Machine Gallery
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h

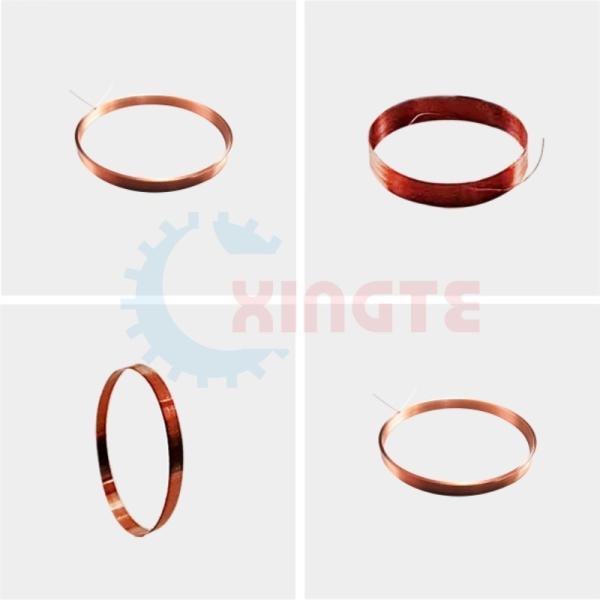

Voice Coil Samples
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Our Partners
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
Order Process
Clockwise / Counter Clockwise Voice Coil Winding Machine 220V 50Hz 3000pcs/h
