Automatic Dual-station Precision Stator Winding Machine
Automatic Dual-station Precision Stator Winding Machine
Automatic Dual-station Precision Stator Winding Machine
Automatic Dual-station Precision Stator Winding Machine
Automatic Dual-station Precision Stator Winding Machine
Automatic Dual-station Precision Stator Winding Machine
Automatic Dual-station Precision Stator Winding Machine
Automatic Dual-station Precision Stator Winding Machine
Specifications
Model Number :
XT-02D
Voltage :
380v 50/60HZ
Payment Terms :
L/C,T/T,D/A,D/P
Application :
BLDC motor stator winding machine
Dimensions :
(L)800X(W)1800X（H）1820mm
Weight :
450KGS
Winding speed :
Max.1200 RPM
MOQ :
1
Delivery Time :
30-40 working days
After-sales service provided :
engineers available to service machinery overseas, Online Video technical support
Price :
negotiable
Function :
Motor Stator Winding
Supply Ability :
2.000 sets per year
Name :
Automatic Dual-station Precision Stator Winding Machine
Place of Origin :
CHINA
winding method :
flying winding
Packaging Details :
Wooden case
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
Brand Name :
XINGTE
Warranty :
12 Month
Description

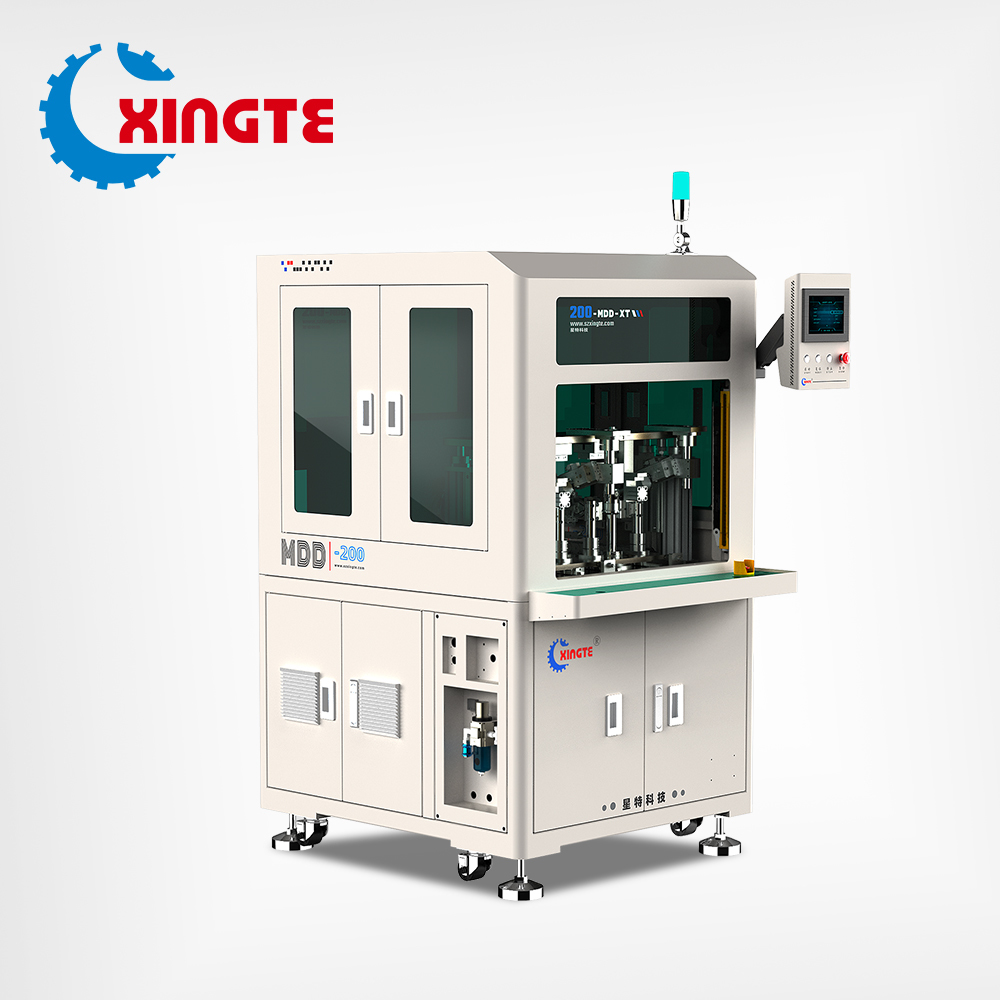

Automatic Dual-station Precision Stator Winding Machine
High-efficiency, high-precision specialized equipment featuring simultaneous dual-station operation with integrated wire winding and precision arrangement technologies.
Equipment Overview
This advanced winding machine employs coordinated rotation between the winding mechanism and wire arrangement system to achieve rapid coil winding with precise arrangement and layer alignment. The servo screw and cam mechanism adjusts the wire arrangement block opening, working in conjunction with precision movement of the wire arrangement servo shaft and interpolation linkage of the winding shaft to complete precision wire arrangement across different stator layers.
Key Features
  • Precision winding of external stators with high speed and automation
  • One-to-one precision winding capability
  • Zero pinhole precision winding technology
  • Editable servo system programming
  • Optional wire cutting function with automatic winding and cutting
Compatible Applications
Ideal for motors used in automotive industry, household appliances, industrial equipment, drones, lawnmowers, and industrial fans.
Technical Specifications
Model Number XT-FX02-JM
Wire Diameter 0.1 - Ø1.5mm
Stator Outer Diameter Max 135mm
Stator Inner Diameter 10mm
Stator Stack Thickness 150mm
Winding Method Flying Winding
Winding Stations 2 Stations
Power 5.5KW
Power Supply AC380V, 50/60Hz
Air Pressure 0.6-0.7Mpa
Winding Speed 1200Rpm
Machine Dimensions (L)800 × (W)1800 × (H)1820mm
Gross Weight 450KGS
About XINGTE
Experience Established in 2011 with over 15 years R&D experience in coil winding technology
Plant Size Headquarters in Shenzhen with factory area exceeding 36,000 square meters
Service Over 300 technical service and after-sales staff with worldwide service points
Patents & Certificates 140+ patents and related certifications obtained
Production Capacity More than 1,200 experienced employees ensuring production capacity and fast delivery
Technology Over 400 experienced engineers ensuring strong R&D and customization capabilities
XINGTE Product Range
  1. Motor stator, rotor, and related coil winding machines
  2. Transformer-related product coil winding machines
  3. Voice coil-related product winding machines
  4. Inductor coil winding machines
  5. Customized fully automatic lines for motor, speaker, and transformer production
