Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Specifications
Brand Name :
XINGTE
Model Number :
XT-DGRXJ
Place of Origin :
China
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
MOQ :
1
Price :
Negotiate
Packaging Details :
Wooden case
Delivery Time :
15-35 days
Payment Terms :
LC,T/T
Supply Ability :
2000PCS/MONTH
air supply :
0.6Mpa
Power :
7.5kw
number of wire :
32 Wires (Simultaneous Winding)
operate rate :
＞85%
power supply :
380v, 50Hz
Machine dimensions :
1380(L)x1360(W)x1900(H)mm
Air Pressure :
Minimum 0.6MPa
Stator inner diameter :
Min 30mm
Description
Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Product Overview

The Xingte XT-DGRXJ multi-strand motor stator winding machine is a specialized device used in electric motor manufacturing. It efficiently winds multiple wire strands onto a stator core, forming motor coils with a high yield rate exceeding 95%.

Key benefits include simultaneous winding of multiple coils, significantly reducing winding time compared to single-strand methods. This machine enhances mechanical strength and durability by distributing current capacity across wires, minimizing overheating risks and ensuring reliable motor performance.

Key Features

Advanced Control System: Multiple sets of servo linkages wind multiple wires into stator slots with assistance from a 10-inch LCD touchscreen interface in English. Stores multiple sets of winding data simultaneously.

Fully Automated Process: Single station automatically winds wire, hooks, changes slots, passes wire, and taps. Precision ball screws and linear guide hooks ensure neat thread arrangement and consistent winding.

Multi-Strand Tension System: Provides stable tension throughout the winding process with simple electronic tension adjustment for different winding wire types.

High-Performance Servo Motors: Latest servo motor technology with NC control simultaneously controlling 4 axes, adaptable to specification changes with higher slot fill rate and enhanced winding precision.

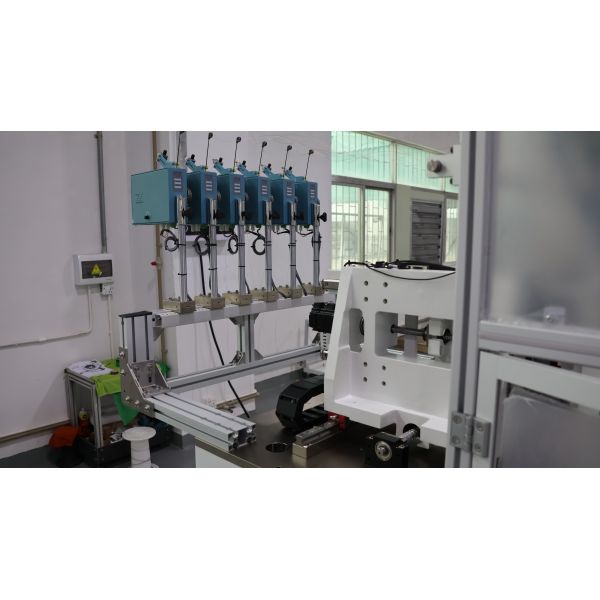

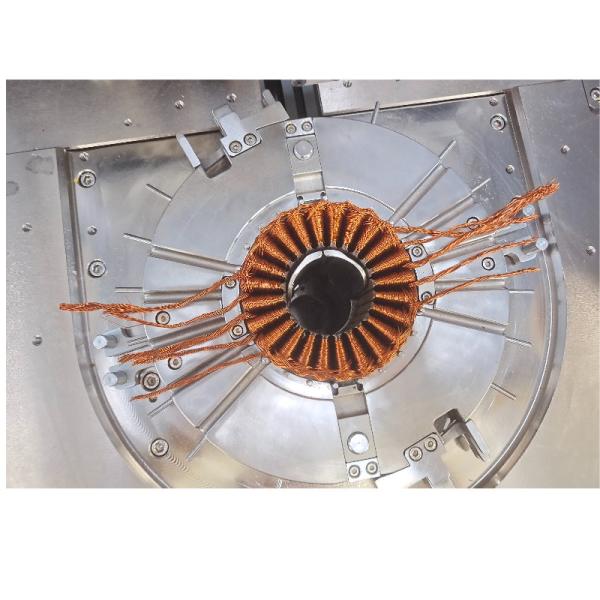

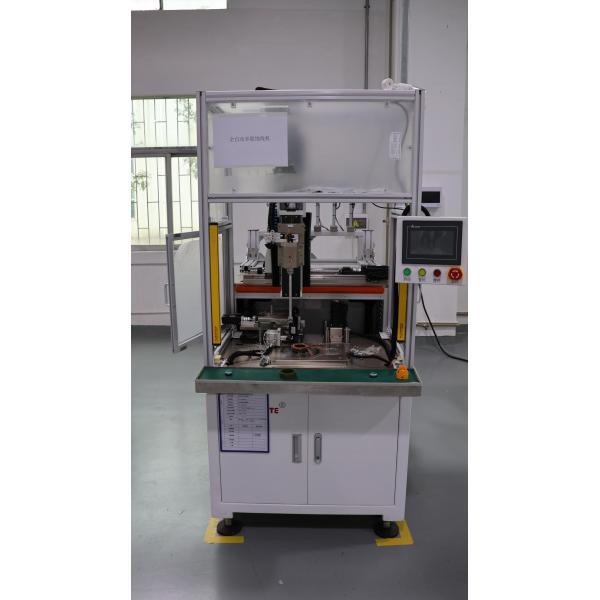

Machine Images
Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Technical Specifications
Parameter Specification
Product Name Multi-strand coil winding machine
Model Multistrand Type Automatic Stator Winding Machine
Weight 450 kg
Air Pressure Minimum 0.6 MPa
Stator Stack Height Max 150 mm
Yield Rate >95%
Power Supply 380V, 50Hz
Machine Dimensions 1380(L) x 1360(W) x 1900(H) mm
Operate Rate >85%
Wire Diameter Max 0.8 mm
Stator Inner Diameter Min 30 mm
Number of Stator Slots 3-48 Slots
Application Areas

Our products are utilized in a variety of industries, including:

  • Automotive motors
  • IOT/AI motors
  • Industrial control
  • Toy motor stator winding
  • Generator coils
Multi Strand 0.1-0.5mm Stator Coil Winding Machine 7.5kw High Performance
Customization & Specifications
Parameter Details
Brand Name XINGTE
Model Number XT-DGRXJ
Place of Origin China
Certification CE, IOS9001, KC, ISO45001, ISO24001
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden case
Delivery Time 15-35 days
Payment Terms LC, T/T
Supply Ability 2000 PCS/MONTH
Stator Outer Diameter Max 250 mm
Power 7.5 kW
Safety Features Emergency Stop Button, Overload Protection

Key Features: Automatic Multistrand Stator Winding Machine, Multistrand Stator Winding Machine, Multi-strand Stator Winding Machine
