Fully Automatic Multi-Strand Needle Winding Machine
Product Overview
Designed for multi-strand wire winding applications in automotive, IOT/AI, industrial control, and UAV motors.
Equipment Overview

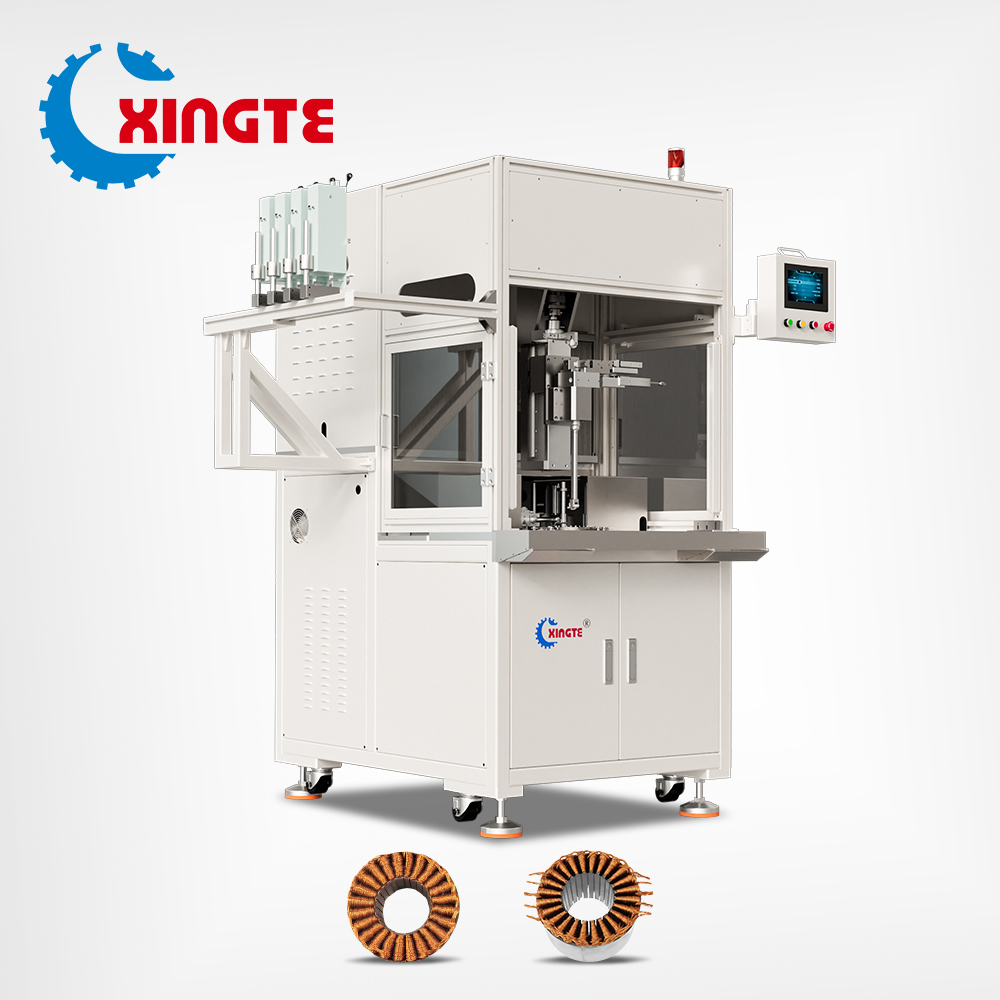

This advanced machine utilizes sophisticated control technology to achieve fully automatic winding and wire termination for inner rotors of small motors.
Featuring high-performance servo motors and a compact design, the NC numerical control system synchronously drives four axes to accommodate diverse product specifications with exceptional flexibility.
Specifically engineered for multi-strand wire winding, it enhances slot fill factor and winding precision while simplifying commissioning through independent servo-controlled tension management for multiple wire strands.
Key Features
  • High operational uptime
  • Neat and organized wire arrangement
  • Consistently uniform winding turns
Technical Specifications
Parameter Specification
Core Size Max outer diameter 250 mm
Applicable Wire Diameter Max 0.8 mm
Working Stations 1 station
Max Spindle Speed 20 rpm (depends on wire)
Spindle Positioning Accuracy 0.03°
Movement Positioning Accuracy 0.015 mm
Controlled Axes 10 axes
Servo Motors 4 sets
Loading & Unloading Manual
Program Storage 100 sets
Controller Touch screen motion controller
Power Supply 3-phase 380V±10% 50Hz
Power Consumption 7.5 KW
Air Pressure 0.5-0.7 MPa
Machine Dimensions (L)1385 * (W)1362 * (H)1923 mm
Machine Weight 360 KG
