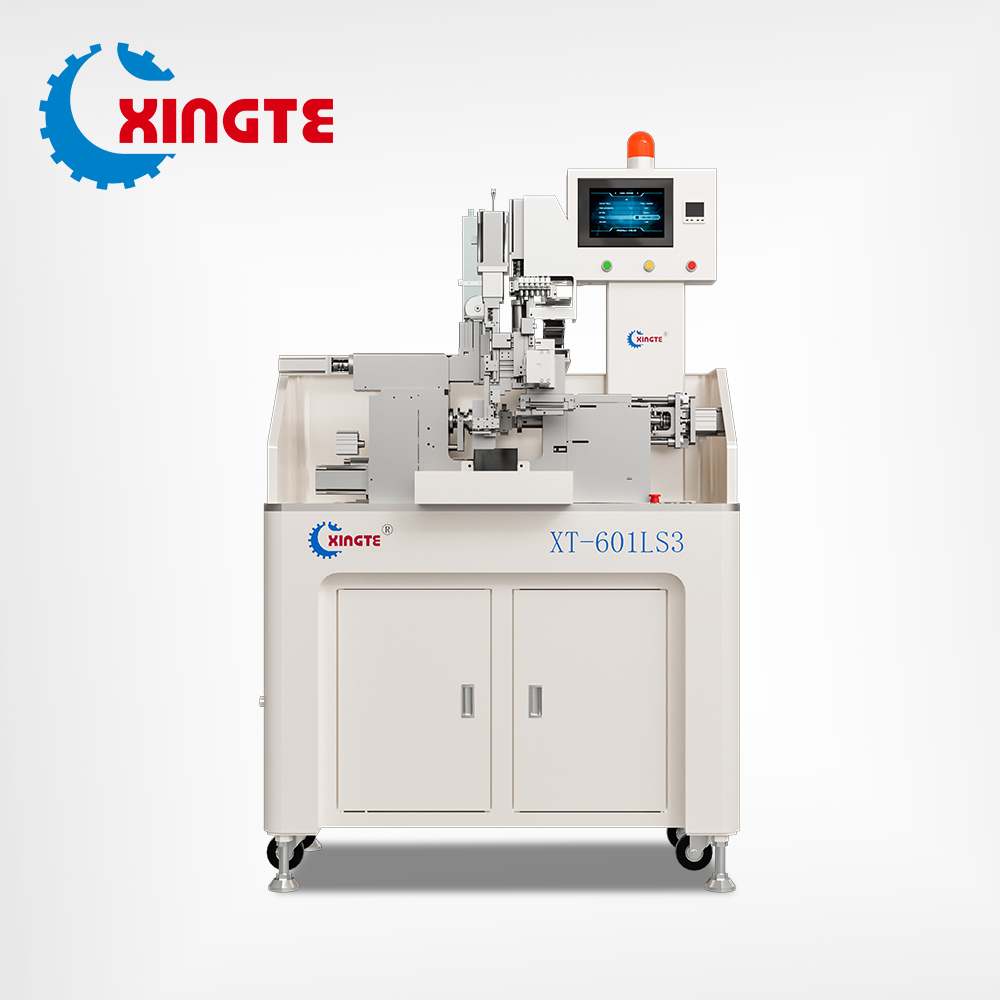

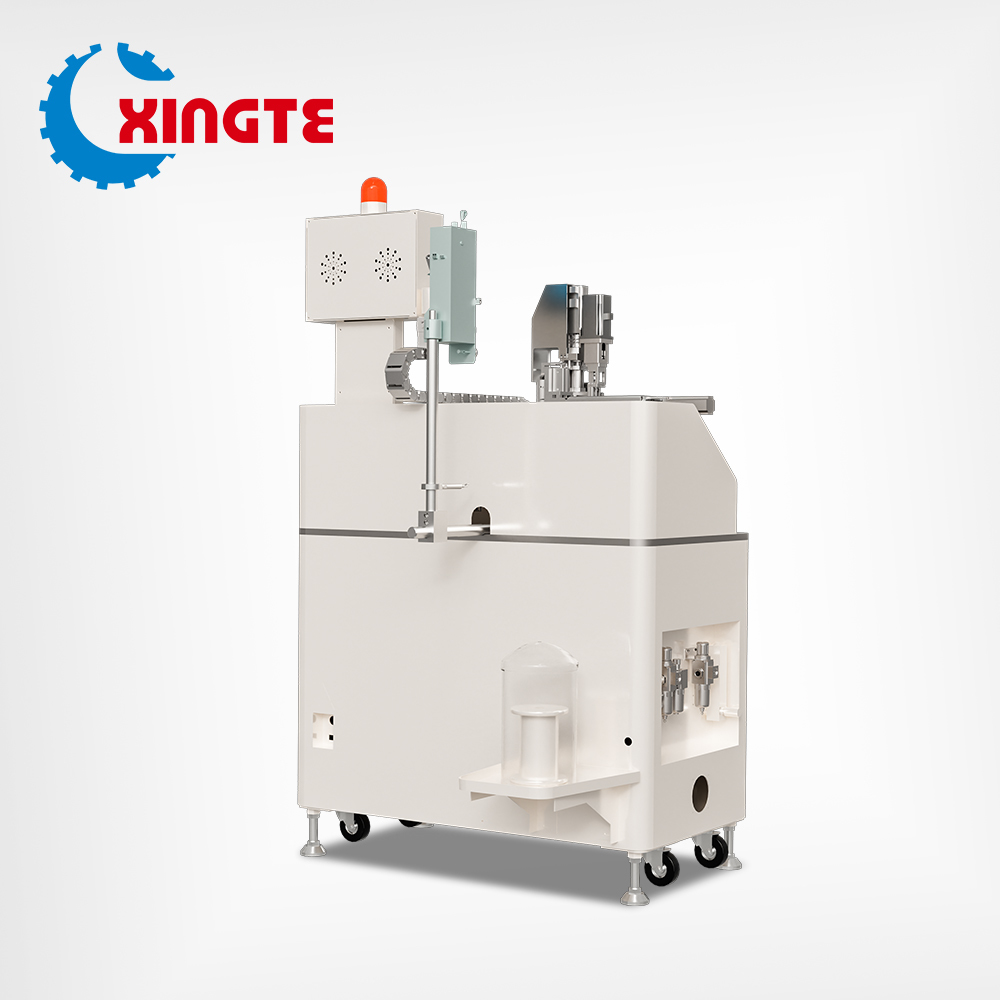

Fully Automatic Single-Axis Voice Coil Stretching, Shaping and Winding Machine
Product Overview
This high-efficiency winding machine is specially designed for square, racetrack, and other special-shaped voice coils, dedicated to winding stretched special-shaped air-core coils.
It breaks overseas market monopoly and reduces equipment procurement costs. Featuring high efficiency, large output, and 24-hour non-stop production, it effectively cuts labor costs, meets automated production demands, and gains positive market feedback.
Applications
Suitable for various air-core coils, including:
  • 1511, 1206, 1506, 1609, 1115, 1420 square speaker voice coils
  • Racetrack speaker voice coils
  • Various special-shaped voice coils
Equipment Features
• Equipped with Chinese touch screen, easy to operate; operators can be proficient after two days of training
• Optimized mechanical design delivers higher efficiency than imported equipment
• Metal components are specially treated for wear & corrosion resistance and long service life
• Moving parts adopt imported servo motors, high-precision ball screws, and imported bearings
• One operator can run multiple machines to save labor costs
• Strong compatibility enables seamless connection with automatic production lines
• Support one-key startup/shutdown; stretching function can be activated freely
• Can be upgraded to single-spindle automatic voice coil winding & stretching machine XT-601LS3
Main Process Flow
  • Automatic winding & wire arranging
  • Automatic wire cutting
  • Automatic stretching
  • Automatic shaping
  • Automatic demoulding
Technical Parameters
Parameter Specification
Product Size φ1-20mm (Customization available upon evaluation)
Wire Diameter 0.015-0.12mm (Customization available upon evaluation)
Output 150-400 Pcs/h (Subject to drawing requirements)
Yield Rate ≥98%
Number of Spindles 1
Max. Spindle Speed ≤4000 rpm
Max Tension Range 5-200 g
Loading Method Manual wire threading
Control System Xingte self-developed motion control card
Controlled Axes 6-axis servo motors
Power Supply 220V
Power Consumption ≈2.5 KW
Compressed Air Pressure ≈0.45 MPa
Program Storage 99999 sets
Machine Dimension (L)980 * (W)500 * (H)1500 mm
Machine Weight Approx. 290 KG
