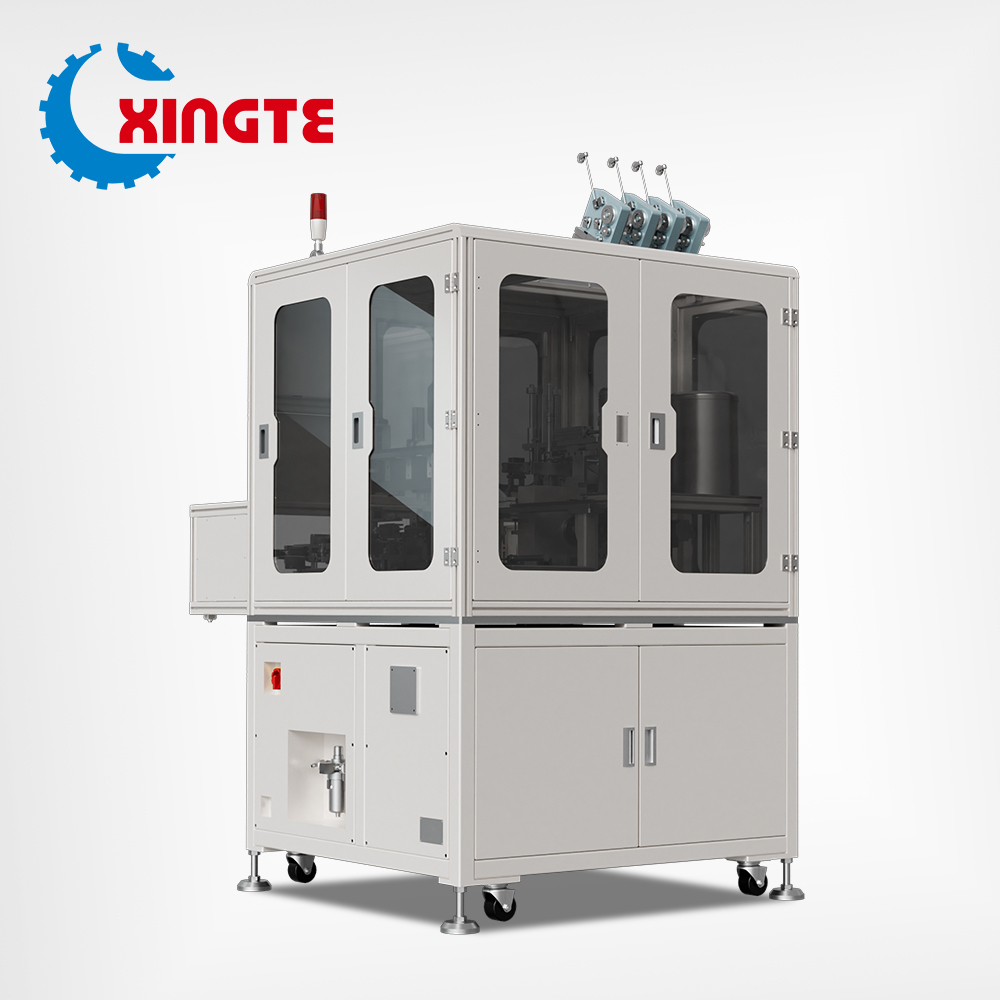

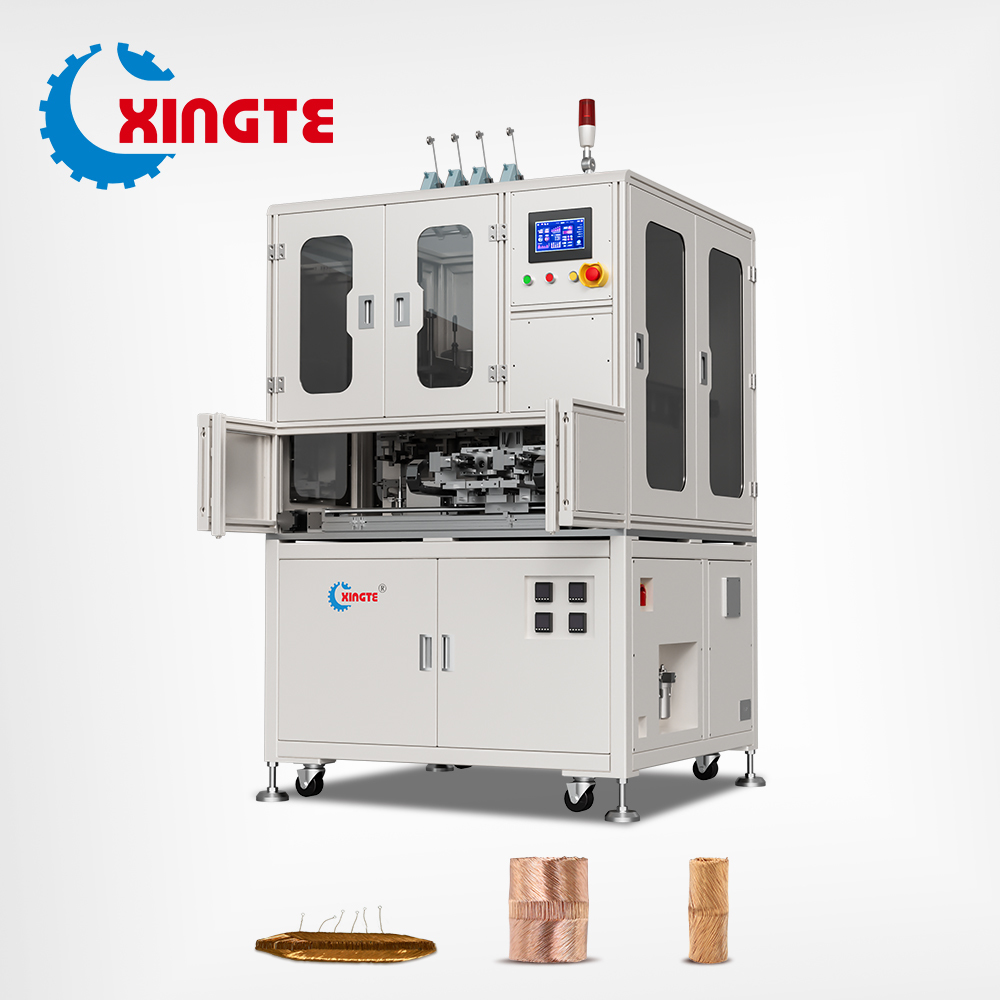

Hollow Cup Motor Winding Machine
Product Overview
This specialized equipment is designed for winding coreless coils, supporting brushed and brushless coreless motors as well as joint motors.
Equipment Description
This automated machine handles the complete winding process for coreless motor coils in sizes ranging from 6mm to 32mm. The system performs winding, tap leading, wire flattening, hot pressing, and unloading operations automatically, producing finished flat heated coils without manual intervention.
Key Features
  • Significantly reduces labor requirements and improves production efficiency
  • Minimizes defective rates caused by human error
Application Modules
  • Tension unit
  • Winding unit
  • Wire arranging unit
  • Wire flattening unit
  • Hot pressing unit
  • Unloading unit
Technical Specifications
Parameter Specification
Core size Coreless
Applicable wire diameter Φ0.08~Φ0.3mm
Working stations 2 stations
Maximum spindle speed 6000 rpm (depends on wire)
Spindle positioning accuracy 0.05°
Movement positioning accuracy 0.015 mm
Controlled axes 6
Loading & unloading Automatic
Program storage 50 sets
Power supply 220V±10% 50Hz
Power consumption 1.2 KW
Air pressure ≈0.5-0.7 MPa
Machine dimensions (L)1200 * (W)1100 * (H)1900 mm
Machine weight Approx. 400 KG
