Fully Automatic DP Assembly Production Line
Application

Automatic DP assembly for multimedia speakers.

Equipment Overview

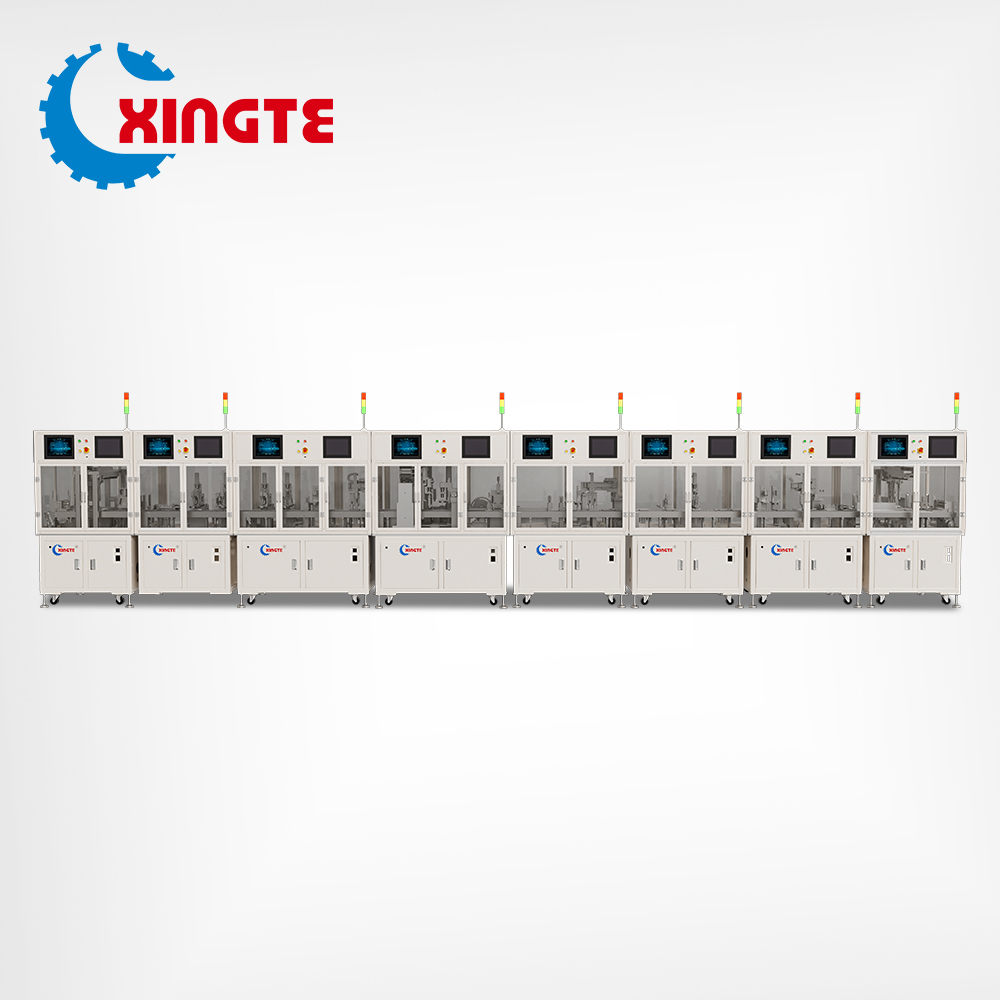

This production line is used for automatic DP assembly of multimedia speakers. The DP assembly process consists of assembling diaphragm, middle sticker and front cover. The automatic machine improves assembly efficiency, precision and yield rate.

Equipment Features
  • Modular design facilitates process adjustment and supports multiple product models
  • Delivers high throughput and reduces labor & production costs
  • Base plate and gantry frame of middle sticker and front cover stations are made of marble
  • Equipped with linear motors and CCD flying capture positioning assembly system
  • Runs at high speed with large output and guaranteed assembly precision
Main Process Flow
  1. Steel ring diaphragm feeding
  2. Diaphragm shaping
  3. Laser center hole cutting
  4. Diaphragm dispensing
  5. Glue AOI inspection
  6. Middle sticker assembly
  7. Pressurized UV curing
  8. AOI concentricity inspection
  9. Diaphragm dispensing
  10. Glue AOI inspection
  11. Front cover assembly
  12. Pressurized UV curing
  13. Product flipping
  14. Laser contour cutting
  15. AOI concentricity inspection
  16. Defect sorting
  17. Finished product tray loading
Technical Parameters
Parameter Value
Output 2000 Pcs/H
Good Product Rate ≥97%
Utilization Rate ≥90%
Total Power 25 KW
Overall Dimension (L)9500 * (W)1100 * (H)1900 mm
Machine Weight 4000 KG
