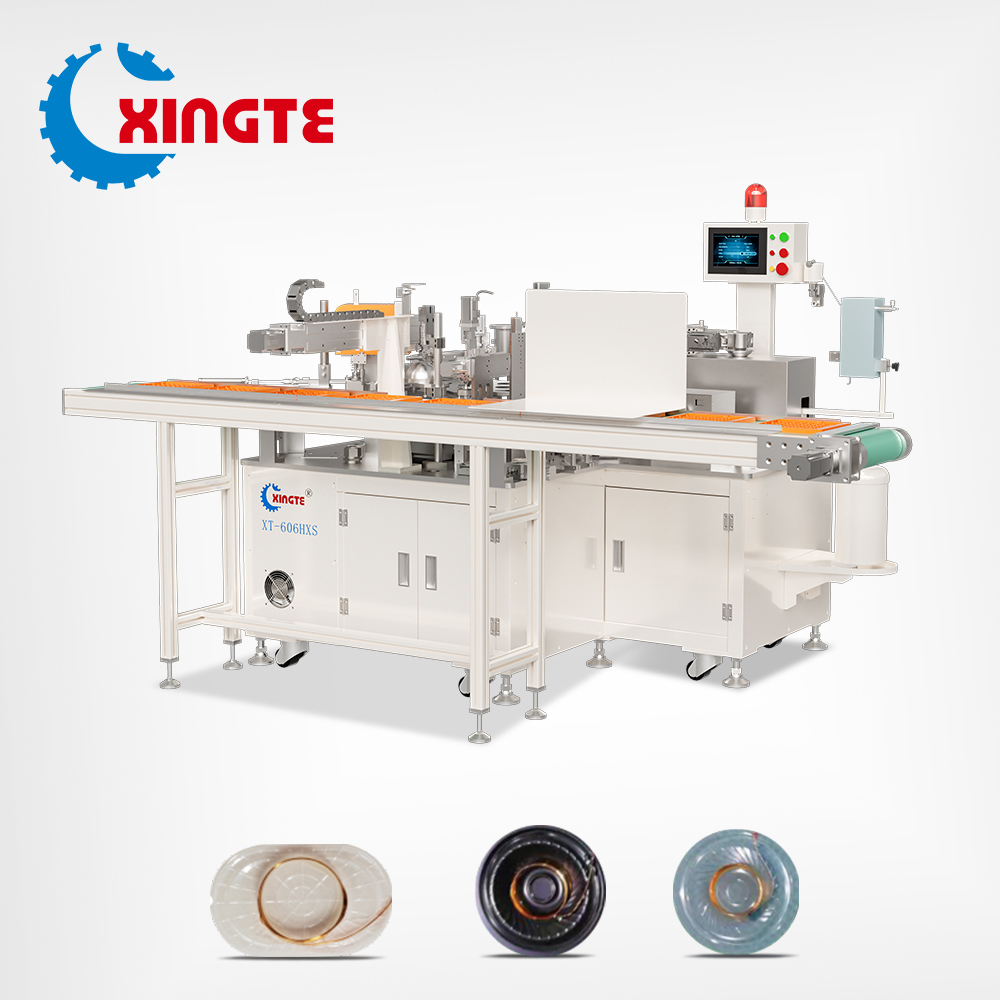

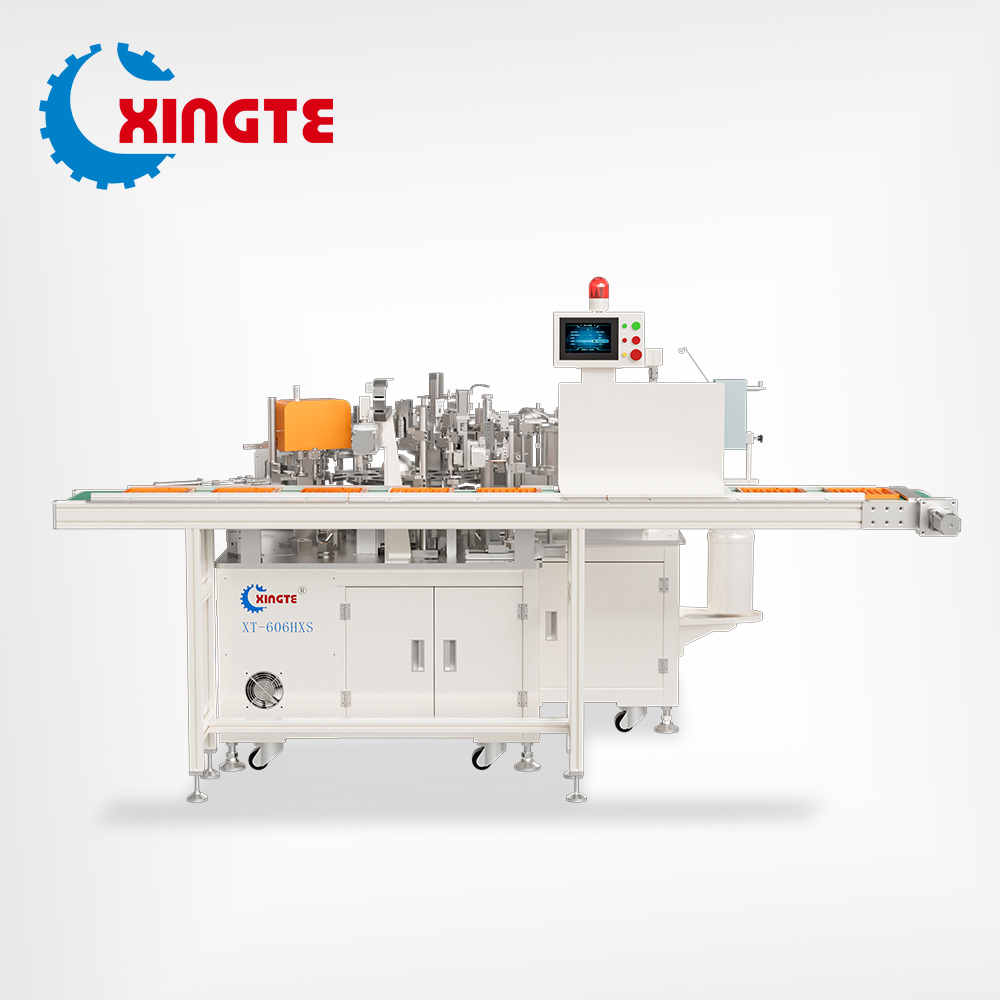

Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Fully Automatic Sound Membrane Marking Machine with 1400 Pcs/h Output, ＞98% Yield Rate and UV Glue Marking for Voice Coil-Diaphragm Assembly
Specifications
Packaging Details :
Wooden case
Model Number :
606HXS
MOQ :
1
Supply Ability :
2.000 sets per year
Price :
negotiable
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
Brand Name :
XINGTE
Place of Origin :
CHINA
Description
Fully Automatic Sound Membrane Marking Integrated Machine
Key Advantages
  • Labor Saving: Reduces workforce requirement to 6-7 operators
  • Suitable for voice coil winding, voice coil & diaphragm assembly and gluing line marking of copper ring diaphragms
Equipment Overview

This independently developed integrated machine realizes voice coil-diaphragm assembly and line marking. It automatically completes voice coil-diaphragm combination, copper wire folding and diaphragm marking & gluing processes. With outstanding efficiency, it ranks among the highest-performance models in the industry.

Equipment Features

Various glues can be used for marking. UV glue is mandatory for fixing the edge of diaphragm.

Main Process Flow
Wire passing through tensioner → Winding via spindle & indexing plate with hot air blowing synchronously → Wire cutting → Diaphragm pickup and loading onto fixture → 3D gluing (center glue station) → Voice coil pickup, placement & wire folding on diaphragm → 3D gluing (marking glue station) → Discharging to assembly line
Technical Parameters
Parameter Specification
Output 1400 Pcs/h
Yield Rate >98%
Operation Rate Above 90%
Power Supply 220V±10% 50Hz
Air Pressure >0.6 MPa
Total Power 6 KW
Overall Dimension (L)1500 * (W)1200 * (H)1560 mm
